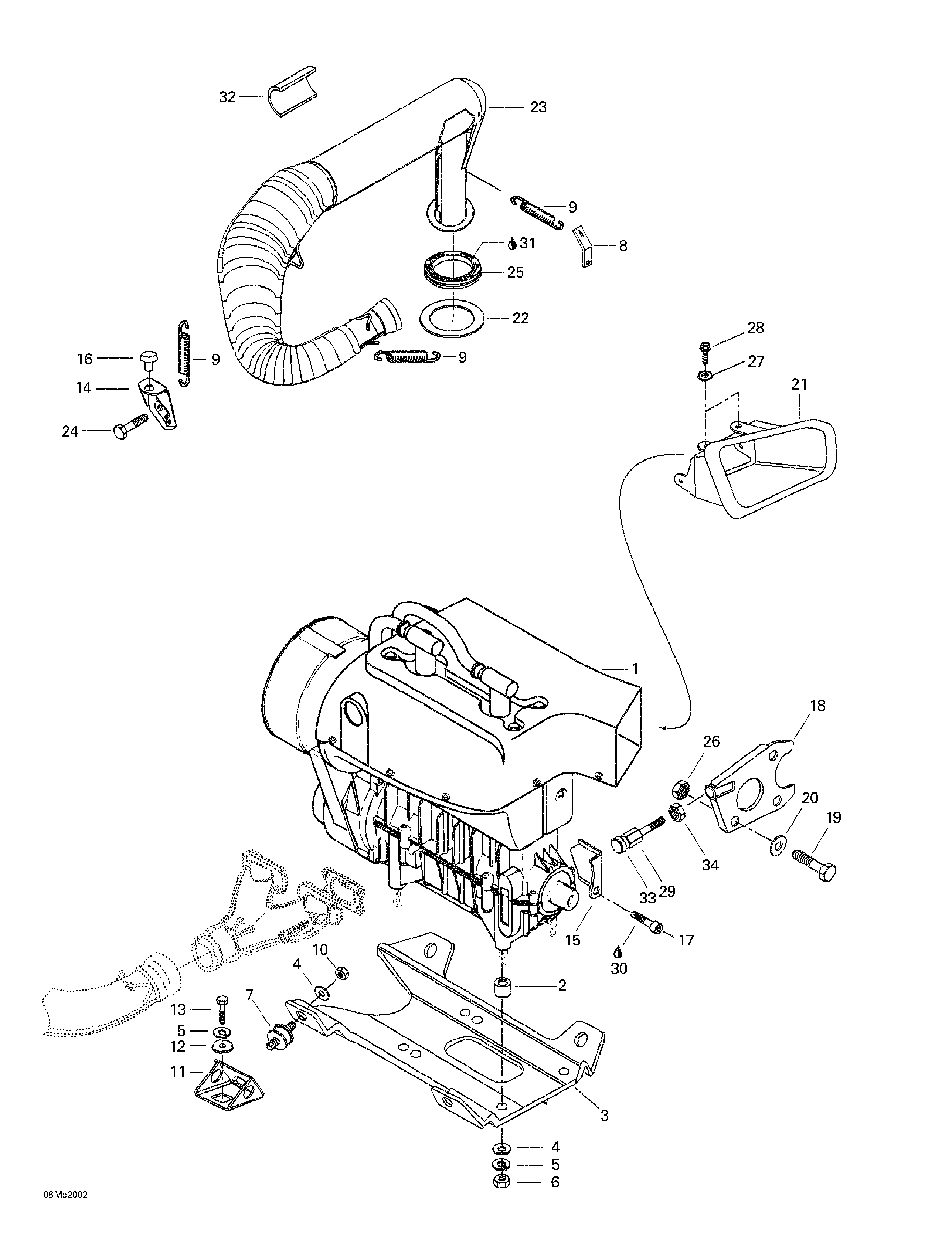

01- Engine Support And Muffler для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1400409415 > Engine> Engine
-
2512057700 SpacerSpacer
-
3512059134 Engine SupportEngine Support
-
4234001410 Washer 10 mmWasher 10 mm
-
5234100602 Lock Washer 10 mmLock Washer 10 mm
-
6232006414 Nut M10Nut M10
-
7570127700 Rubber MountRubber Mount
-
8514034000 Bracket SpringBracket Spring
-
9415107100 SpringSpring
-
10233601416 Locking Elastic Nut M10Locking Elastic Nut M10
-
11512050900 SupportSupport
-
12512056700 Lock WasherLock Washer
-
13207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
14514044100 Muffler SupportMuffler Support
-
15512059198 Stopper plateStopper plate
-
16570048700 Rubber StopperRubber Stopper
-
17236282084 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
18517271800 Support PlateSupport Plate
-
19207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21572083700 Outlet DuctOutlet Duct
-
22514049300 Aluminum WasherAluminum Washer
-
23514046400 MufflerMuffler
-
24207006044 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
25570039000 Exhaust WasherExhaust Washer
-
26232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
27732900047 Ext. Tooth Lock Washer 5.2 mmExt. Tooth Lock Washer 5.2 mm
-
28365901100 Hex. Tapping ScrewHex. Tapping Screw
-
29517244200 ScrewScrew
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
32414746400 Reflection SheetReflection Sheet
-
33570025100 Rod RetainerRod Retainer
-
34232120414 Jam Nut M12Jam Nut M12
