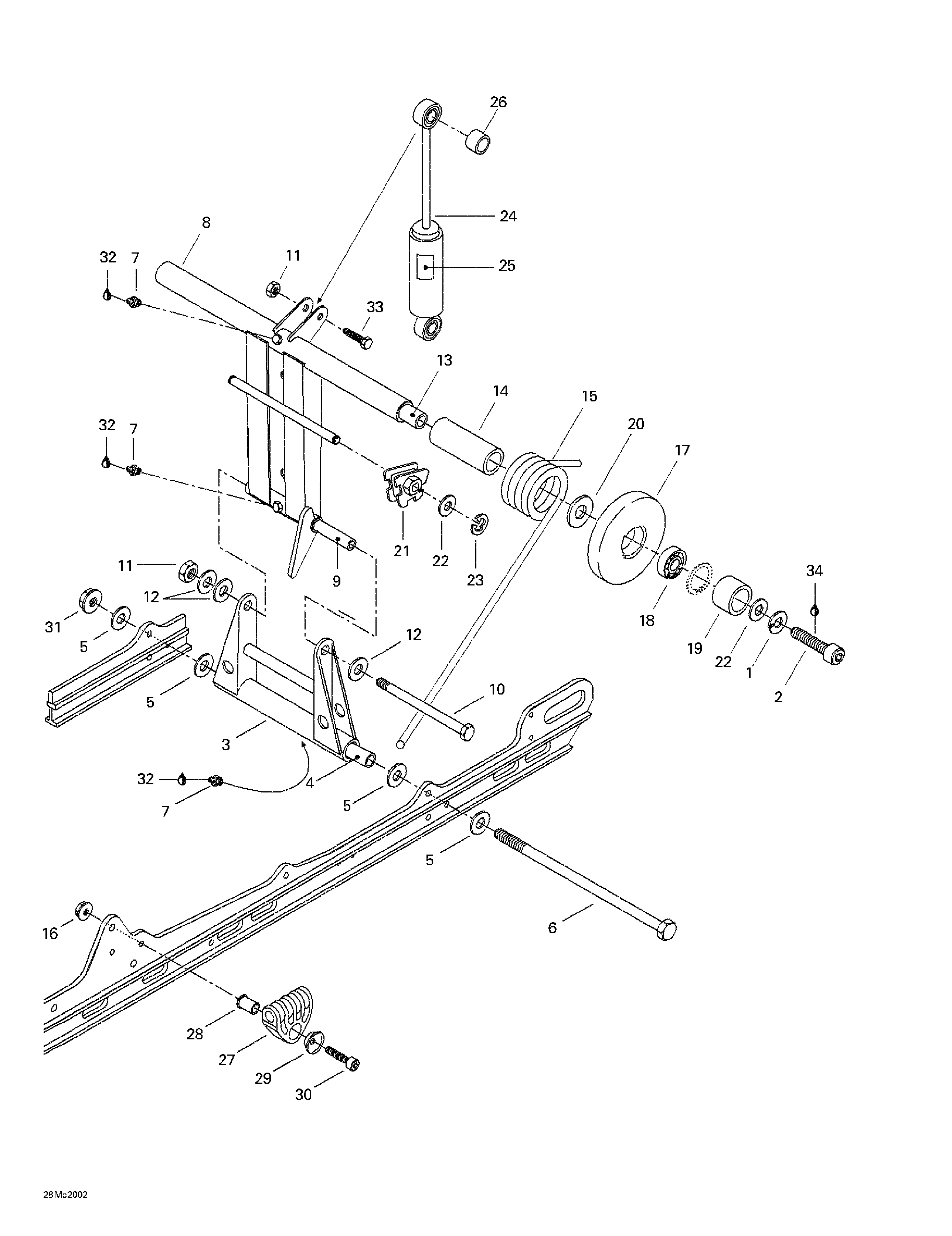

08- Rear Arm для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2205003544 Socket Head Screw M10 x 35Socket Head Screw M10 x 35
-
3503169200 Pivot Welded ArmPivot Welded Arm
-
4503154703 Lower Axle PivotLower Axle Pivot
-
5224081201 Flat WasherFlat Washer
-
6732601198 Bolt M8Bolt M8
-
7408200700 Grease Fitting M6Grease Fitting M6
-
8503151200 Welded Rear ArmWelded Rear Arm
-
9503144300 Upper Axle (Pivot Arm)Upper Axle (Pivot Arm)
-
10732601197 Bolt M8Bolt M8
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12234081410 Flat WasherFlat Washer
-
13503151400 Transversal Rear AxleTransversal Rear Axle
-
14572047800 BushingBushing
-
15503189354 R.H. SpringR.H. Spring
-
503189355 L.H. SpringL.H. Spring
-
16233281414 Flanged Elastic Nut M8Flanged Elastic Nut M8
-
17572094300 Idler Wheel 155. Includes 17 - 18.Idler Wheel 155. Includes 17 - 18.
-
18405404600 Ball Bearing >Ball Bearing >
-
19503154200 SpacerSpacer
-
20503144900 WasherWasher
-
21572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
22234001410 Flat Washer 10 mmFlat Washer 10 mm
-
23371907100 CirclipCirclip
-
24860305000 Rear Shock. Includes 24 - 26.Rear Shock. Includes 24 - 26.
-
25516000182 Decal HPGDecal HPG
-
26414802600 CushionCushion
-
27503188933 Spring SupportSpring Support
-
28503188934 Spring Axle GuideSpring Axle Guide
-
29503188929 Cushion RetainerCushion Retainer
-
30205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
31233281414 Flanged Elastic Nut M8Flanged Elastic Nut M8
-
32219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
33207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
