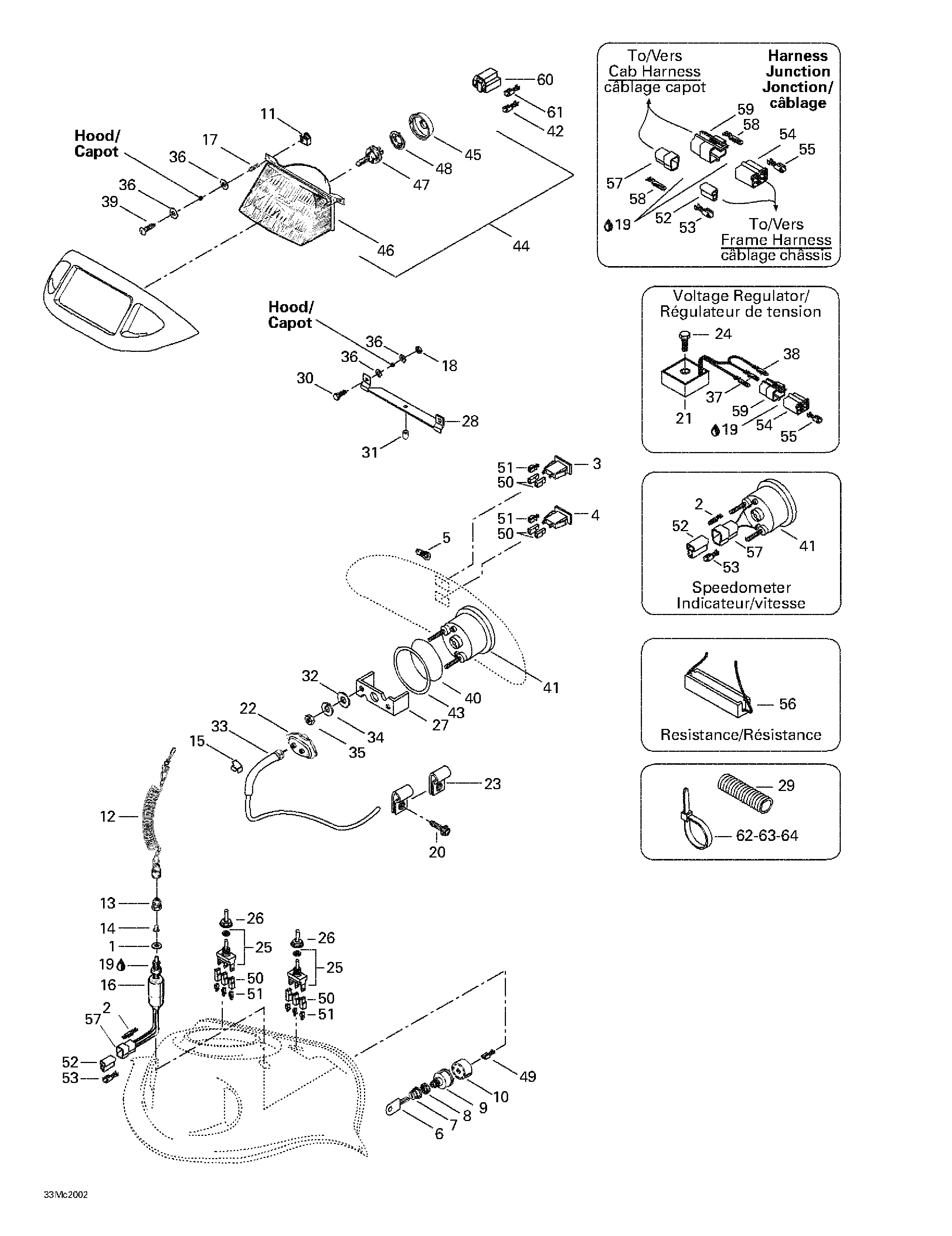

10- Electrical System для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
2409210000 Male TerminalMale Terminal
-
3410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
4410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
5410504200 Instrumentation BulbInstrumentation Bulb
-
6414991700 Blank Key (Plastic Pkg 5)Blank Key (Plastic Pkg 5)
-
7570013700 BootBoot
-
8410112100 Face NutFace Nut
-
9410111200 Ignition SwitchIgnition Switch
-
10572150700 Ignition Switch BlockIgnition Switch Block
-
11572078600 Projector NutProjector Nut
-
12515151500 Switch Cap Ass'ySwitch Cap Ass'y
-
13515145900 Switch NutSwitch Nut
-
14570151100 Plunger CapPlunger Cap
-
15414227300 ClipClip
-
16515175369 Switch BrakeSwitch Brake
-
17517168600 SpringSpring
-
18233251414 Nut Hex. Elastic Flanged M5Nut Hex. Elastic Flanged M5
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
20365901100 Hex. Tapping ScrewHex. Tapping Screw
-
21515163800 Voltage RegulatorVoltage Regulator
-
22515175400 Drive AngleDrive Angle
-
23414176000 ClipClip
-
24210263580 Taptite Hex. Screw M6 x 35Taptite Hex. Screw M6 x 35
-
25410107300 Switch (Heating Grip)Switch (Heating Grip)
-
26515175281 Switch CoverSwitch Cover
-
27414806500 Case HolderCase Holder
-
28517218500 Headlamp SupportHeadlamp Support
-
29415079900 TubingTubing
-
30207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
31410608200 Rubber StopperRubber Stopper
-
32414806800 WasherWasher
-
33414761400 Speedometer CableSpeedometer Cable
-
34414806700 Lock WasherLock Washer
-
35414806900 NutNut
-
36234051410 WasherWasher
-
39243244040 Plastite Screw M4 x 40Plastite Screw M4 x 40
-
40414807100 O-RingO-Ring
-
41515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
42409011500 Female TerminalFemale Terminal
-
43517258500 WasherWasher
-
44410609100 Headlamp Ass'y. Includes 44 - 48.Headlamp Ass'y. Includes 44 - 48.
-
45410607100 Protector CapProtector Cap
-
46410609300 Halogen HeadlampHalogen Headlamp
-
47410503700 Halogen Bulb 60/55 W (H4)Halogen Bulb 60/55 W (H4)
-
48410608300 Bulb HolderBulb Holder
-
49561503100 Female TerminalFemale Terminal
-
50409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
51409010100 Female TerminalFemale Terminal
-
52409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53561503100 Female TerminalFemale Terminal
-
54409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
55561503200 Female TerminalFemale Terminal
-
56515175241 ResistanceResistance
-
57409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
58409206100 Male TerminalMale Terminal
-
59409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
60409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
61515175320 Female TerminalFemale Terminal
-
62293750008 Tie Rap 350 mmTie Rap 350 mm
-
63414115200 Tie RapTie Rap
-
64515175220 Tie RapTie Rap
