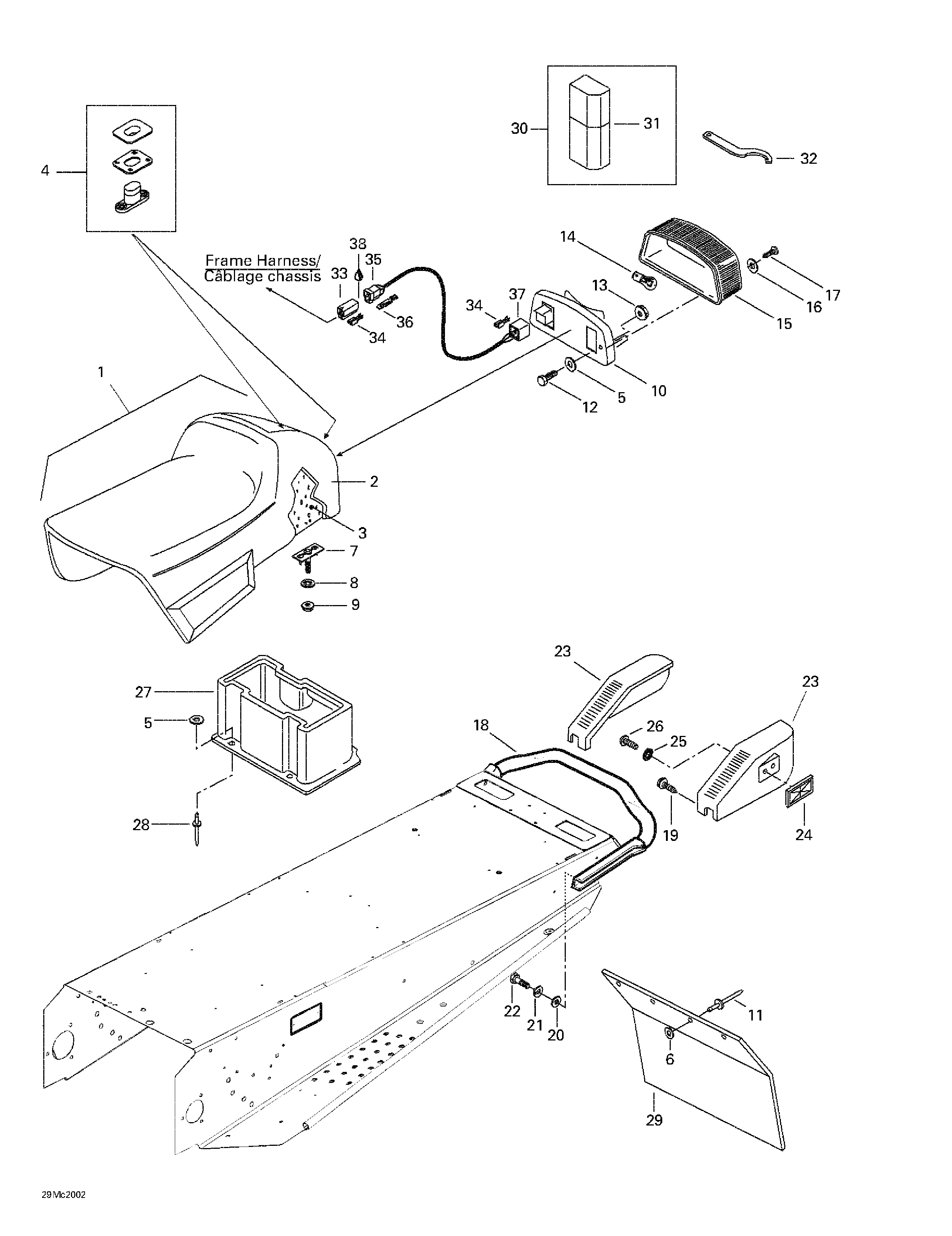

09- Seat And Accessories для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
2510003672 Seat Cover (1 pass.)Seat Cover (1 pass.)
-
3414891300 Foam Seat (1 pass.)Foam Seat (1 pass.)
-
4414728000 Seat BuckleSeat Buckle
-
5517297900 WasherWasher
-
6517225900 Flat WasherFlat Washer
-
7517296100 Weld ScrewWeld Screw
-
8732610072 Push NutPush Nut
-
9233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10414513600 Taillamp HousingTaillamp Housing
-
11390908000 Pop Rivet (Black)Pop Rivet (Black)
-
12207053044 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
13233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
14410504000 BulbBulb
-
15414513700 LensLens
-
16414516400 WasherWasher
-
17209632540 Tapping Phillips ScrewTapping Phillips Screw
-
18518314000 Rear BumperRear Bumper
-
19365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21234181401 Lock Washer 8 mmLock Washer 8 mm
-
22207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
23580642000 R.H. Moulding. Includes 23 - 26.R.H. Moulding. Includes 23 - 26.
-
580642100 L.H. MouldingL.H. Moulding
-
24414510100 Red ReflectorRed Reflector
-
25234451418 Ext. Tooth Lock Washer 5 mmExt. Tooth Lock Washer 5 mm
-
26208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
27572106300 Rear TrunkRear Trunk
-
29520000162 Snow Guard (Black)Snow Guard (Black)
-
30529035500 Tool Box KitTool Box Kit
-
31572036310 Tool BoxTool Box
-
32529032900 Adjuster WrenchAdjuster Wrench
-
33409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
34561503100 Female TerminalFemale Terminal
-
35409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
36409206100 Male TerminalMale Terminal
-
37515175250 Dimmer Switch BlockDimmer Switch Block
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
