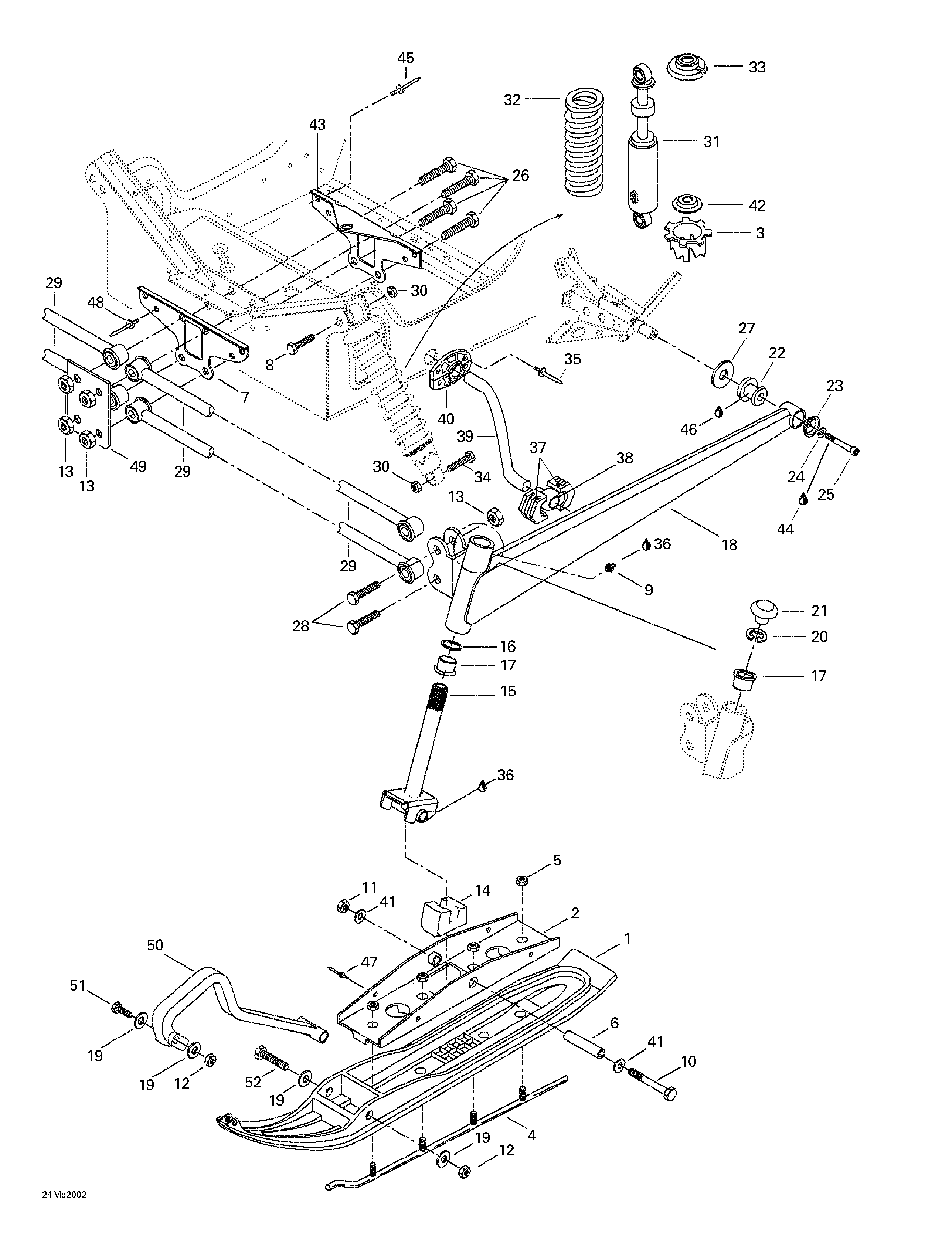

07- Front Suspension And Ski для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1505070189 Flexible Ski LinerFlexible Ski Liner
-
2505070055 Bridge Ass'yBridge Ass'y
-
3503183700 CamCam
-
4860501900 Carbide Runner Kit. Includes 4 - 5.Carbide Runner Kit. Includes 4 - 5.
-
5233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6506133300 SpacerSpacer
-
7517254800 Front Link PlateFront Link Plate
-
8207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
9408200700 Grease FittingGrease Fitting
-
10250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
11233201414 Elastic Stop Nut M10Elastic Stop Nut M10
-
12232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
13232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
14506151233 Ski StopperSki Stopper
-
15506151234 Ski LegSki Leg
-
16505070004 WasherWasher
-
17505070003 CushionCushion
-
18505070377 L.H. Swing Arm (Full Moon)L.H. Swing Arm (Full Moon)
-
505070376 R.H. Swing Arm (Full Moon)R.H. Swing Arm (Full Moon)
-
19234081410 Flat Washer 8 mmFlat Washer 8 mm
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22570062200 Rubber DamperRubber Damper
-
23506115800 BowlBowl
-
24234181401 Spring Lock Washer 8 mmSpring Lock Washer 8 mm
-
25205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
26230020044 Hex. Screw M12 x 100Hex. Screw M12 x 100
-
27503146700 WasherWasher
-
28207025044 Hex. Screw M12 x 50Hex. Screw M12 x 50
-
29580650800 Arm Ass'yArm Ass'y
-
30233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
31505070015 Front ShockFront Shock
-
32415035900 Shock Spring (Black)Shock Spring (Black)
-
33503140600 Spring StopperSpring Stopper
-
34207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
37572069800 Block SlidingBlock Sliding
-
38506127300 Joint BallJoint Ball
-
39506145100 StabilisatorStabilisator
-
40505070191 Half-BushingHalf-Bushing
-
41732900049 WasherWasher
-
42503187500 Spring GuideSpring Guide
-
43517254900 Rear Plate LinkRear Plate Link
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
47390911100 RivetRivet
-
48390404900 Pop Rivet 1/4''Pop Rivet 1/4''
-
49518306700 SupportSupport
-
50572101000 Plastic HandlePlastic Handle
-
51207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
52230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
