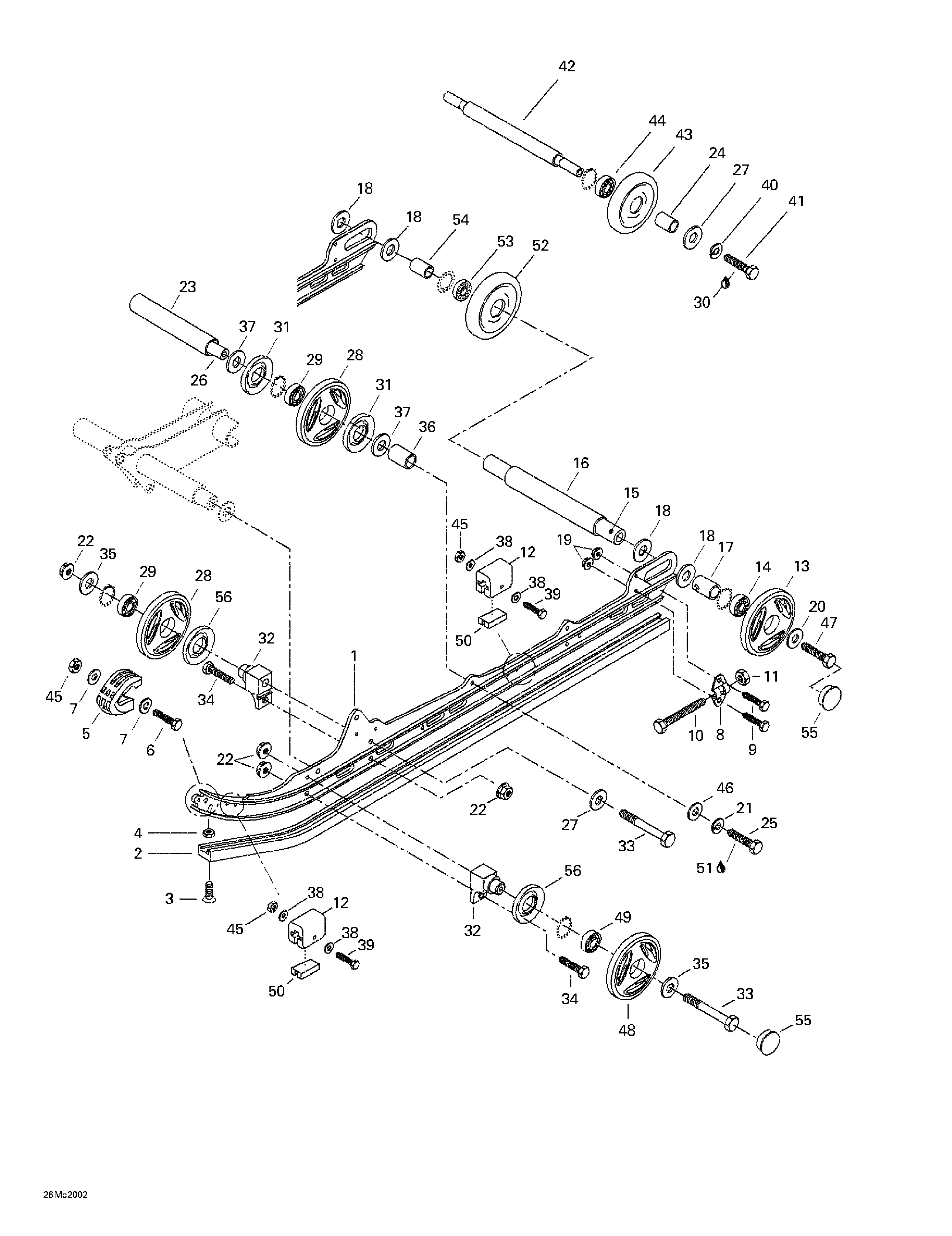

08- Rear Suspension для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1503188931 Runner 121''Runner 121''
-
2560103300 Runner Shoe 121''Runner Shoe 121''
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7391301600 Flat WasherFlat Washer
-
8503155300 TensionerTensioner
-
9207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
10230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
11233601416 Locking Elastic Nut M10Locking Elastic Nut M10
-
12570063000 Rubber StopperRubber Stopper
-
13503189475 Wheel 165 (Black). Includes 13 - 14.Wheel 165 (Black). Includes 13 - 14.
-
14405404500 Ball Bearing >Ball Bearing >
-
15503160700 Rear AxleRear Axle
-
16503183000 SpacerSpacer
-
17503189075 Outer SpacerOuter Spacer
-
18503180400 WasherWasher
-
19233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
20503183300 WasherWasher
-
21234100602 Lock Washer 10 mmLock Washer 10 mm
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23503153100 SpacerSpacer
-
24572048300 SpacerSpacer
-
25207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
26503188700 Wheel AxleWheel Axle
-
27234081410 Flat Washer 8 mmFlat Washer 8 mm
-
28503188997 Bonded Wheel 135. Includes 28 - 29.Bonded Wheel 135. Includes 28 - 29.
-
29405404500 Ball Bearing >Ball Bearing >
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31503189314 CushionCushion
-
32503174600 SupportSupport
-
33207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
34207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
35503183100 WasherWasher
-
36503188800 SpacerSpacer
-
37503154000 WasherWasher
-
38391301700 Flat WasherFlat Washer
-
39207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
40234181401 Lock Washer 8 mmLock Washer 8 mm
-
41207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
42503153600 Wheel Support AxleWheel Support Axle
-
43572043500 Idler Wheel. Includes 43 - 44.Idler Wheel. Includes 43 - 44.
-
44405404600 Ball Bearing >Ball Bearing >
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46234001410 Flat Washer 10 mmFlat Washer 10 mm
-
47250000019 Hex. ScrewHex. Screw
-
48572097602 Idler Wheel 135 (Black). Includes 48 - 49.Idler Wheel 135 (Black). Includes 48 - 49.
-
49405404500 Ball Bearing >Ball Bearing >
-
50572084800 Reinforcement StopperReinforcement Stopper
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52503189476 Wheel 165 Ass'y. Includes 52 - 53.Wheel 165 Ass'y. Includes 52 - 53.
-
53405404500 Ball Bearing 6205Ball Bearing 6205
-
54503182900 Short SpacerShort Spacer
-
55570063600 Wheel CapWheel Cap
-
56572089000 Labyrinth SealLabyrinth Seal
