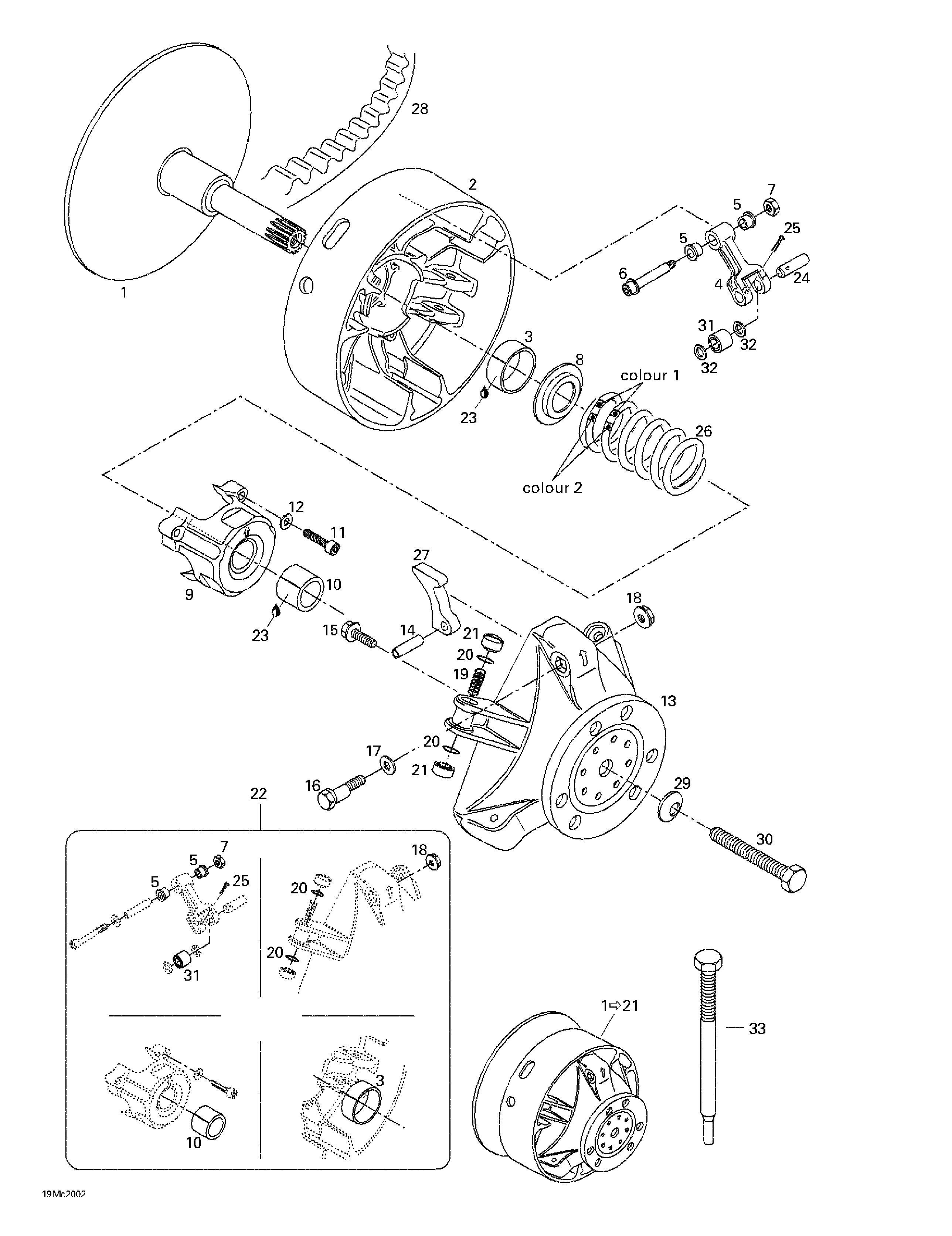

05- Drive Pulley для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1417222284 Drive Pulley Ass'y. Includes 1 - 21.Drive Pulley Ass'y. Includes 1 - 21.
-
1417222071 Fixed FlangeFixed Flange
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 BushingBushing
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'yScrew Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222157 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 Bushing Spring CoverBushing Spring Cover
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222081 Governor CupGovernor Cup
-
14732804009 Roll Pin M8 x 24Roll Pin M8 x 24
-
15210361890 Hex. Locking Screw M6 x 18Hex. Locking Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Locking Nut M6Locking Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Slider ShoeSlider Shoe
-
22417006100 Clutch Repair KitClutch Repair Kit
-
23413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
24417004309 PinPin
-
25732958001 Cotter PinCotter Pin
-
26414689500 Spring (Blue/Yellow)Spring (Blue/Yellow)
-
27417005291X Ramp 291XRamp 291X
-
28415060600 Drive BeltDrive Belt
-
29250200005 Conical Spring WasherConical Spring Washer
-
30417113800 Drive Pulley BoltDrive Pulley Bolt
-
31417003900 Roller Ass'yRoller Ass'y
-
32417004302 Thrust WasherThrust Washer
-
33529007900 Puller Inner HalfPuller Inner Half
