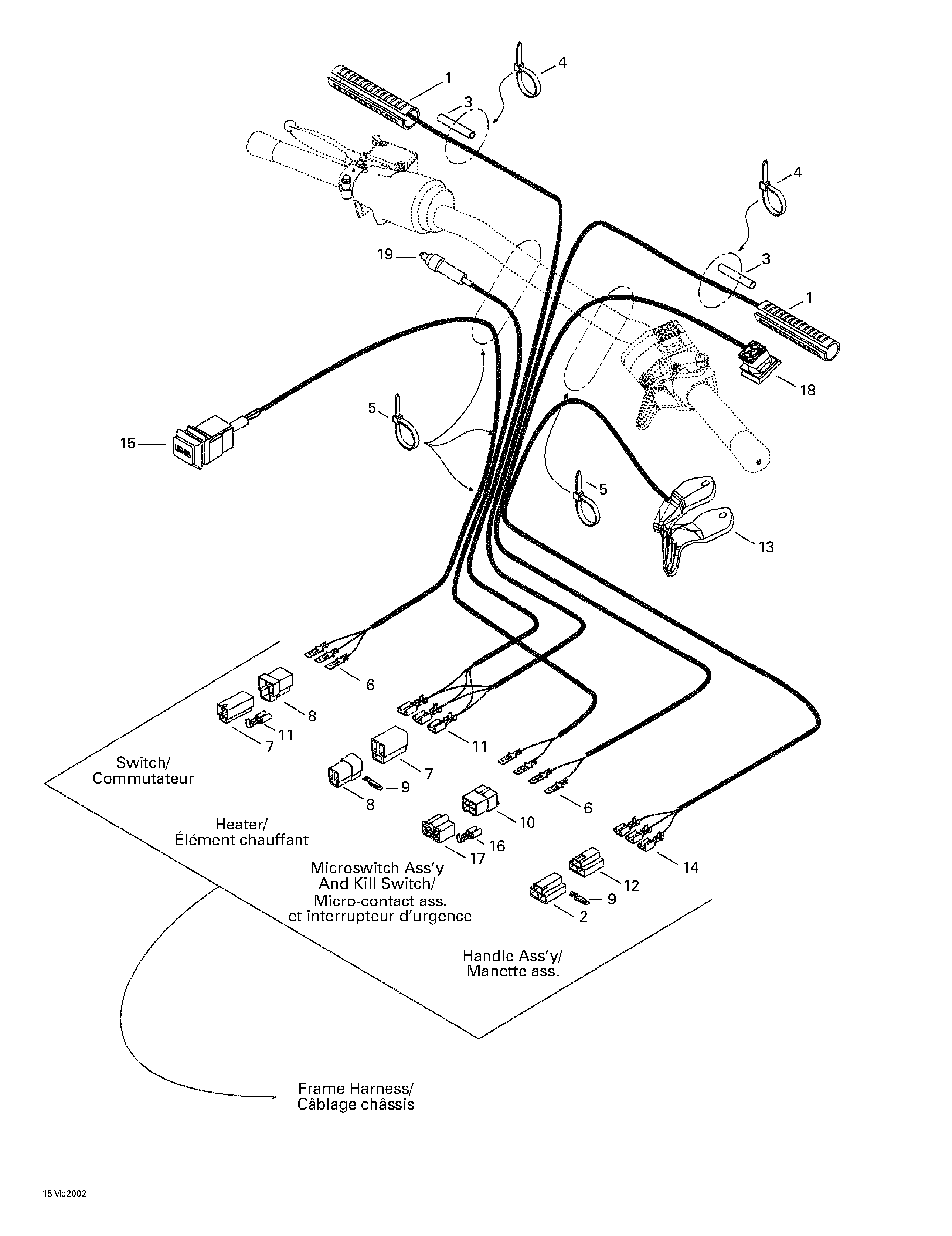

07- Steering System для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1515175387 HeaterHeater
-
2409008600 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
3515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
4293750001 Tie Rap 94 mmTie Rap 94 mm
-
5414115200 Tie RapTie Rap
-
6409210000 Male TerminalMale Terminal
-
7409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
8409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
9409206100 Male TerminalMale Terminal
-
10409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
11561503100 Female TerminalFemale Terminal
-
12409008500 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
13512059144 Handle Ass'y 34 mmHandle Ass'y 34 mm
-
14515175253 Female TerminalFemale Terminal
-
15515175371 SwitchSwitch
-
16561503200 Female TerminalFemale Terminal
-
17409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
18512059146 Kill SwitchKill Switch
-
19507032284 Microswitch Ass'yMicroswitch Ass'y
