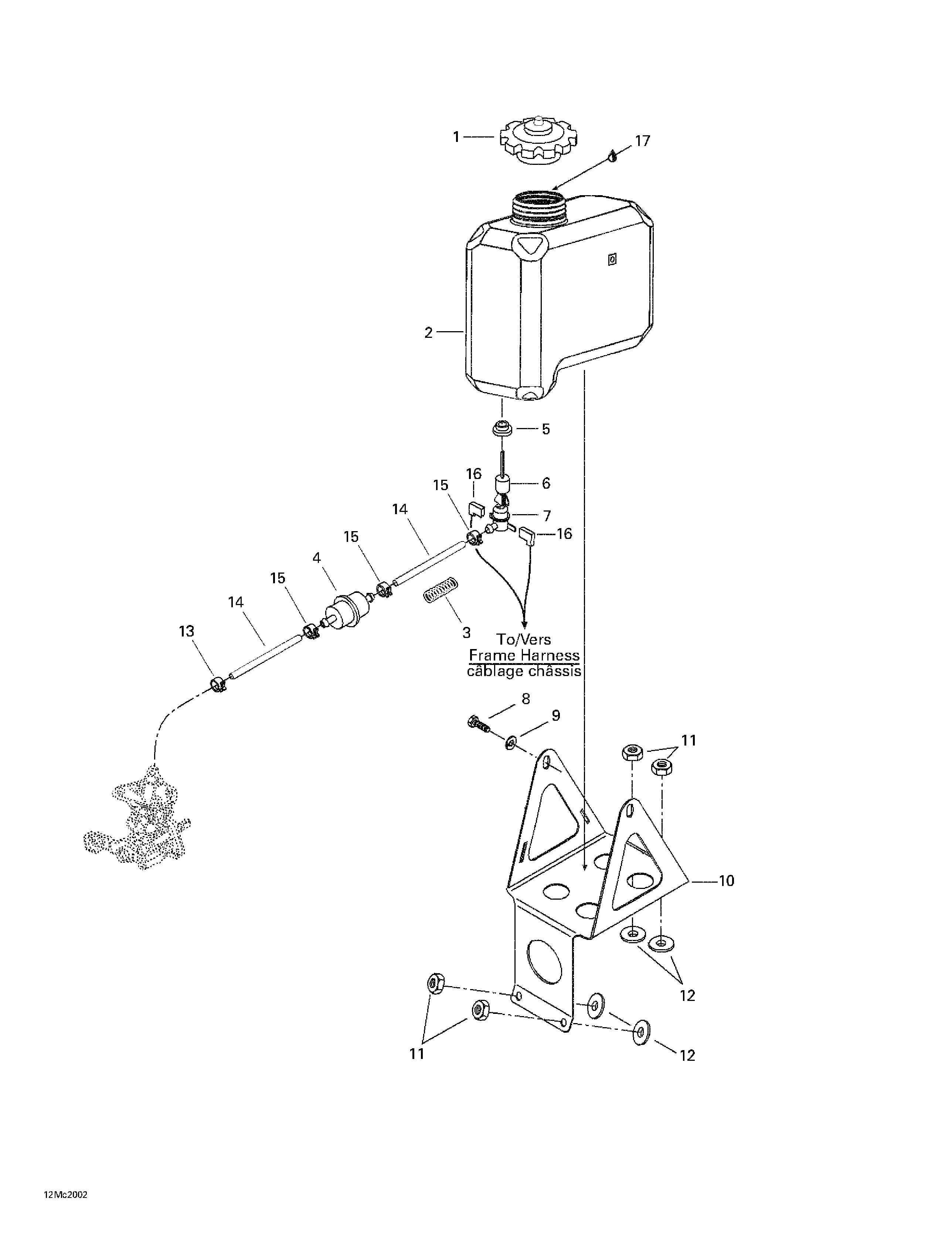

02- Oil Tank And Support для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1572071000 Oil Tank CapOil Tank Cap
-
2572091600 Injection Oil TankInjection Oil Tank
-
3414940300 SpringSpring
-
4414536500 FilterFilter
-
5570023000 GrommetGrommet
-
6414681900 FloatFloat
-
7414681800 Oil Level SensorOil Level Sensor
-
8207161044 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
9234161471 Lock Washer 6 mmLock Washer 6 mm
-
10517284700 Oil Reservoir SupportOil Reservoir Support
-
11232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
12414454400 Rubber WasherRubber Washer
-
13414420700 Spring ClipSpring Clip
-
14415080700 Oil LineOil Line
-
15414415200 Spring ClipSpring Clip
-
16409010300 Female TerminalFemale Terminal
-
17413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
