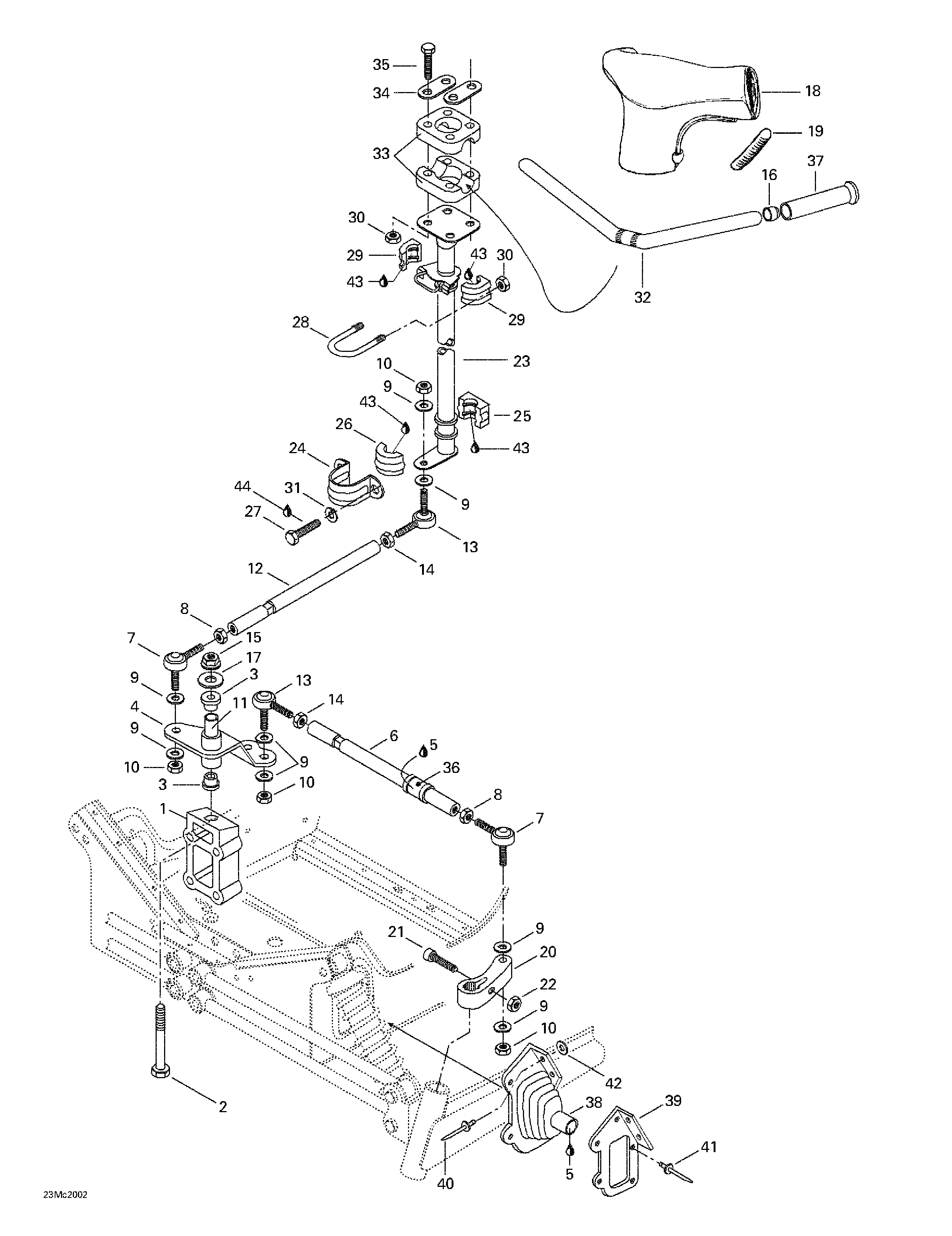

07- Steering System для BRP Ski-Doo MX Z 440 - 2000
-
№АртикулНазвание
-
1506121400 BlockBlock
-
2207028544 Hex. Screw M12 x 85Hex. Screw M12 x 85
-
3415041100 CushionCushion
-
4506133800 Pivot ArmPivot Arm
-
5293550014 Grease Super Lube, #823-28Grease Super Lube, #823-28
-
6506130200 Tie RodTie Rod
-
7414768000 R.H. Ball JointR.H. Ball Joint
-
8732610010 Jam Nut M10Jam Nut M10
-
9503175800 WasherWasher
-
10232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
11415038000 PivotPivot
-
12506110800 Tie RodTie Rod
-
13414768100 L.H. Ball JointL.H. Ball Joint
-
14732610011 Jam Nut M10Jam Nut M10
-
15232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
16572081900 Handle Bar EndHandle Bar End
-
17506136400 WasherWasher
-
18572084100 Steering PaddingSteering Padding
-
19572072400 Key WayKey Way
-
20506144800 R.H. Steering ArmR.H. Steering Arm
-
506144900 L.H. Steering ArmL.H. Steering Arm
-
21205083544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
22233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
23506151114 Main TubeMain Tube
-
24517126200 Retaining SupportRetaining Support
-
25572064400 Lower Half BushingLower Half Bushing
-
26572064500 Upper Half BushingUpper Half Bushing
-
27207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
28506060600 > Clamp> Clamp
-
29572067100 Half BushingHalf Bushing
-
30232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
31234181401 Lock Washer 8 mmLock Washer 8 mm
-
32506125900 Handle BarHandle Bar
-
33277000142 Steering ClampSteering Clamp
-
34506151196 ReinforcementReinforcement
-
35207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
36572036500 BushingBushing
-
37572100500 GripGrip
-
38570024800 R.H. Tie Rod CapR.H. Tie Rod Cap
-
570024900 L.H. Tie Rod CapL.H. Tie Rod Cap
-
39517241200 R.H. Plate CapR.H. Plate Cap
-
517241300 L.H. Plate CapL.H. Plate Cap
-
40390910200 Rivet (Yellow)Rivet (Yellow)
-
41390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517124300 WasherWasher
-
43219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
44293800005 Loctite 271, 10 mlLoctite 271, 10 ml
