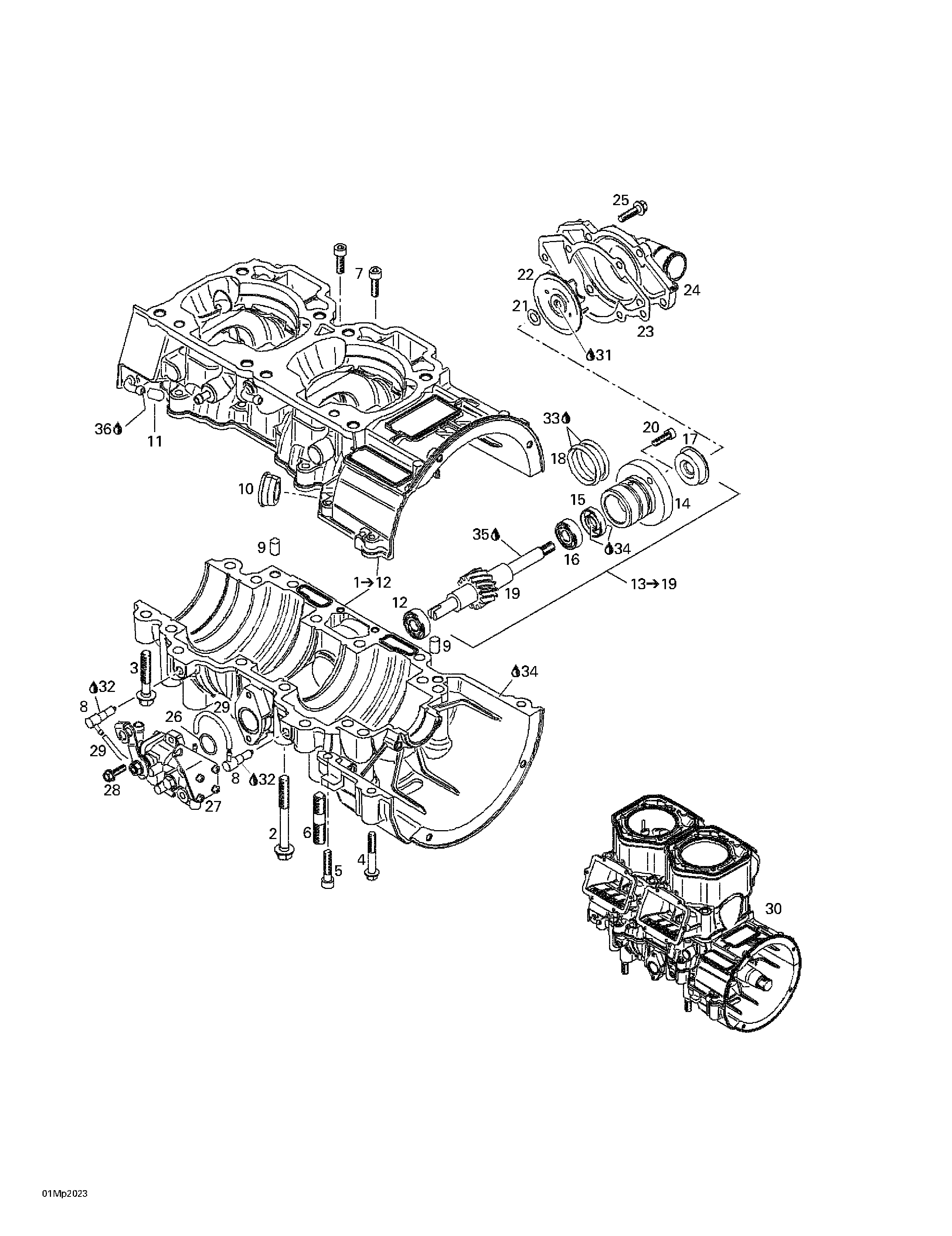

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1420888277 Crankcase Ass'y. Includes 1 - 12.Crankcase Ass'y. Includes 1 - 12.
-
2420640831 Hex. Collar Screw M8 x 75Hex. Collar Screw M8 x 75
-
3420640436 Hex. Collar Screw M8 x 45Hex. Collar Screw M8 x 45
-
4420640311 Hex. Collar Screw M6 x 45Hex. Collar Screw M6 x 45
-
5205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
6420941644 Stud M10 x 23Stud M10 x 23
-
7420840401 Socket Head Screw M6 x 22Socket Head Screw M6 x 22
-
8420956510 Check ValveCheck Valve
-
9420632010 Dowel PinDowel Pin
-
10420860965 Cable GrommetCable Grommet
-
11420960770 CapCap
-
12420232100 Ball BearingBall Bearing
-
13420837421 Water Pump/Oil Pump Ass'y. Includes 13 - 19.Water Pump/Oil Pump Ass'y. Includes 13 - 19.
-
15420230195 Oil SealOil Seal
-
16420232100 Ball BearingBall Bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-RingO-Ring
-
20420840511 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
21420227945 WasherWasher
-
22420222505 Water ImpellerWater Impeller
-
23420931810 GasketGasket
-
24420922630 Water Pump HousingWater Pump Housing
-
25420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
26420230400 O-RingO-Ring
-
27420888420 Oil Pump Ass'yOil Pump Ass'y
-
28420941925 Screw M5 x 16Screw M5 x 16
-
29414413800 Oil LineOil Line
-
30420079301 Block Ass'y (793)Block Ass'y (793)
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
35413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
36293550021 Isoflex Grease, 45 gIsoflex Grease, 45 g
