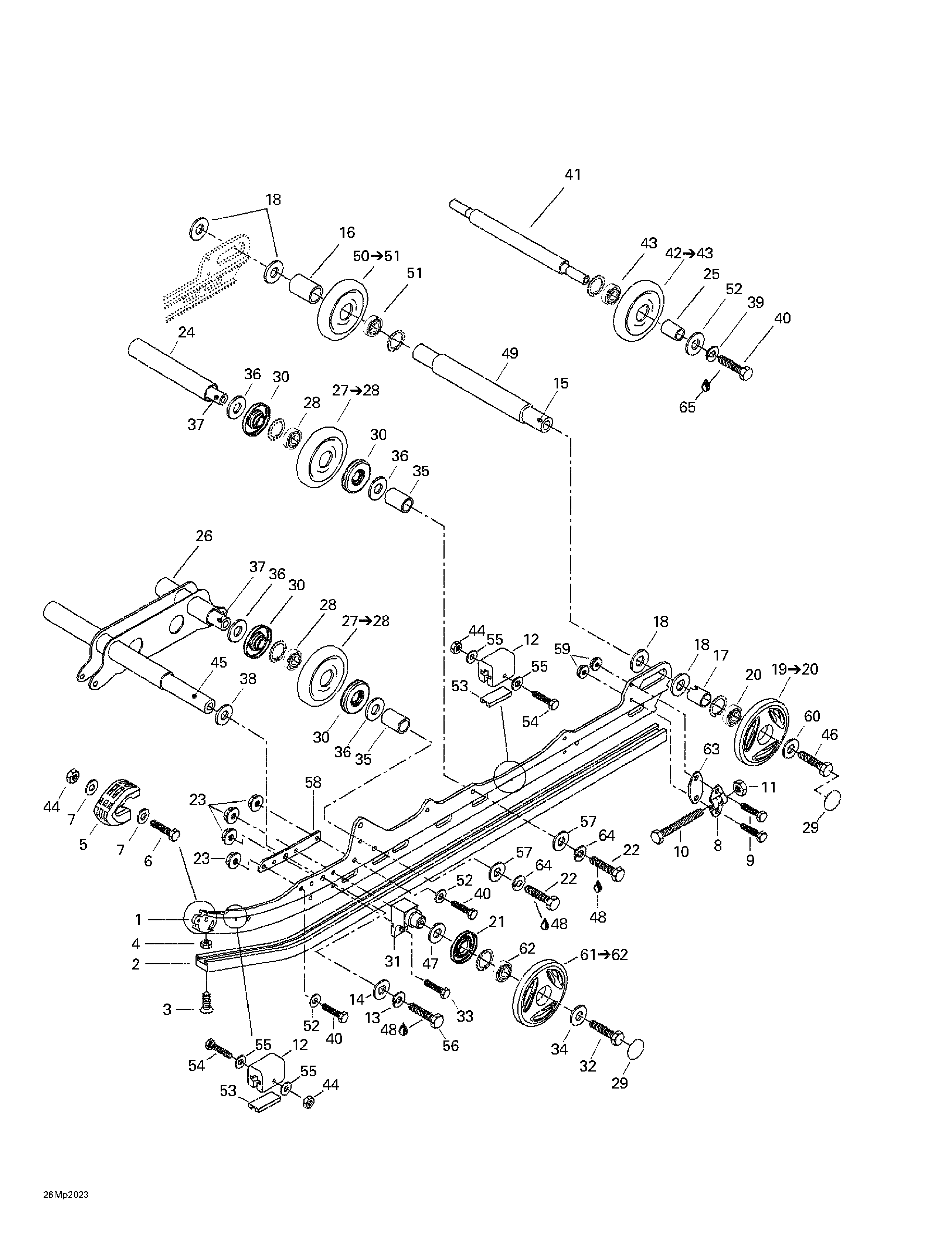

08- Rear Suspension для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1503189438 RunnerRunner
-
2503189401 RailRail
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7391301600 WasherWasher
-
8503155300 TensionerTensioner
-
9207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
10230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12570063000 Rubber StopperRubber Stopper
-
13234120602 Lock Spring Washer 12 mmLock Spring Washer 12 mm
-
14234021410 Flat Washer 12 mmFlat Washer 12 mm
-
15503160700 Rear AxleRear Axle
-
16503182900 Spacer (Short)Spacer (Short)
-
17503189161 Outer SpacerOuter Spacer
-
18503180400 WasherWasher
-
19503189479 Wheel 165 (Yellow). Includes 19 - 20.Wheel 165 (Yellow). Includes 19 - 20.
-
20405404500 Ball Bearing 6205Ball Bearing 6205
-
21572089000 Labyrinth SealLabyrinth Seal
-
22207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24503153100 SpacerSpacer
-
25572048300 SpacerSpacer
-
26503173300 Shock SupportShock Support
-
27503188998 Wheel 139. Includes 27 - 28.Wheel 139. Includes 27 - 28.
-
28405404500 Ball Bearing 6205Ball Bearing 6205
-
29570063600 Wheel CapWheel Cap
-
30503189314 Labyrinth ShaftLabyrinth Shaft
-
31503174600 SupportSupport
-
32207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
33207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
34503183100 WasherWasher
-
35503188800 SpacerSpacer
-
36503154000 WasherWasher
-
37503188700 Axle WheelAxle Wheel
-
38503175400 Hardened WasherHardened Washer
-
39234181401 Lock Washer 8 mmLock Washer 8 mm
-
40207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
41503153600 Wheel Support AxleWheel Support Axle
-
42572043500 Idler Wheel. Includes 42 - 43.Idler Wheel. Includes 42 - 43.
-
43405404600 Ball Bearing 6202Ball Bearing 6202
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45503174900 Lower AxleLower Axle
-
46250000019 Hex. Screw with NylonHex. Screw with Nylon
-
47503173700 WasherWasher
-
48293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
49503183000 Spacer (Long)Spacer (Long)
-
50503189476 Wheel 165. Includes 50 - 51.Wheel 165. Includes 50 - 51.
-
51405404500 Ball Bearing 6205Ball Bearing 6205
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53572084800 Stopper ReinforcementStopper Reinforcement
-
54207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
55391301700 Flat WasherFlat Washer
-
56207124044 Hex. Screw M12 x 40Hex. Screw M12 x 40
-
57234001410 Flat Washer 10 mmFlat Washer 10 mm
-
58503189197 Reinforcement PlateReinforcement Plate
-
59233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
60503183300 WasherWasher
-
61503189094 Wheel 139. Includes 61 - 62.Wheel 139. Includes 61 - 62.
-
62405404500 Ball Bearing 6205Ball Bearing 6205
-
63503189160 Tensioner SpacerTensioner Spacer
-
64234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
65293800060 Loctite 243, 10 mlLoctite 243, 10 ml
