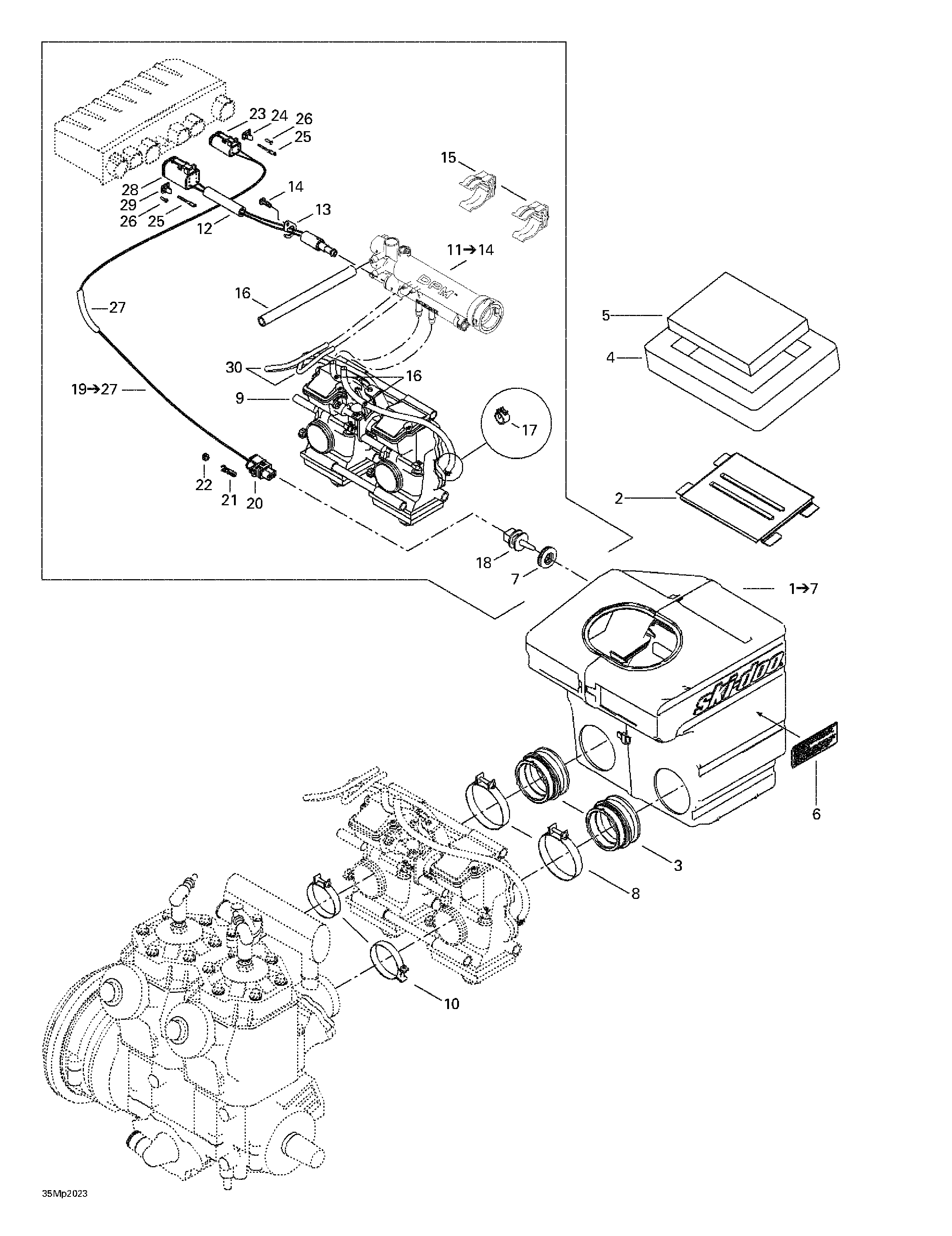

02- Air Intake System для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1508000087 Air Intake Ass'yAir Intake Ass'y
-
2508000004 Intake GrillIntake Grill
-
3508000092 Air Intake Adaptor (40 mm)Air Intake Adaptor (40 mm)
-
4508000099 Lower FoamLower Foam
-
5415103200 Air FilterAir Filter
-
6516000130 Caution LabelCaution Label
-
7570065500 GrommetGrommet
-
8508000162 ClampClamp
-
9403138590 TM-40-B43 Carburetor KitTM-40-B43 Carburetor Kit
-
10512059192 ClampClamp
-
11512059114 PressureManifoldAss'y. Includes 11 - 14.PressureManifoldAss'y. Includes 11 - 14.
-
12515175271 Pressure Manifold HarnessPressure Manifold Harness
-
13415061600 Solenoid LockSolenoid Lock
-
14241140060 Screw K40 x 10Screw K40 x 10
-
15512058919 SupportSupport
-
16415080200 LineLine
-
17414554800 Spring ClampSpring Clamp
-
18270600000 Air SensorAir Sensor
-
19515175121 Harness Temperature. Includes 19 - 27.Harness Temperature. Includes 19 - 27.
-
20278001005 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
21278000998 Female TerminalFemale Terminal
-
22278000999 SealSeal
-
23515175245 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
24515175246 Female Lock (4 circuits)Female Lock (4 circuits)
-
25409015100 Female TerminalFemale Terminal
-
26515175303 PlugPlug
-
27515175332 TubingTubing
-
28409015400 Female Terminal Housing (6 circuits)Female Terminal Housing (6 circuits)
-
29409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
30404161904 HoseHose
