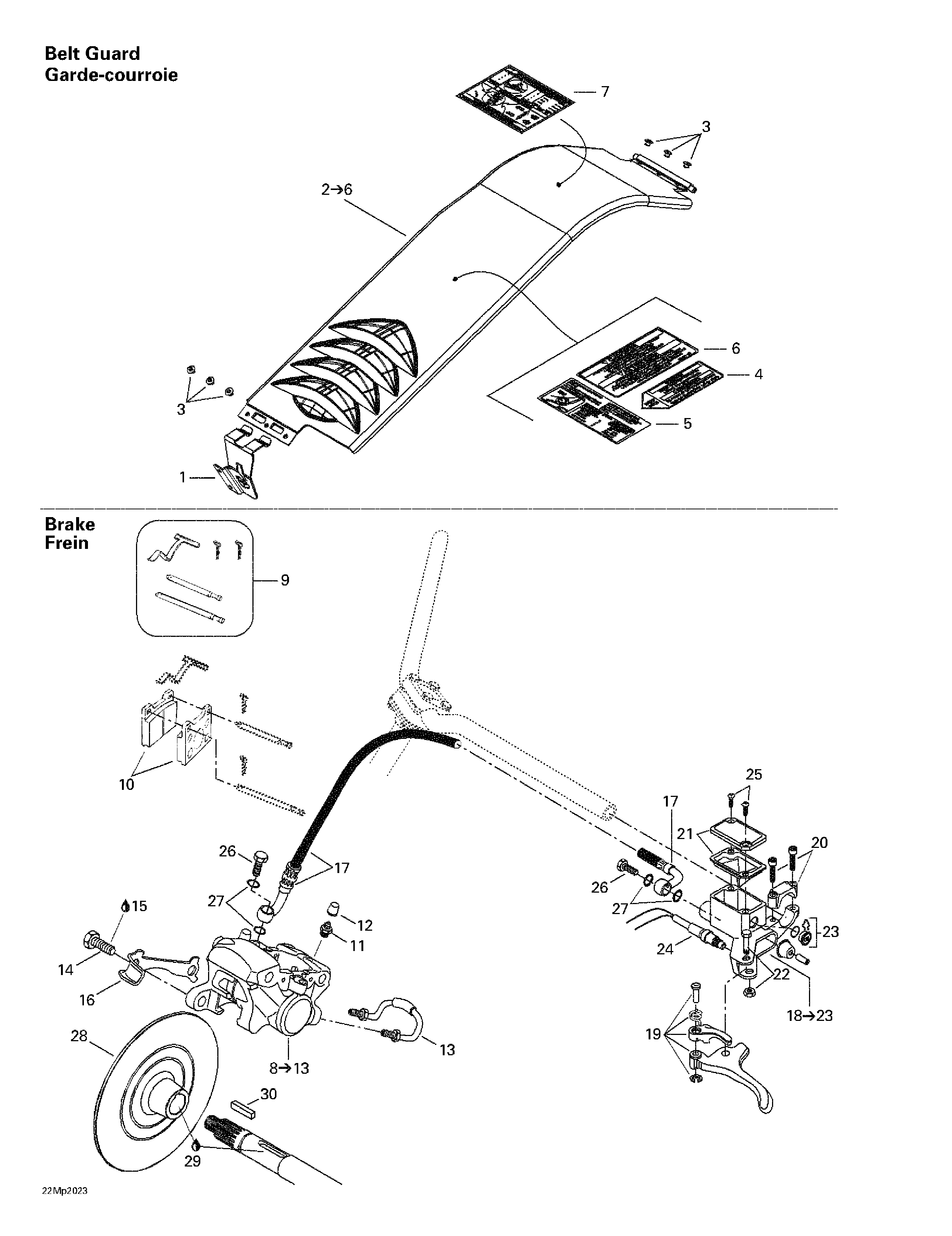

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300134 Belt Guard Ass'yBelt Guard Ass'y
-
3390402200 Pop Rivet 3/16Pop Rivet 3/16
-
4516000132 Warning LabelWarning Label
-
5516000284 Calibration LabelCalibration Label
-
6516000681 Warning LabelWarning Label
-
7418001706 Ajustment DecalAjustment Decal
-
8414920000 CaliperCaliper
-
9414990000 BrakeLiningKitBrakeLiningKit
-
10414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
11414989800 Screw-BleederScrew-Bleeder
-
12414989700 BootBoot
-
13414989900 Rigid TubingRigid Tubing
-
14207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16507029900 Locking TabLocking Tab
-
17507032237 HoseHose
-
18507032293 MasterCylinder. Includes 18 - 23.MasterCylinder. Includes 18 - 23.
-
19507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
20415029800 Clamp Ass'yClamp Ass'y
-
21415029900 CapCap
-
22415030000 Pin Ass'yPin Ass'y
-
23414990600 WindowWindow
-
24507032284 Microswitch Ass'yMicroswitch Ass'y
-
25216141260 ScrewScrew
-
26414920500 Banjo BoltBanjo Bolt
-
27414920600 WasherWasher
-
28507031300 Brake DiskBrake Disk
-
29293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
30507021300 KeyKey
