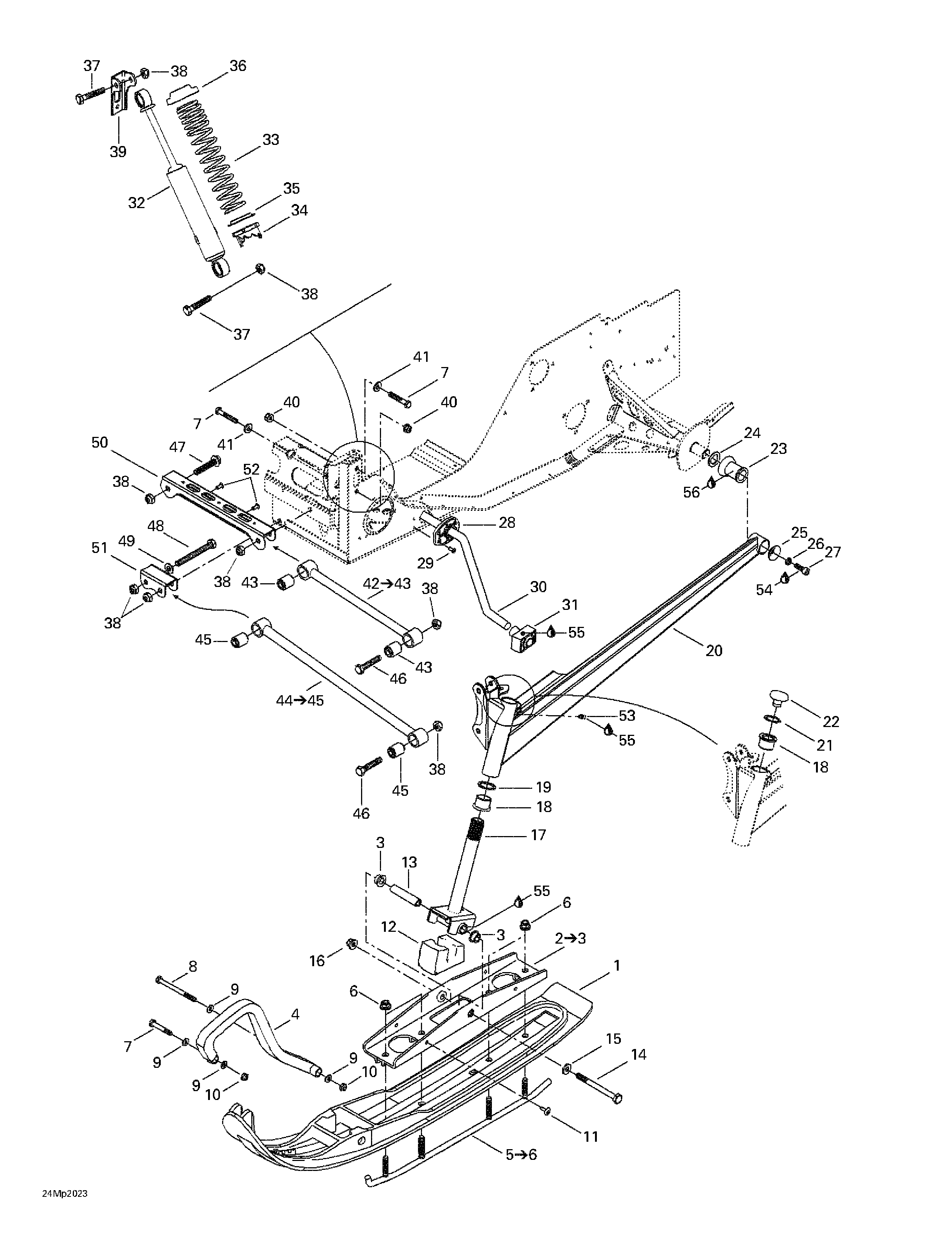

07- Front Suspension And Ski для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1505070189 Ski LinerSki Liner
-
2505070055 Bridge Ass'y. Includes 2 - 3.Bridge Ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4572101000 Plastic HandlePlastic Handle
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
8230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11390911100 Pop Rivet 1/4Pop Rivet 1/4
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Flange Nut M10Flange Nut M10
-
17506151234 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070521 R.H. ArmR.H. Arm
-
505070522 L.H. ArmL.H. Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506079600 CupCup
-
26234181401 Lock Washer 8 mmLock Washer 8 mm
-
27205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
28505070191 BushingBushing
-
29390402300 Pop Rivet 3/16Pop Rivet 3/16
-
30505070282 StabilisatorStabilisator
-
31505070117 Ball Joint BlockBall Joint Block
-
32415105700 Front Shock Ass'yFront Shock Ass'y
-
33505070020 Spring (Yellow)Spring (Yellow)
-
34503169000 CamCam
-
35503165100 Spring GuideSpring Guide
-
36503140600 Spring StopperSpring Stopper
-
37207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
38233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39518317518 R.H. Shock BracketR.H. Shock Bracket
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
41506151245 WasherWasher
-
42505070404 Upper Arm Ass'y. Includes 42 - 43.Upper Arm Ass'y. Includes 42 - 43.
-
43505070025 BushingBushing
-
44505070403 Lower Arm Ass'y. Includes 44 - 45.Lower Arm Ass'y. Includes 44 - 45.
-
45505070025 BushingBushing
-
46207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
47207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
48207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
49234001410 Flat Washer 10 mmFlat Washer 10 mm
-
50505070010 Upper Arm BracketUpper Arm Bracket
-
51505070011 Lower Arm BracketLower Arm Bracket
-
52390402200 Pop Rivet 3/16Pop Rivet 3/16
-
53408200700 Grease FittingGrease Fitting
-
54293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
55219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
56293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
