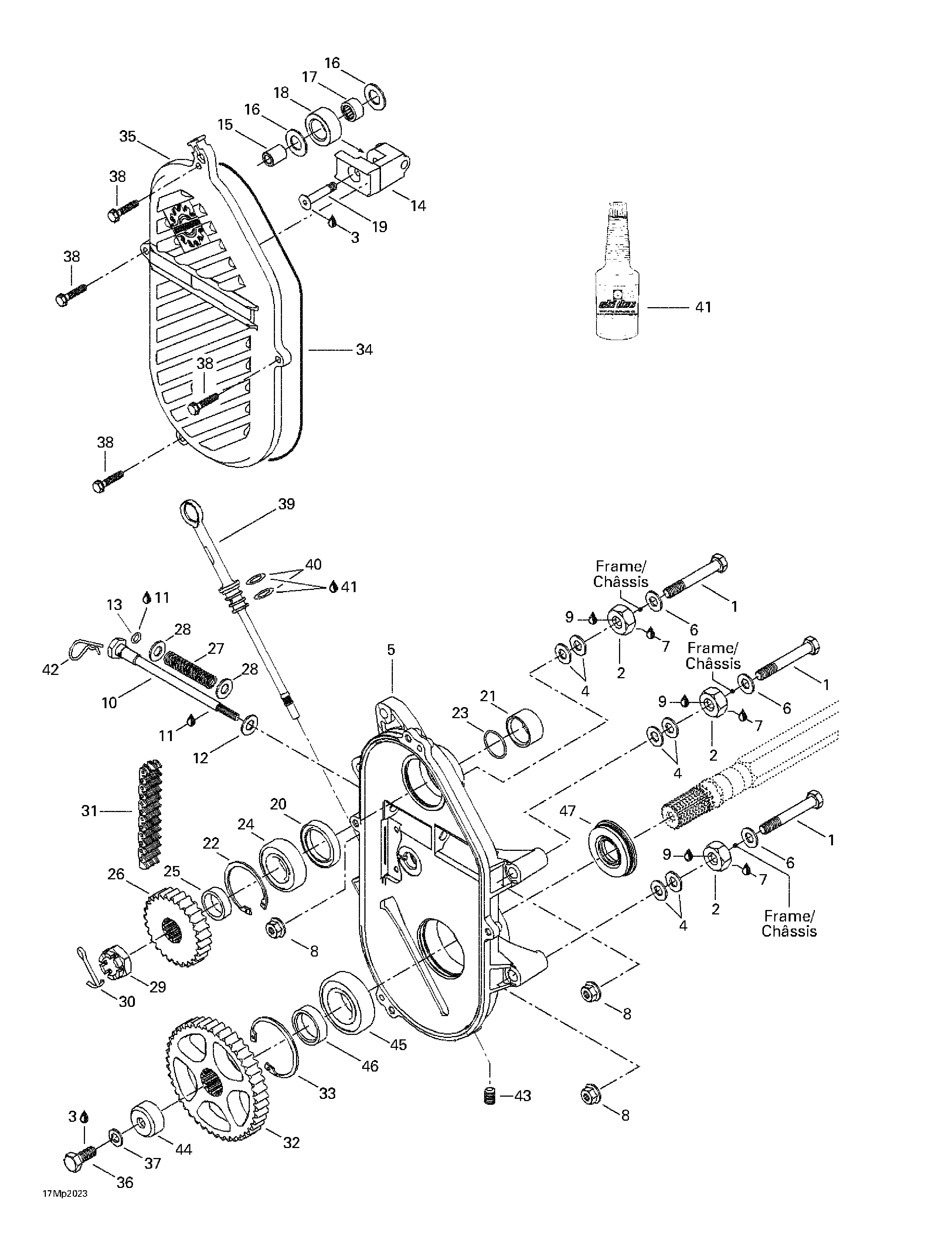

05- Chaincase для BRP Ski-Doo Summit 800 H.M. - 2000
![](/wa-data/public/shop/sheme/bombardier/ski-doo/53ea7830-516c-483f-976c-1d46254e35cc.png)
-
№АртикулНазвание
-
1207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
2504083800 SpacerSpacer
-
3293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
4504073700 WasherWasher
-
5504151938 ChaincaseChaincase
-
6503183800 WasherWasher
-
7293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
8233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10504151946 Adjusting ScrewAdjusting Screw
-
11219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
12503189148 Flat washerFlat washer
-
13504151954 O-RingO-Ring
-
14504151940 Chain TensionerChain Tensioner
-
15504080200 SpacerSpacer
-
16504080300 WasherWasher
-
17405403000 Needle BearingNeedle Bearing
-
18414531300 RollerRoller
-
19732601144 ScrewScrew
-
20415049300 SealSeal
-
21507031500 SpacerSpacer
-
22371901700 Circlip (Interior)Circlip (Interior)
-
23414876700 O-RingO-Ring
-
24405404400 Ball Bearing 6205Ball Bearing 6205
-
25504147200 ShimShim
-
26504096200 21 Tooth Sprocket (Large)21 Tooth Sprocket (Large)
-
27504151945 SpringSpring
-
28503125900 Hard WasherHard Washer
-
29250000012 Hex. Castellated Nut M20Hex. Castellated Nut M20
-
30371006300 Cotter PinCotter Pin
-
31504151857 Drive Chain Large (74 Links)Drive Chain Large (74 Links)
-
32504148500 43 Tooth Sprocket (Large)43 Tooth Sprocket (Large)
-
33415064300 Circlip (Interior)Circlip (Interior)
-
34415046400 O-RingO-Ring
-
35080044000 Chaincase CoverChaincase Cover
-
36207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
37234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
38210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
39504151703 Filler Cap Ass'yFiller Cap Ass'y
-
40414969400 O-RingO-Ring
-
41413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
42414575600 Hair PinHair Pin
-
43504151921 Plug 1/8-27Plug 1/8-27
-
44501022400 CapCap
-
45405408500 Ball BearingBall Bearing
-
46501021800 Inner ShimInner Shim
-
47504151918 Oil Seal Ass'yOil Seal Ass'y
