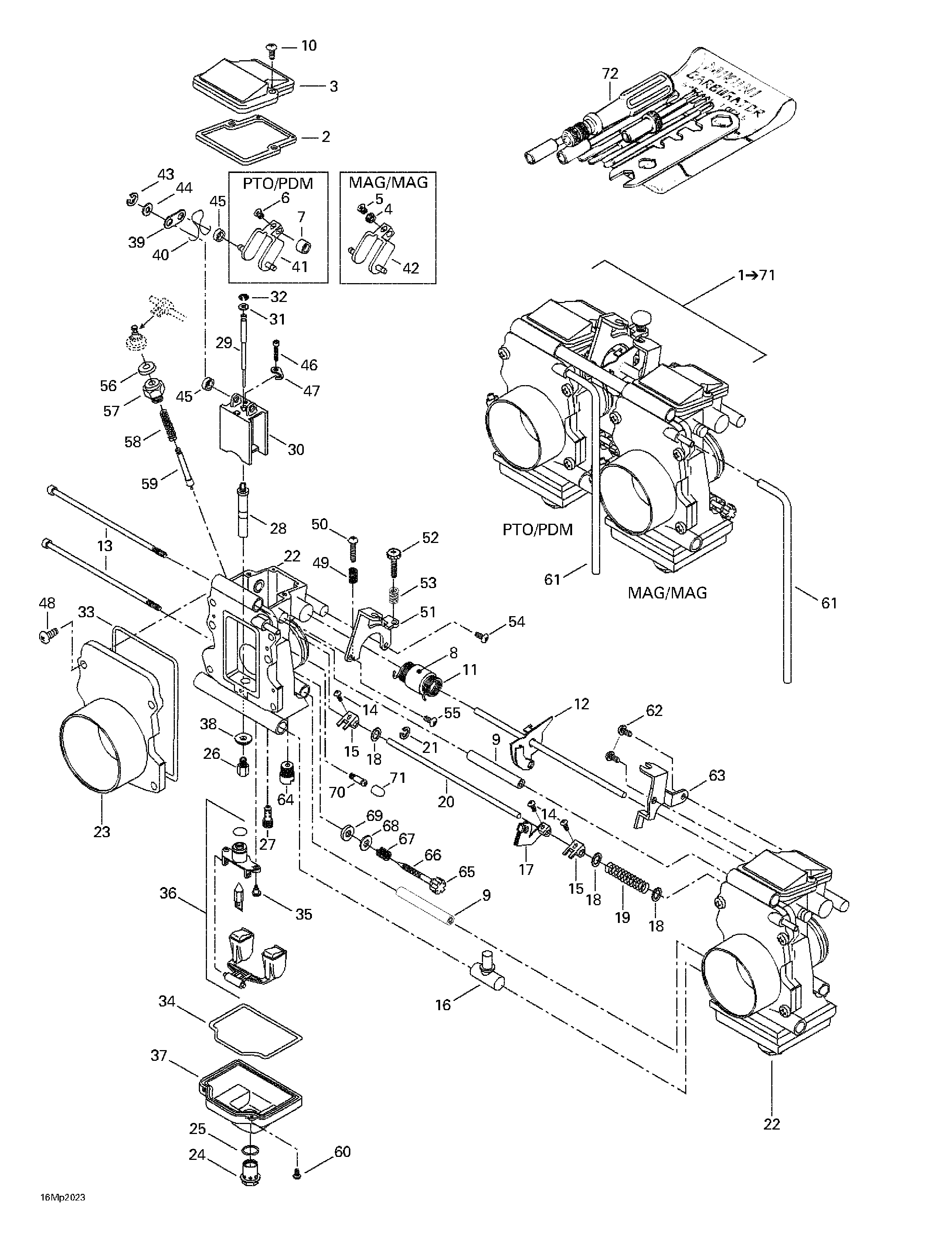

02- Carburetors для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
11403138590 CarburetorKitTM-40-B43CarburetorKitTM-40-B43
-
2404161940 GasketGasket
-
3404161939 CoverCover
-
4404161937 Ring (MAG)Ring (MAG)
-
5404161936 Screw (MAG)Screw (MAG)
-
6404161928 Screw (PTO)Screw (PTO)
-
7404161926 Ring (PTO)Ring (PTO)
-
8404161925 RingRing
-
9404161924 RingRing
-
10404161923 ScrewScrew
-
11404161915 SpringSpring
-
12404161914 Throttle ShaftThrottle Shaft
-
13404161911 ScrewScrew
-
14404161910 ScrewScrew
-
15404161909 LeverLever
-
16404161905 NippleNipple
-
17404161901 Starter LeverStarter Lever
-
18404161894 PackingPacking
-
19404103500 SpringSpring
-
20404161892 ShaftShaft
-
21414439000 E-RingE-Ring
-
23404161947 FunnelFunnel
-
24404161946 Drain ScrewDrain Screw
-
25404161945 O'RingO'Ring
-
26404106500 Main Jet 450Main Jet 450
-
27404161944 Pilot Jet 17.5Pilot Jet 17.5
-
28404161943 Needle JetNeedle Jet
-
29404161942 Needle J8-9HIY01-52Needle J8-9HIY01-52
-
30404161941 Needle Valve 2.0Needle Valve 2.0
-
31404137600 PackingPacking
-
32404152200 E-RingE-Ring
-
33404161935 O'RingO'Ring
-
34404161934 O'RingO'Ring
-
35404161933 ScrewScrew
-
36404161932 FloatFloat
-
37404161931 Float Body Ass'yFloat Body Ass'y
-
38404161862 WasherWasher
-
39404161930 PlatePlate
-
40404161929 ClipClip
-
41404161927 Lever Ass'y (PTO)Lever Ass'y (PTO)
-
42404161938 Lever Ass'y (MAG)Lever Ass'y (MAG)
-
43404138300 E-RingE-Ring
-
44404161922 WasherWasher
-
45404161921 RingRing
-
46404161920 ScrewScrew
-
47404161919 PlatePlate
-
48404138800 ScrewScrew
-
49404161918 Spring (PTO)Spring (PTO)
-
50404161917 Screw (PTO)Screw (PTO)
-
51404161916 Bracket (PTO)Bracket (PTO)
-
52404137500 Adjustment Screw (PTO)Adjustment Screw (PTO)
-
53404161913 Spring (PTO)Spring (PTO)
-
54404161912 Screw (PTO)Screw (PTO)
-
55404136100 Screw (PTO)Screw (PTO)
-
56404140000 CapCap
-
57404136900 Holder GuideHolder Guide
-
58404161908 SpringSpring
-
59404161907 Plunger Ass'yPlunger Ass'y
-
60404161906 ScrewScrew
-
61404161904 HoseHose
-
62404161903 Screw (MAG)Screw (MAG)
-
63404161902 Bracket (MAG)Bracket (MAG)
-
64404161900 JetJet
-
65404161899 CapCap
-
66404161898 AdjusterAdjuster
-
67404161897 SpringSpring
-
68404161896 WasherWasher
-
69404161895 PackingPacking
-
70404153400 NippleNipple
-
71404154900 CapCap
-
72404112000 Tool KitTool Kit
