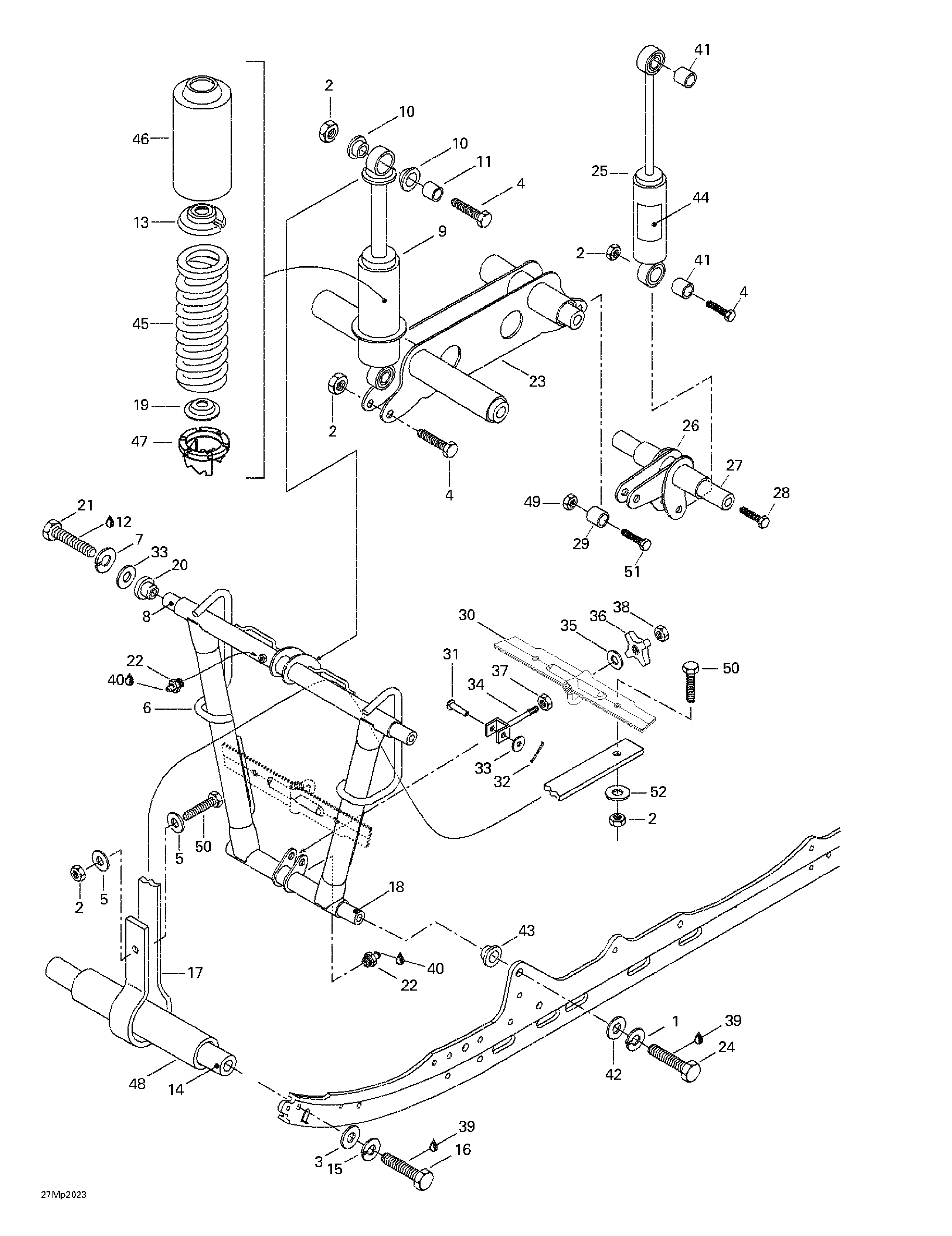

08- Front Arm для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1234120602 Lock Spring Washer 12 mmLock Spring Washer 12 mm
-
2232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5224081301 Flat WasherFlat Washer
-
7234101601 Lock Washer 10 mmLock Washer 10 mm
-
8503188938 ShaftShaft
-
9503188914 Center ShockCenter Shock
-
10503189364 BushingBushing
-
11503189363 SleeveSleeve
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13503140600 Spring StopperSpring Stopper
-
14503151600 AxleAxle
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
17503189450 Stopper StrapStopper Strap
-
18503189313 ShaftShaft
-
19503165100 Spring GuideSpring Guide
-
20503189324 BushingBushing
-
21207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
22408200700 Grease Fitting M6Grease Fitting M6
-
23503173300 Shock SupportShock Support
-
24207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
25503188917 Rear ShockRear Shock
-
26503189440 Rear Shock SupportRear Shock Support
-
27503188700 Wheel AxleWheel Axle
-
28207503544 Hex. Flanged Screw M10 x 35Hex. Flanged Screw M10 x 35
-
29503189448 SpacerSpacer
-
30503188400 Belt BracketBelt Bracket
-
31415016200 Clevis PinClevis Pin
-
32371801000 Cotter PinCotter Pin
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34503169300 StopperStopper
-
35224002251 Flat WasherFlat Washer
-
36572034000 Adjuster KnobAdjuster Knob
-
37232006414 Hex. Nut M10Hex. Nut M10
-
38233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
40219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
41414936000 CushionCushion
-
42234021410 Flat Washer 12 mmFlat Washer 12 mm
-
43503189323 CushionCushion
-
44516000182 Shock Decal (HPG)Shock Decal (HPG)
-
45415070100 SpringSpring
-
46503188930 ProtectorProtector
-
47503169000 CamCam
-
48503189265 SpacerSpacer
-
49232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
50207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
51207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
52503183100 WasherWasher
