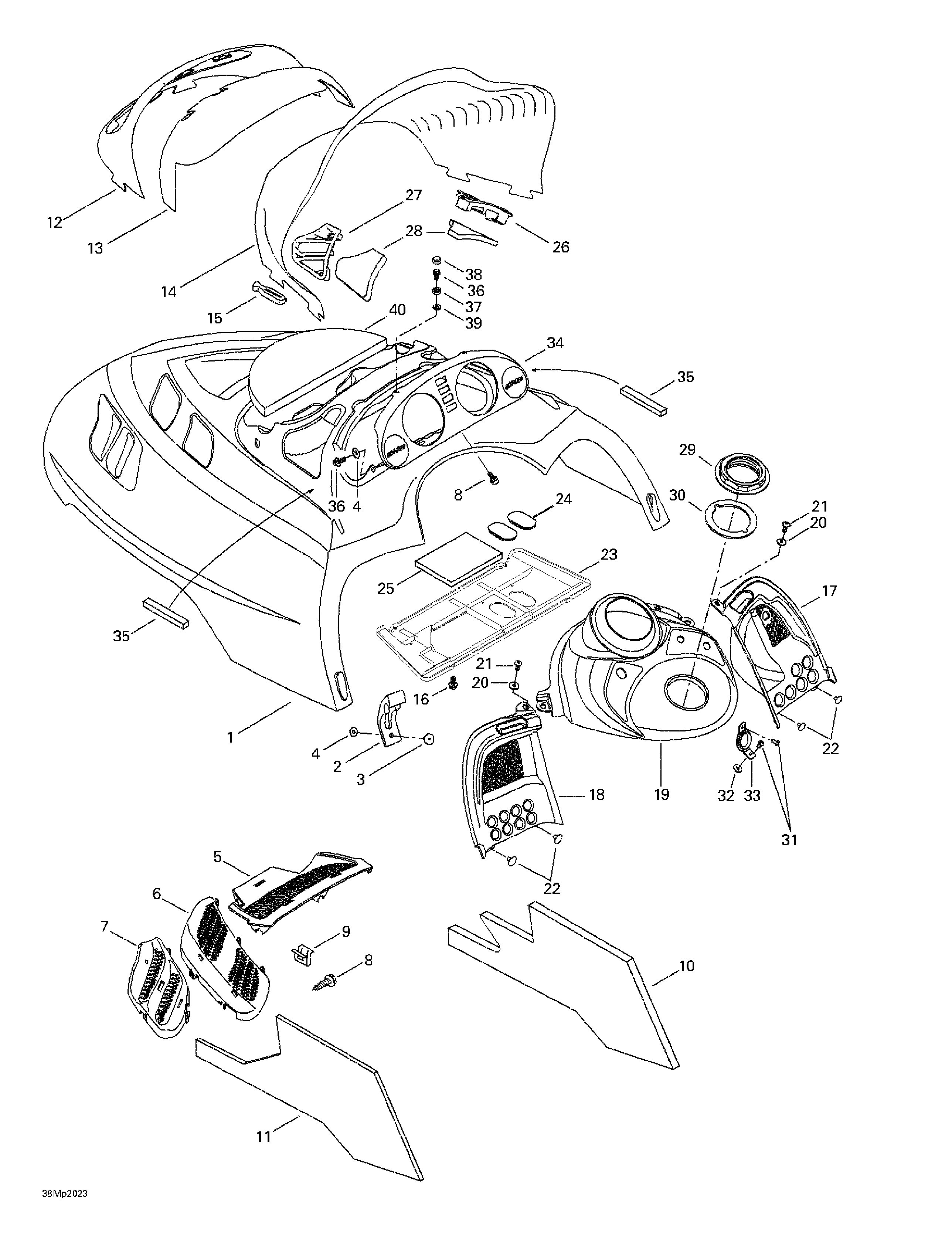

09- Cab, Console для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1517302411 HoodHood
-
2570027100 Hood LatchHood Latch
-
3390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
517302031 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302183 ClipClip
-
10517302371 R.H. Side FoamR.H. Side Foam
-
11517302372 L.H. Side FoamL.H. Side Foam
-
12517302158 Headlamp MouldingHeadlamp Moulding
-
13517302003 Windshield SupportWindshield Support
-
14517302022 WindshieldWindshield
-
15570023800 Windshield LatchWindshield Latch
-
16243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
17517302005 R.H. ConsoleR.H. Console
-
18517302006 L.H. ConsoleL.H. Console
-
19517302378 Center ConsoleCenter Console
-
20391301600 Flat WasherFlat Washer
-
21732600030 ScrewScrew
-
22390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517302415 Air Intake PlateAir Intake Plate
-
24570053702 Cap Bottom PanCap Bottom Pan
-
25517302425 Secondary FoamSecondary Foam
-
26517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
27517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
28517302151 Air Intake FoamAir Intake Foam
-
29517302043 Console NutConsole Nut
-
30293250029 GasketGasket
-
31390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
32517302286 Rubber StopperRubber Stopper
-
33517302129 Rope GuideRope Guide
-
34572098604 Indicator SupportIndicator Support
-
35517302420 FoamFoam
-
36241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
37414436800 Retainer CapRetainer Cap
-
38414436900 Snap Cap (Black)Snap Cap (Black)
-
39234042600 Flat Washer 4 mmFlat Washer 4 mm
-
40517302317 Center FoamCenter Foam
