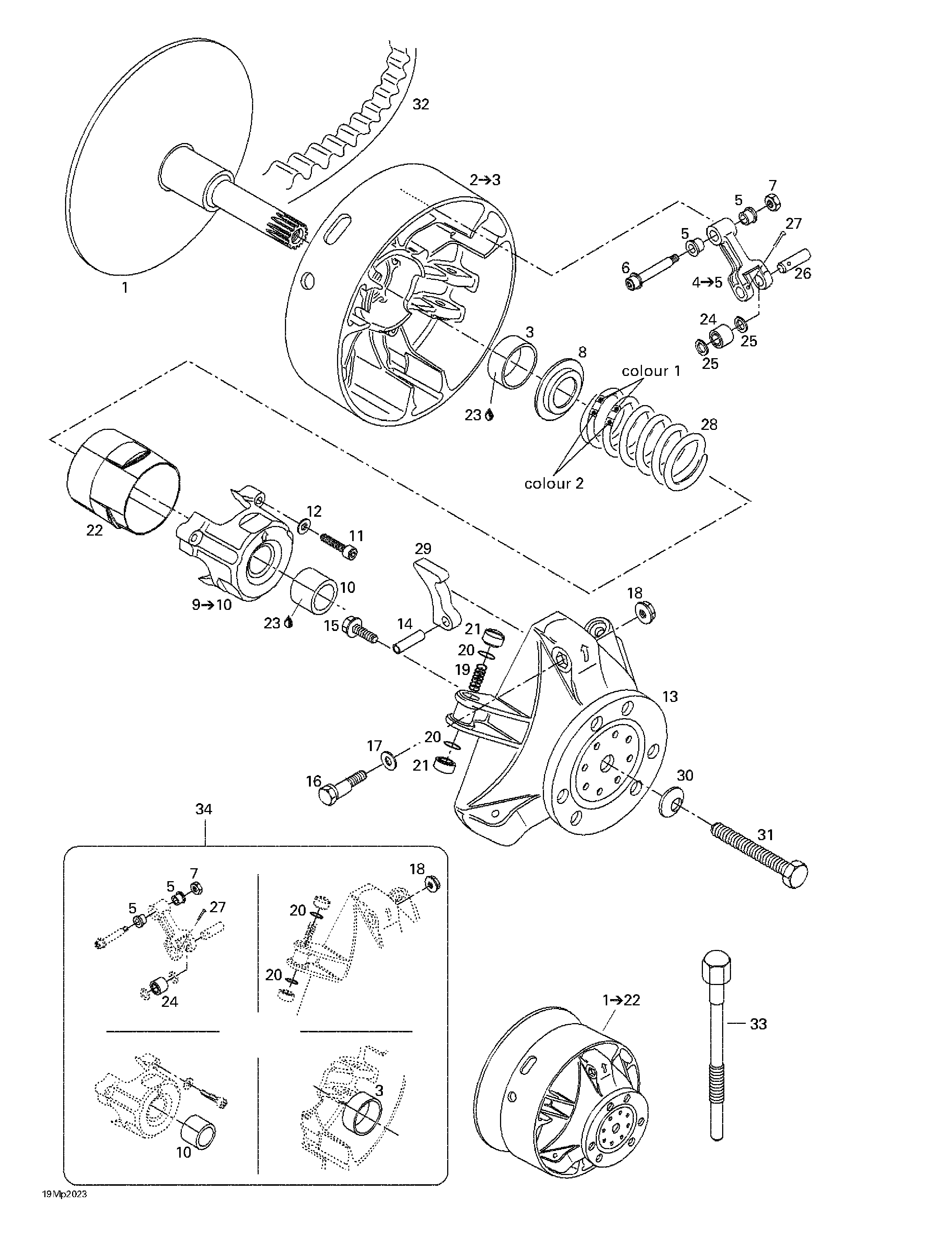

05- Drive Pulley для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1417222324 DrivePulleyAss'yDrivePulleyAss'y
-
1417222130 Fixed FlangeFixed Flange
-
2417222027 SlidingFlangeAss'ySlidingFlangeAss'y
-
3417004201 BushingBushing
-
4417003801 Lever Ass'yLever Ass'y
-
5417004305 BushingBushing
-
6417222028 Screw Ass'yScrew Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222298 SpringCoverAss'y. Includes 9 - 10.SpringCoverAss'y. Includes 9 - 10.
-
10417004501 BushingBushing
-
11250000038 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
14732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
15210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417222107 Slider ShoeSlider Shoe
-
22417222176 GuardGuard
-
23413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
24417003900 Roller Ass'yRoller Ass'y
-
25417004302 Stopper WasherStopper Washer
-
26417004308 PinPin
-
27732958001 Cotter PinCotter Pin
-
28414639000 Spring (Blue/Orange)Spring (Blue/Orange)
-
29417005295 Ramp 295Ramp 295
-
30250200006 Conical Spring WasherConical Spring Washer
-
31417120000 Drive Pulley BoltDrive Pulley Bolt
-
32417300127 Drive BeltDrive Belt
-
33529022400 Puller Inner HalfPuller Inner Half
-
34417006100 ClutchRepairKitClutchRepairKit
