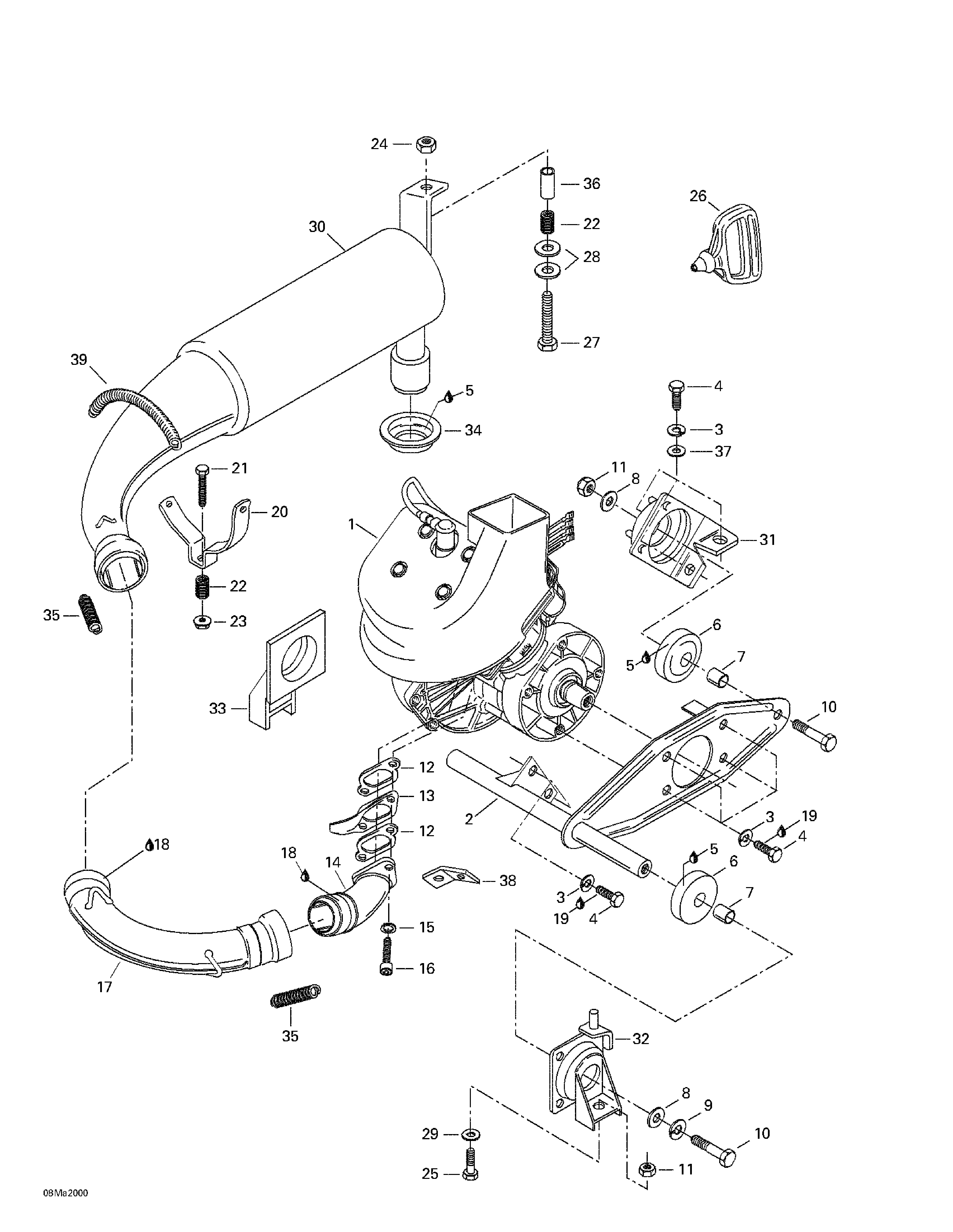

01- Engine Support And Muffler для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1400206003 ROTAX Engine >ROTAX Engine >
-
2512059034 Engine SupportEngine Support
-
3234181401 Lock Washer 8 mmLock Washer 8 mm
-
4207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
5293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
6570126800 Mounting Rubber. Includes 6 - 7.Mounting Rubber. Includes 6 - 7.
-
7517167100 BushingBushing
-
8506063100 WasherWasher
-
9234101402 Lock Washer 10 mmLock Washer 10 mm
-
10207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12420831847 Gasket 1 mmGasket 1 mm
-
13420975720 Air DeflectorAir Deflector
-
14420978836 Exhaust ManifoldExhaust Manifold
-
15420945752 Lock Washer 8 mmLock Washer 8 mm
-
16205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
17514050300 Exhaust ElbowExhaust Elbow
-
18413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
19293800015 Loctite 242, 10 mlLoctite 242, 10 ml
-
20514017900 Muffler SupportMuffler Support
-
21207064544 Hex. Screw M6 x 45Hex. Screw M6 x 45
-
22414913700 SpringSpring
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
26572084400 Starter HandleStarter Handle
-
27207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29732900051 Flat WasherFlat Washer
-
30514050200 MufflerMuffler
-
31512050400 Rear SupportRear Support
-
32512048400 L.H. Front SupportL.H. Front Support
-
33512048300 R.H. Front SupportR.H. Front Support
-
34570141300 Exhaust GrommetExhaust Grommet
-
35517182100 SpringSpring
-
36514035800 GuideGuide
-
37224081201 Flat WasherFlat Washer
-
38420953170 Spring BracketSpring Bracket
-
39517268300 SpringSpring
-
40420992068 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
