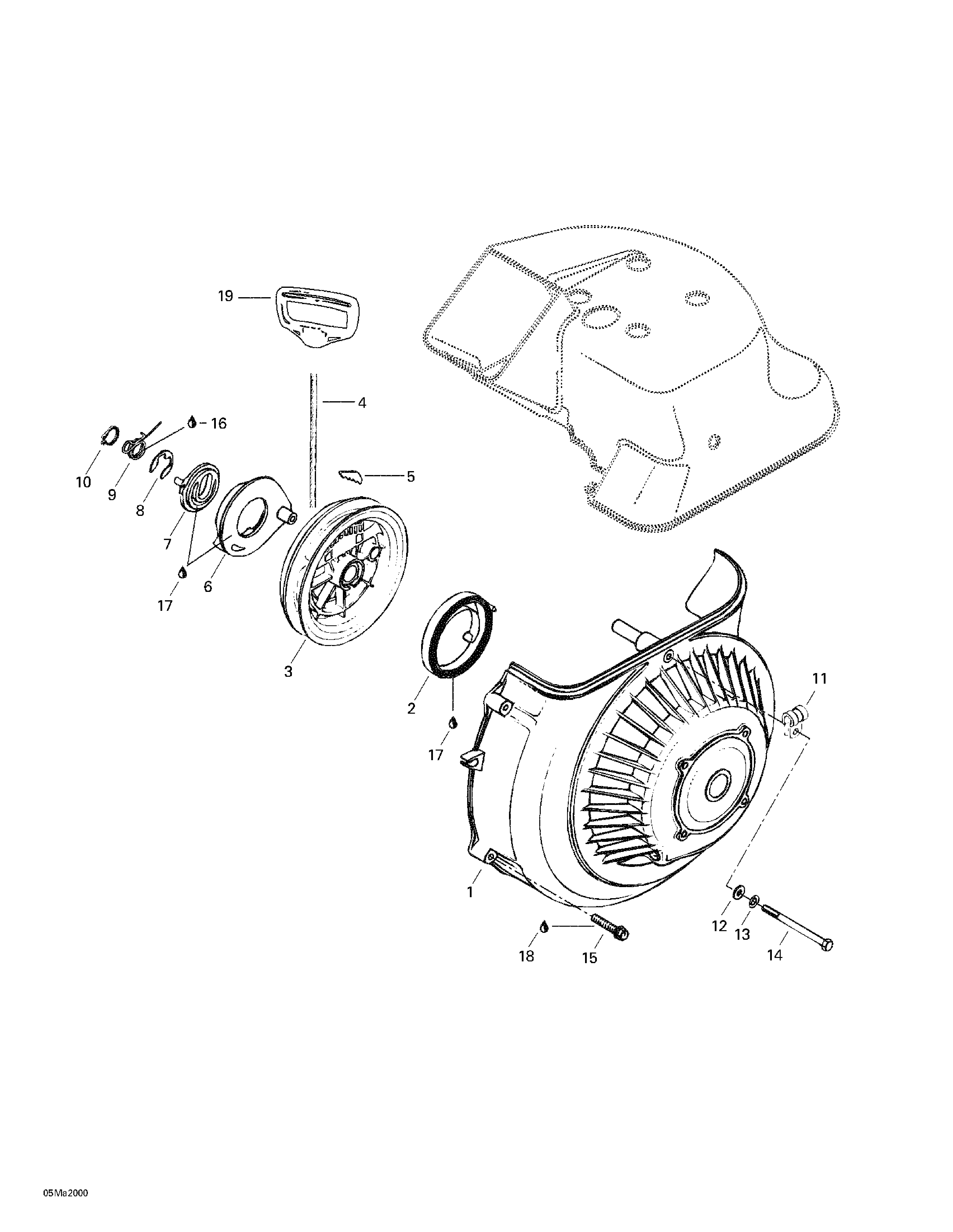

04- Rewind Starter для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1420994889 Rewind Starter. Includes 1 - 10.Rewind Starter. Includes 1 - 10.
-
1420810287 Fan CowlFan Cowl
-
2420939115 Rewind SpringRewind Spring
-
3420852283 Rope SheaveRope Sheave
-
4412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
5420852070 Key ClampKey Clamp
-
6420852293 PawlPawl
-
7420852301 Pawl LockPawl Lock
-
8420845300 CirclipCirclip
-
9420938986 Pawl SpringPawl Spring
-
10420945770 Lock RingLock Ring
-
11420851240 ClampClamp
-
12224061121 Flat Washer 6.4 mmFlat Washer 6.4 mm
-
13420945751 Lock Washer 6 mmLock Washer 6 mm
-
14222067565 Hex. Screw M6 x 75Hex. Screw M6 x 75
-
15420640411 Tapping Screw M6 x 35Tapping Screw M6 x 35
-
17420897061 Silicone Compound GreaseSilicone Compound Grease
-
18293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
19572084400 Starter HandleStarter Handle
