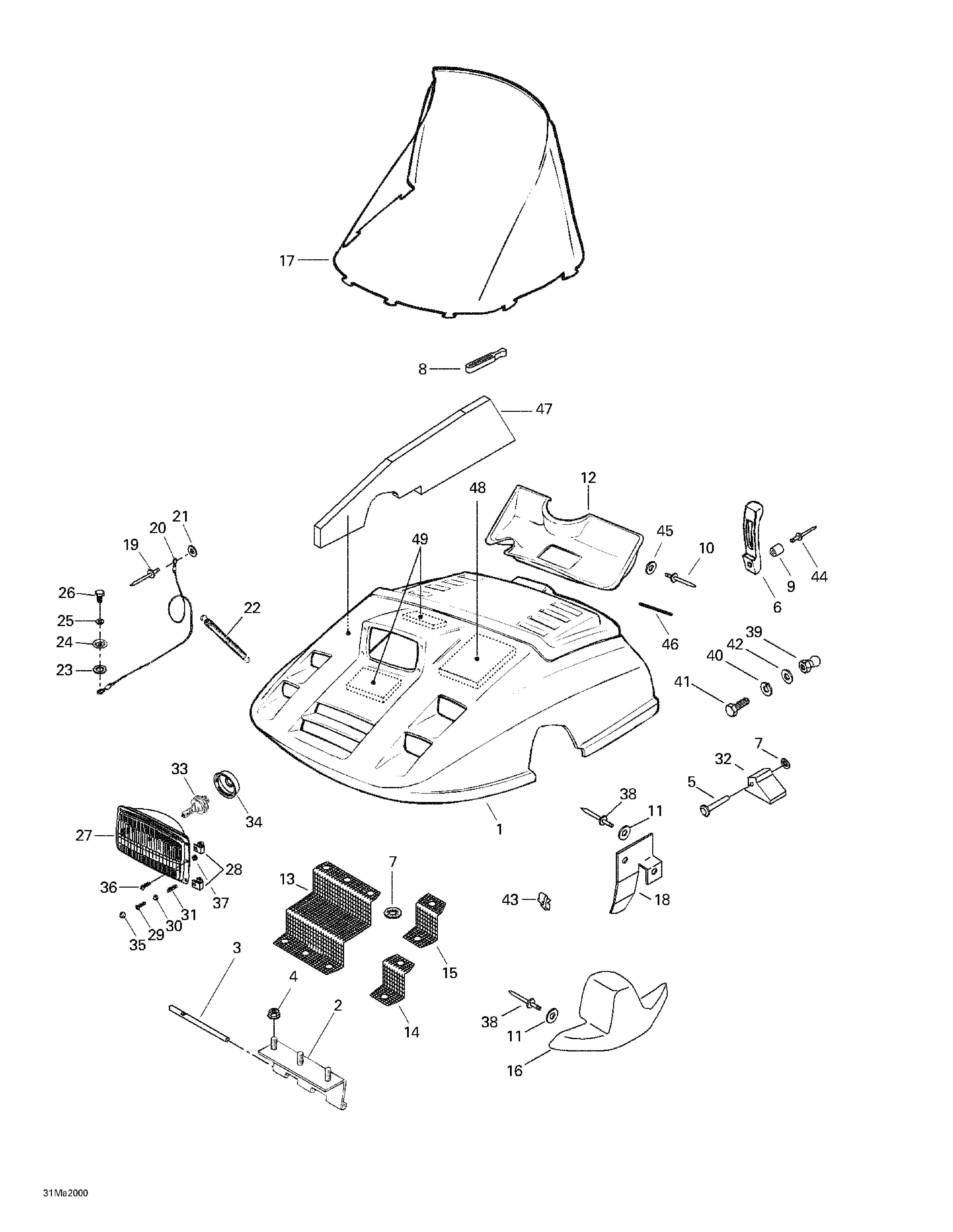

09- Frame And Body 3 для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1572048102 HoodHood
-
2517182200 Cab HingeCab Hinge
-
3517279800 Pivot AxlePivot Axle
-
4233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
5390907000 RivetRivet
-
6570025900 Hood LatchHood Latch
-
7389804300 Push NutPush Nut
-
8570023800 Windshield LatchWindshield Latch
-
9517245900 BushingBushing
-
10390400400 Pop Rivet (Yellow)Pop Rivet (Yellow)
-
11517225900 Flat WasherFlat Washer
-
12414804000 Air DuctAir Duct
-
13517251700 Center Front GrillCenter Front Grill
-
14517251800 Lower Front GrillLower Front Grill
-
15517270600 R.H Upper Front GrillR.H Upper Front Grill
-
517270700 L.H. Upper Front GrillL.H. Upper Front Grill
-
16572038900 R.H. Cab MouldingR.H. Cab Moulding
-
572038800 L.H. Cab MouldingL.H. Cab Moulding
-
17414829400 WindshieldWindshield
-
18517261300 R.H. Hood GuideR.H. Hood Guide
-
517251500 L.H. Hood GuideL.H. Hood Guide
-
19390409600 Pop Rivet (Black)Pop Rivet (Black)
-
20414581400 Cab Retainer CableCab Retainer Cable
-
21517124300 WasherWasher
-
22414763300 SpringSpring
-
23420960860 Rubber WasherRubber Washer
-
24420827140 Cowl CoverCowl Cover
-
25420945752 Lock Washer M8Lock Washer M8
-
26207182544 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
27410606800 HeadlampHeadlamp
-
28572378700 Special NutSpecial Nut
-
29243244040 Plastite Phillips Screw M4 x 40Plastite Phillips Screw M4 x 40
-
30414436800 Cap RetainerCap Retainer
-
31517166000 SpringSpring
-
32570038700 Guide-HoodGuide-Hood
-
33410503700 Halogen BulbHalogen Bulb
-
34410607100 Protector CapProtector Cap
-
35414768500 Yellow Snap CapYellow Snap Cap
-
36410603300 Slotted ScrewSlotted Screw
-
37410604400 GrommetGrommet
-
38390407200 Pop RivetPop Rivet
-
39517245800 ButtonButton
-
40234151401 Lock Washer 5 mmLock Washer 5 mm
-
41207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
42391301700 Flat WasherFlat Washer
-
43414095100 ClipClip
-
44390906800 Pop rivetPop rivet
-
45213200016 Flat WasherFlat Washer
-
46293200017 Neoprene SealNeoprene Seal
-
47517302204 R.H. FoamR.H. Foam
-
414867100 L.H. FoamL.H. Foam
-
48414829600 FoamFoam
-
49414829800 Front FoamFront Foam
