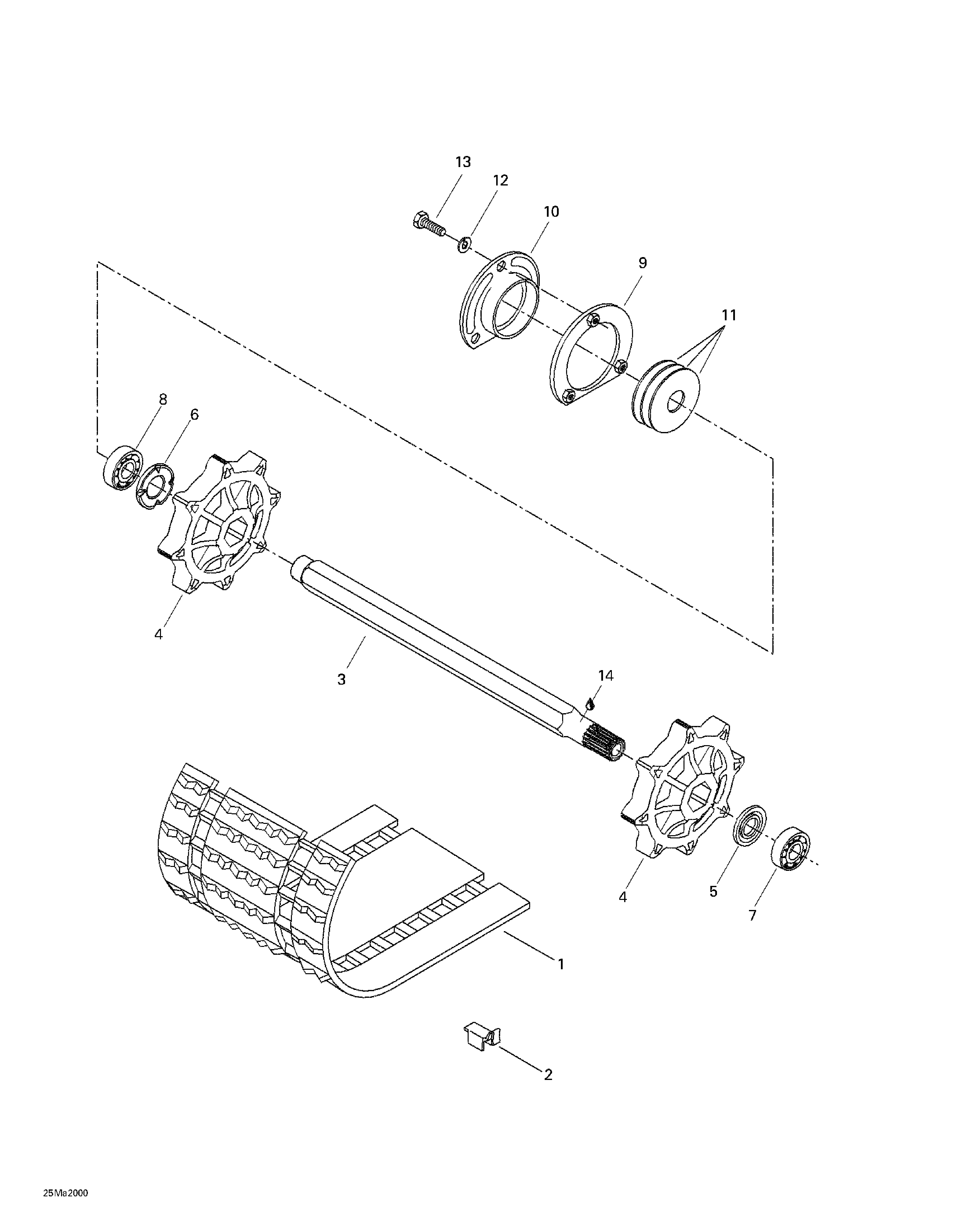

05- Drive Axle And Track для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1504151833 Track Ass'y. Includes 1 - 2.Track Ass'y. Includes 1 - 2.
-
2500002700 Guide CleatGuide Cleat
-
3504151800 Drive AxleDrive Axle
-
4504151817 SprocketSprocket
-
5581101700 SealSeal
-
6501017400 Bearing ProtectorBearing Protector
-
7405404400 Ball Bearing 6205Ball Bearing 6205
-
8405404500 Ball BearingBall Bearing
-
9501015200 Retainer RingRetainer Ring
-
10501019500 End Bearing HousingEnd Bearing Housing
-
11501020500 WasherWasher
-
12234161471 Lock Washer 6 mmLock Washer 6 mm
-
13207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
14219700417 Synthetic Grease, 400gSynthetic Grease, 400g
