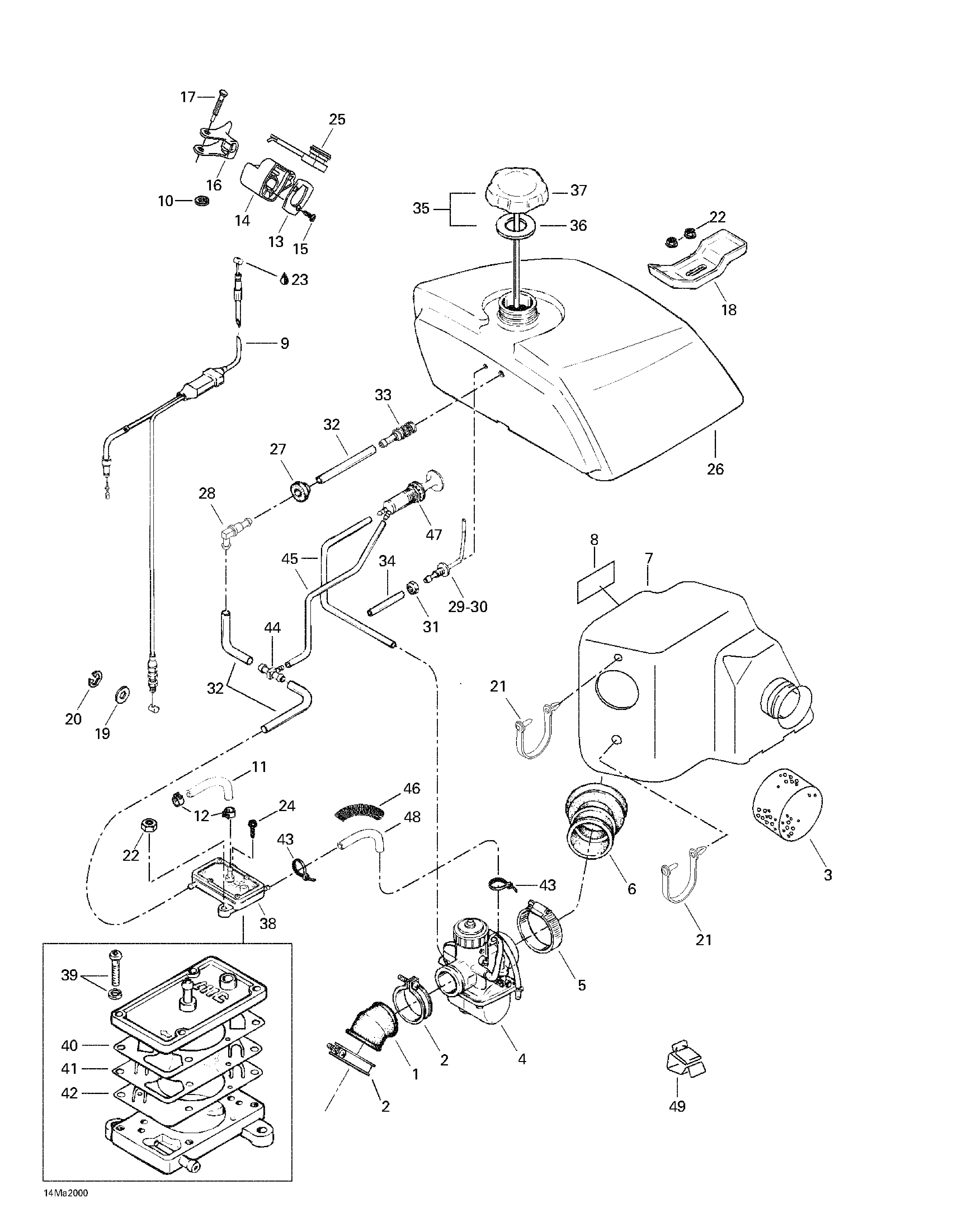

02- Fuel System для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1570025400 Rubber FlangeRubber Flange
-
2408801900 Gear ClampGear Clamp
-
3414819900 Air FilterAir Filter
-
4403138598 Carburetor VM 34-551Carburetor VM 34-551
-
5408802000 Gear ClampGear Clamp
-
6570136300 Intake AdaptorIntake Adaptor
-
7572107901 Air SilencerAir Silencer
-
8516000130 Caution LabelCaution Label
-
9512059040 Throttle Cable and HousingThrottle Cable and Housing
-
10371904000 CirclipCirclip
-
11415079800 HoseHose
-
12414415200 Spring ClampSpring Clamp
-
13572066200 CapCap
-
14572065400 Throttle Handle HousingThrottle Handle Housing
-
15243231640 Plastite Screw M3 x 16Plastite Screw M3 x 16
-
16512059053 Throttle HandleThrottle Handle
-
17414242700 PinPin
-
18517159500 Seat BracketSeat Bracket
-
19414753300 WasherWasher
-
20414753500 CirclipCirclip
-
21414379300 ClipClip
-
22233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24365901100 Hex. Tapping ScrewHex. Tapping Screw
-
25515175409 Kill SwitchKill Switch
-
26513032960 Fuel TankFuel Tank
-
27570135100 GrommetGrommet
-
28414580600 Elbow Male ConnectorElbow Male Connector
-
29513031100 Air Vent Fitting Ass'y. Includes 29 - 30.Air Vent Fitting Ass'y. Includes 29 - 30.
-
30513031701 FittingFitting
-
31396302200 Hex. Nut 5/16-18Hex. Nut 5/16-18
-
32415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
33414865700 Fuel FilterFuel Filter
-
34415080100 Hose (1280 mm)Hose (1280 mm)
-
35572138300 Fuel Tank Cap. Includes 35 - 36.Fuel Tank Cap. Includes 35 - 36.
-
36570134800 GasketGasket
-
37580259400 Fuel Cap TankFuel Cap Tank
-
38403800800 Fuel Pump Ass'y. Includes 38 - 42.Fuel Pump Ass'y. Includes 38 - 42.
-
39404118500 ScrewScrew
-
40404901600 Packing (Cap)Packing (Cap)
-
41404901700 DiaphragmDiaphragm
-
42404901800 MembraneMembrane
-
43414115200 Tie RapTie Rap
-
44414222500 T-FittingT-Fitting
-
45415080100 Primer LinePrimer Line
-
46415079900 TubingTubing
-
47415060500 Primer ValvePrimer Valve
-
48513032932 Formed HoseFormed Hose
-
49414227300 ClipClip
