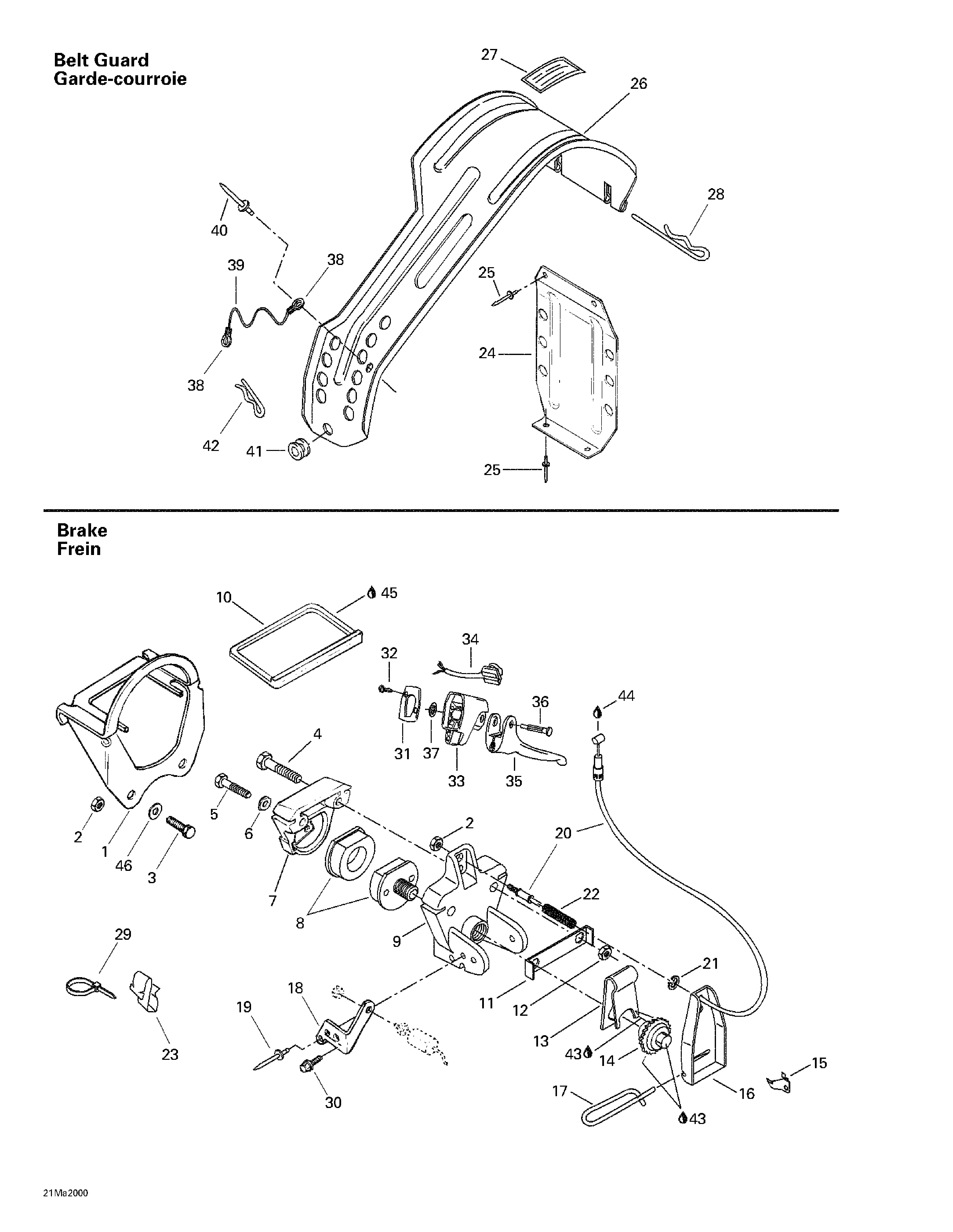

06- Brake And Belt Guard для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1507032201 Brake Support (Caliper)Brake Support (Caliper)
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
4207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
5207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
6507023600 Lock TabLock Tab
-
7414466800 AnvilAnvil
-
8860700700 Brake Pad KitBrake Pad Kit
-
860700100 Brake Pad KitBrake Pad Kit
-
9507026600 Mobile Brake Lining HolderMobile Brake Lining Holder
-
10572013500 SliderSlider
-
11507020400 Lock TabLock Tab
-
12232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
13507020200 Release SpringRelease Spring
-
14507019600 Ratchet WheelRatchet Wheel
-
15507009400 Rachet SpringRachet Spring
-
16507021500 Brake LeverBrake Lever
-
17507027500 Hair PinHair Pin
-
18507026700 Stop Light Switch SupportStop Light Switch Support
-
19390402300 Pop RivetPop Rivet
-
20414920800 Brake Cable and HousingBrake Cable and Housing
-
21371901300 CirclipCirclip
-
22414460600 SpringSpring
-
23414227300 ClipClip
-
25390402400 Pop RivetPop Rivet
-
26517246300 Belt Guard (Pulley)Belt Guard (Pulley)
-
27516000132 Warning LabelWarning Label
-
28517164600 PinPin
-
29414115200 Tie-RapTie-Rap
-
30309904500 Hex. Taptite ScrewHex. Taptite Screw
-
31572066200 CapCap
-
32243231640 Plastite Screw M3 x 16Plastite Screw M3 x 16
-
33572067600 Brake Handle HousingBrake Handle Housing
-
34410213000 Dimmer SwitchDimmer Switch
-
35572066600 Brake HandleBrake Handle
-
36414179200 PinPin
-
37389804300 Push NutPush Nut
-
38561502800 Open BarrelOpen Barrel
-
40390403600 Pop Rivet (Black)Pop Rivet (Black)
-
41414036300 GrommetGrommet
-
42414575600 Hair PinHair Pin
-
43293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
45219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
46234061410 Flat Washer 6 mmFlat Washer 6 mm
