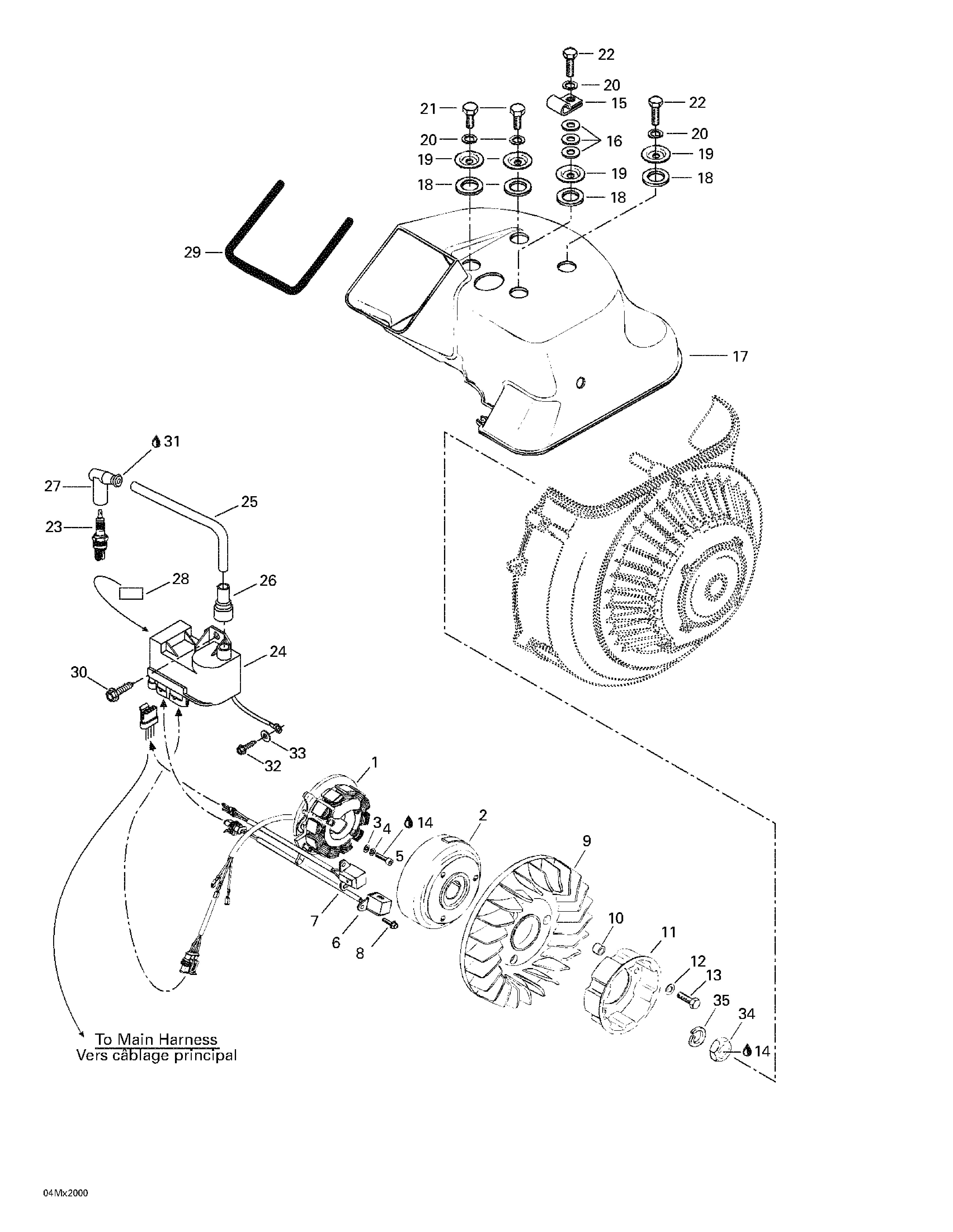

03- Magneto (tundra R) для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1420887658 Magneto 12V 240W Ass'y. Includes 1 - 2.Magneto 12V 240W Ass'y. Includes 1 - 2.
-
1420886608 Stator Plate Ass'yStator Plate Ass'y
-
2420996829 Magneto FlywheelMagneto Flywheel
-
3420927571 Washer 5.3 mmWasher 5.3 mm
-
4420945750 Lock Washer 5 mmLock Washer 5 mm
-
5420840515 Allen Screw M5 x 18Allen Screw M5 x 18
-
6420966542 Pick Up Ass'yPick Up Ass'y
-
7420966544 Pick Up Ass'yPick Up Ass'y
-
8420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
9420866435 FanFan
-
10420847440 Spacer BushingSpacer Bushing
-
11420852419 Starting PulleyStarting Pulley
-
12420945752 Lock Washer 8 mmLock Washer 8 mm
-
13207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
14293800015 Loctite 242, 10 mlLoctite 242, 10 ml
-
15414176000 ClipClip
-
16234081410 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
17420910022 Cylinder CowlCylinder Cowl
-
18420960860 Rubber WasherRubber Washer
-
19420827140 Cowl CoverCowl Cover
-
20420945752 Lock Washer 8 mmLock Washer 8 mm
-
21207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
22207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
23414961100 Spark Plug NGK BR9ESSpark Plug NGK BR9ES
-
24515175459 Calibration Module. Includes 24 - 27.Calibration Module. Includes 24 - 27.
-
25278001268 Spark Plug WireSpark Plug Wire
-
26515174900 Protection CapProtection Cap
-
27278000237 Spark Plug ProtectorSpark Plug Protector
-
28512059082 Check LabelCheck Label
-
29293250047 Neoprene SealNeoprene Seal
-
30365901400 Hex. Tapping ScrewHex. Tapping Screw
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32210251680 Forming Hex. Screw M5 x 16Forming Hex. Screw M5 x 16
-
33391301700 Flat WasherFlat Washer
-
34420842230 Hex. Nut M22Hex. Nut M22
-
35420945759 Lock Washer 22 mmLock Washer 22 mm
