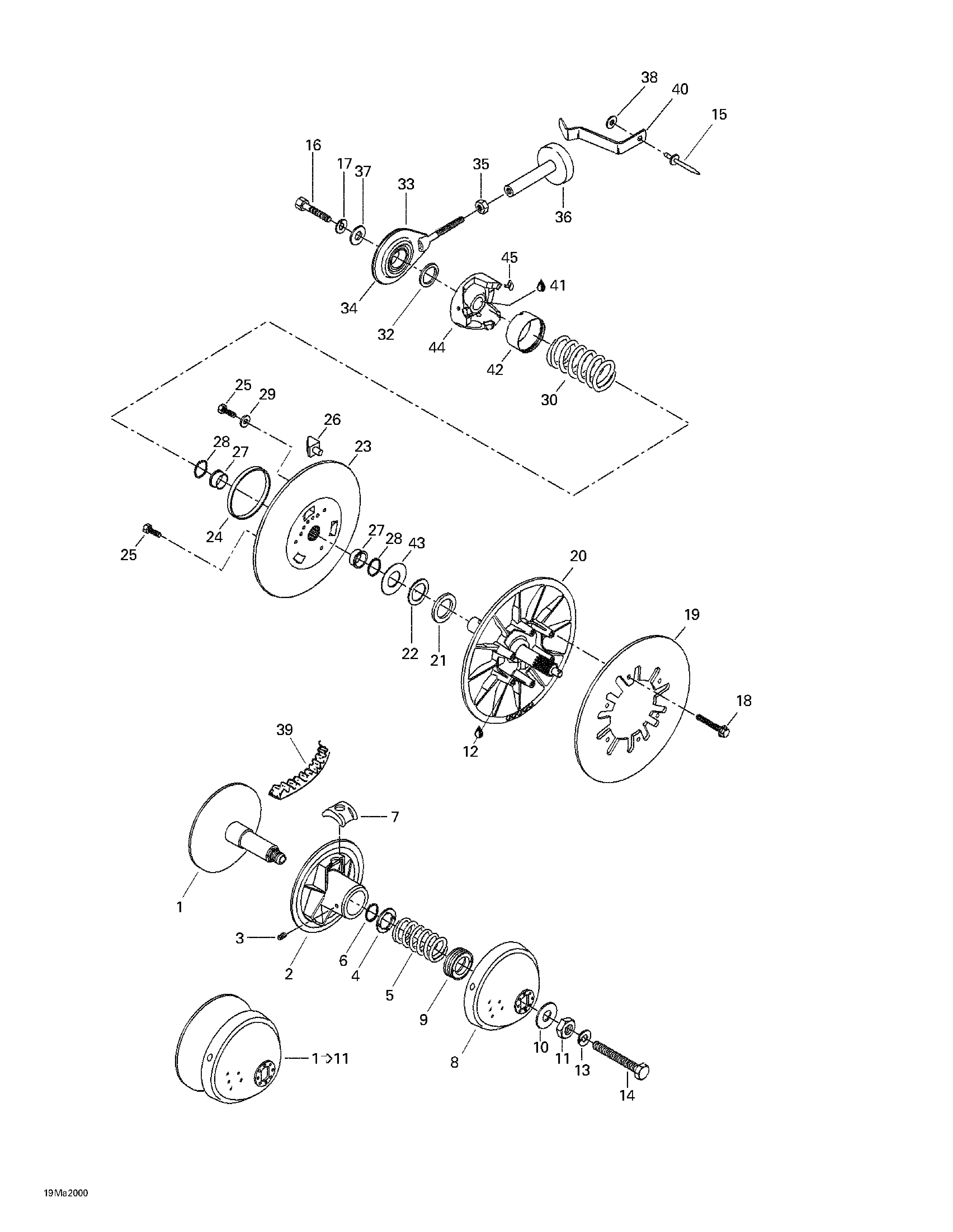

05- Pulleys для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1417222267 Drive Pulley Ass'y. Includes 1 - 11.Drive Pulley Ass'y. Includes 1 - 11.
-
1417116000 Flange-Inner HalfFlange-Inner Half
-
2417120500 Flange-OuterFlange-Outer
-
3417116800 Locking ScrewLocking Screw
-
4417116200 Washer-GuideWasher-Guide
-
5417115900 SpringSpring
-
6417116100 CirclipCirclip
-
7417222285 Centrifugal BlockCentrifugal Block
-
8417125200 CapCap
-
9417117300 Support-BushingSupport-Bushing
-
10417116500 Washer-RetainerWasher-Retainer
-
11417118300 NutNut
-
12413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
13392002800 Lock Spring WasherLock Spring Washer
-
14417113800 Drive Pulley BoltDrive Pulley Bolt
-
15390402500 Pop RivetPop Rivet
-
16207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
17234181401 Lock Washer 8 mmLock Washer 8 mm
-
18210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
19507032100 Brake DiskBrake Disk
-
20417124500 Flange Fixe Ass'yFlange Fixe Ass'y
-
21504112000 ShimShim
-
22504108200 ShimShim
-
23417126396 Sliding Flange Ass'y. Includes 23 - 29.Sliding Flange Ass'y. Includes 23 - 29.
-
24417126397 BushingBushing
-
25210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
26415099400 Back Cam ShoeBack Cam Shoe
-
28371911100 CirclipCirclip
-
29399910000 Flat WasherFlat Washer
-
30415094300 Release Spring (Yellow)Release Spring (Yellow)
-
31372900500 Dowel PinDowel Pin
-
32504003900 SpacerSpacer
-
33580593000 Driven Pulley Support Ass'y. Includes 33 - 34.Driven Pulley Support Ass'y. Includes 33 - 34.
-
34405401000 Ball BearingBall Bearing
-
35232081414 Hex. Nut M8Hex. Nut M8
-
36570028300 Rod RetainerRod Retainer
-
37517078700 WasherWasher
-
38391300800 Flat WasherFlat Washer
-
39414827600 Drive BeltDrive Belt
-
40414831800 SpringSpring
-
41219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
42417126349 ProtectorProtector
-
43504150400 Thrust WasherThrust Washer
-
44417126350 Outer Cam Ass'y. Includes 44 - 45.Outer Cam Ass'y. Includes 44 - 45.
-
45415094400 Cam Slider ShoeCam Slider Shoe
