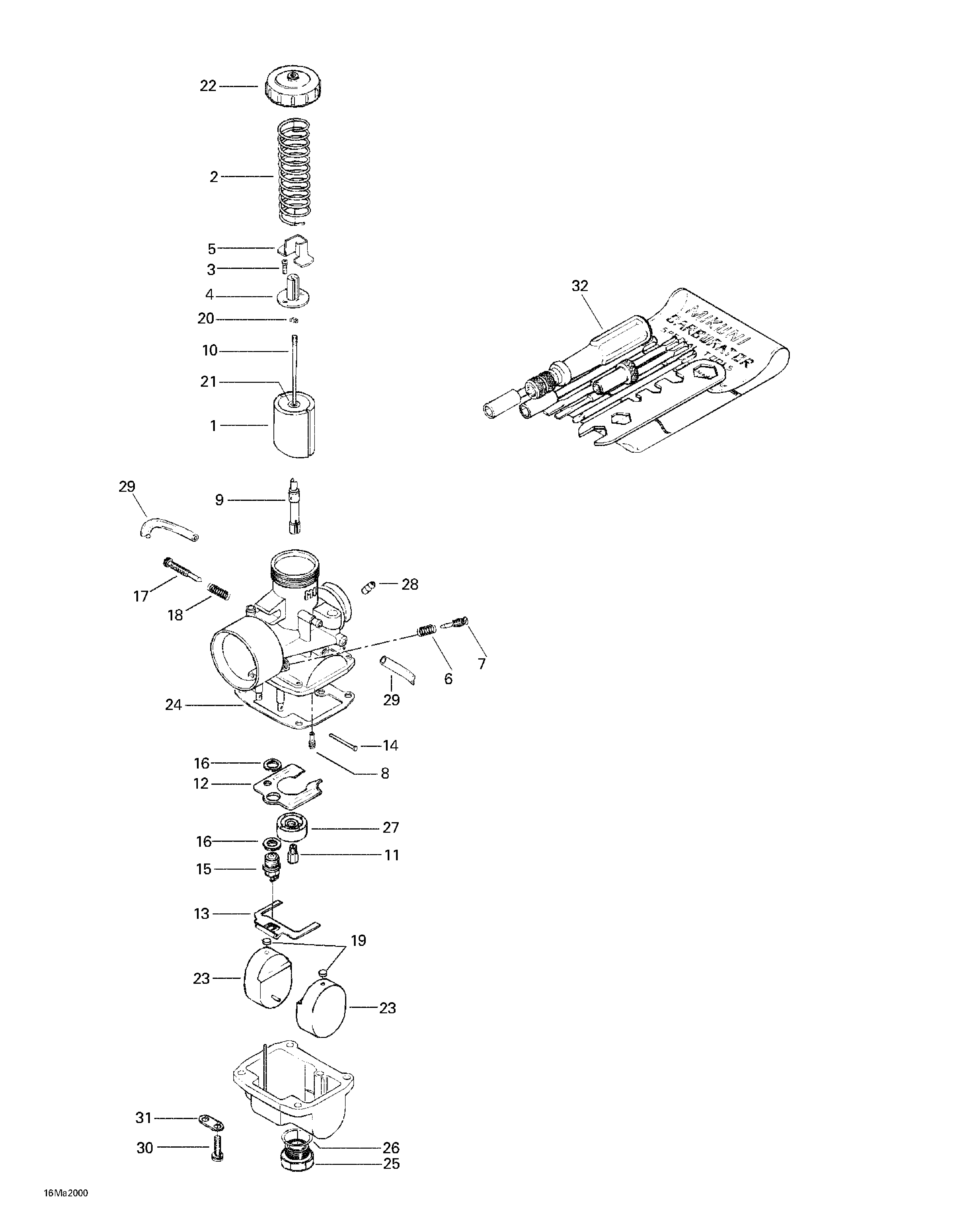

02- Carburetor для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
1403138598 Carburetor VM 34-551. Includes 1 - 32.Carburetor VM 34-551. Includes 1 - 32.
-
1404128400 Throttle Valve 2.5Throttle Valve 2.5
-
2404152700 Throttle Valve SpringThrottle Valve Spring
-
3404121300 Screw with Lock WasherScrew with Lock Washer
-
4404160800 ConnectorConnector
-
5404122100 CoverCover
-
6404101800 Idle Adjusting Screw SpringIdle Adjusting Screw Spring
-
7404102300 Idle Adjusting ScrewIdle Adjusting Screw
-
8404109100 Pilot Jet 40Pilot Jet 40
-
9404116900 Needle Jet 159-0-8Needle Jet 159-0-8
-
10404101900 Jet Needle J8-6DH4Jet Needle J8-6DH4
-
11404119000 Main Jet, MJ 190Main Jet, MJ 190
-
12404109600 Baffle PlateBaffle Plate
-
13404107600 Float ArmFloat Arm
-
14404103300 Float Arm PinFloat Arm Pin
-
15404103200 Needle ValveNeedle Valve
-
16404101600 GasketGasket
-
17404148700 Throttle Stop ScrewThrottle Stop Screw
-
18404101700 Throttle Stop Screw SpringThrottle Stop Screw Spring
-
19404105800 CapCap
-
20404152400 CirclipCirclip
-
21404117000 PackingPacking
-
22404103700 Mixing Chamber CoverMixing Chamber Cover
-
23404107100 FloatFloat
-
24404104200 GasketGasket
-
25404107400 Plug ScrewPlug Screw
-
26404107300 O-ringO-ring
-
27404110900 Baffle RingBaffle Ring
-
28404127600 NippleNipple
-
29404161802 Vent TubeVent Tube
-
30404102000 Screw with Lock WasherScrew with Lock Washer
-
31404103000 Tube Retainer PlateTube Retainer Plate
-
32404112000 Tool KitTool Kit
-
33861768900 High Altitude Kit (Not Shown)High Altitude Kit (Not Shown)
