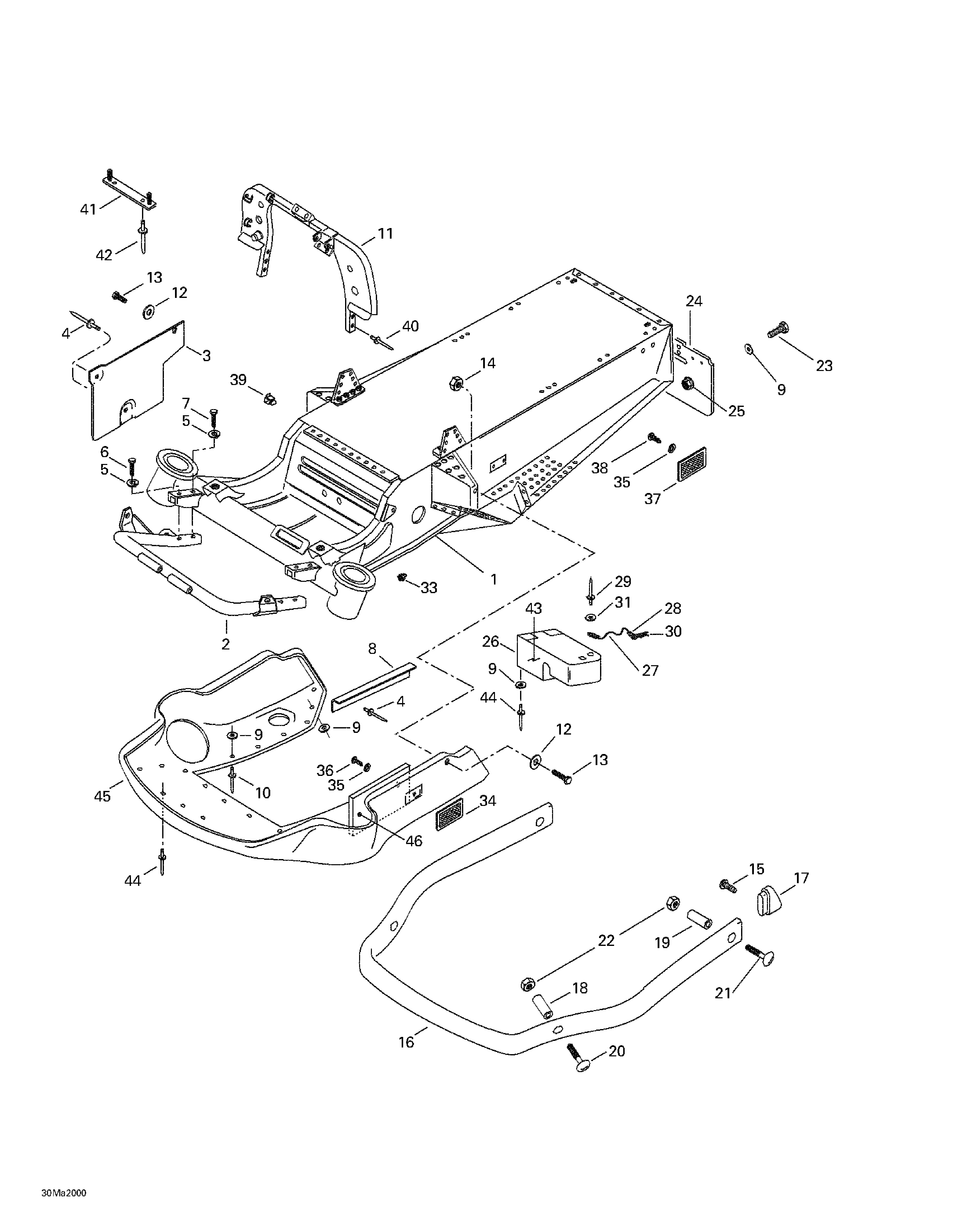

09- Frame And Body 2 для BRP Ski-Doo Tundra R - 2000
-
№АртикулНазвание
-
2518320200 Front BumperFront Bumper
-
3517299300 Heat ShieldHeat Shield
-
4390403600 Pop Rivet (Black)Pop Rivet (Black)
-
5234161471 Lock Washer 6 mmLock Washer 6 mm
-
6207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
7207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
8517259200 ReinforcementReinforcement
-
9517124300 WasherWasher
-
10390409600 Pop Rivet (Black)Pop Rivet (Black)
-
11518320300 Upper Column SupportUpper Column Support
-
12224061121 Flat WasherFlat Washer
-
13207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15209640940 Tapping Phillips ScrewTapping Phillips Screw
-
16517248810 BumperBumper
-
17572039300 Bumper CapBumper Cap
-
18517250600 BushingBushing
-
19517250700 BushingBushing
-
20207787541 Carriage Screw M8 x 75Carriage Screw M8 x 75
-
21207785541 Carriage Screw M8 x 55Carriage Screw M8 x 55
-
22232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
23207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
24572013800 Snow GuardSnow Guard
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26414624900 Tool Box. Includes 26 - 32.Tool Box. Includes 26 - 32.
-
27414407400 WireWire
-
28561502800 Ring TerminalRing Terminal
-
30414575600 Wave PinWave Pin
-
31391301000 WasherWasher
-
32517168500 LatchLatch
-
33408200700 Grease FittingGrease Fitting
-
34414510200 Amber ReflectorAmber Reflector
-
35234451418 External Tooth Lock Washer 5 mmExternal Tooth Lock Washer 5 mm
-
36208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
37414510100 Red ReflectorRed Reflector
-
38208650841 Phillips Screw M5 x 8Phillips Screw M5 x 8
-
39414227300 ClipClip
-
40390411300 Pop RivetPop Rivet
-
41517278800 Retainer PlateRetainer Plate
-
42390402400 Pop RivetPop Rivet
-
43529034300 Tool KitTool Kit
-
529014800 Wrench Socket 21/26 mmWrench Socket 21/26 mm
-
529019200 Screw DriverScrew Driver
-
529014900 Wrench Socket 10/13 mmWrench Socket 10/13 mm
-
412500100 Rope-StarterRope-Starter
-
529024400 Adaptor-RopeAdaptor-Rope
-
529017300 Wrench-Fork 10/13 mmWrench-Fork 10/13 mm
-
529019300 Wrench-Fork 15/17 mmWrench-Fork 15/17 mm
-
529014700 Multiple WrenchMultiple Wrench
-
529034200 Drive Belt InstallerDrive Belt Installer
-
44390906800 RivetRivet
-
45502006587 Bottom PanBottom Pan
-
46502006541 FoamFoam
