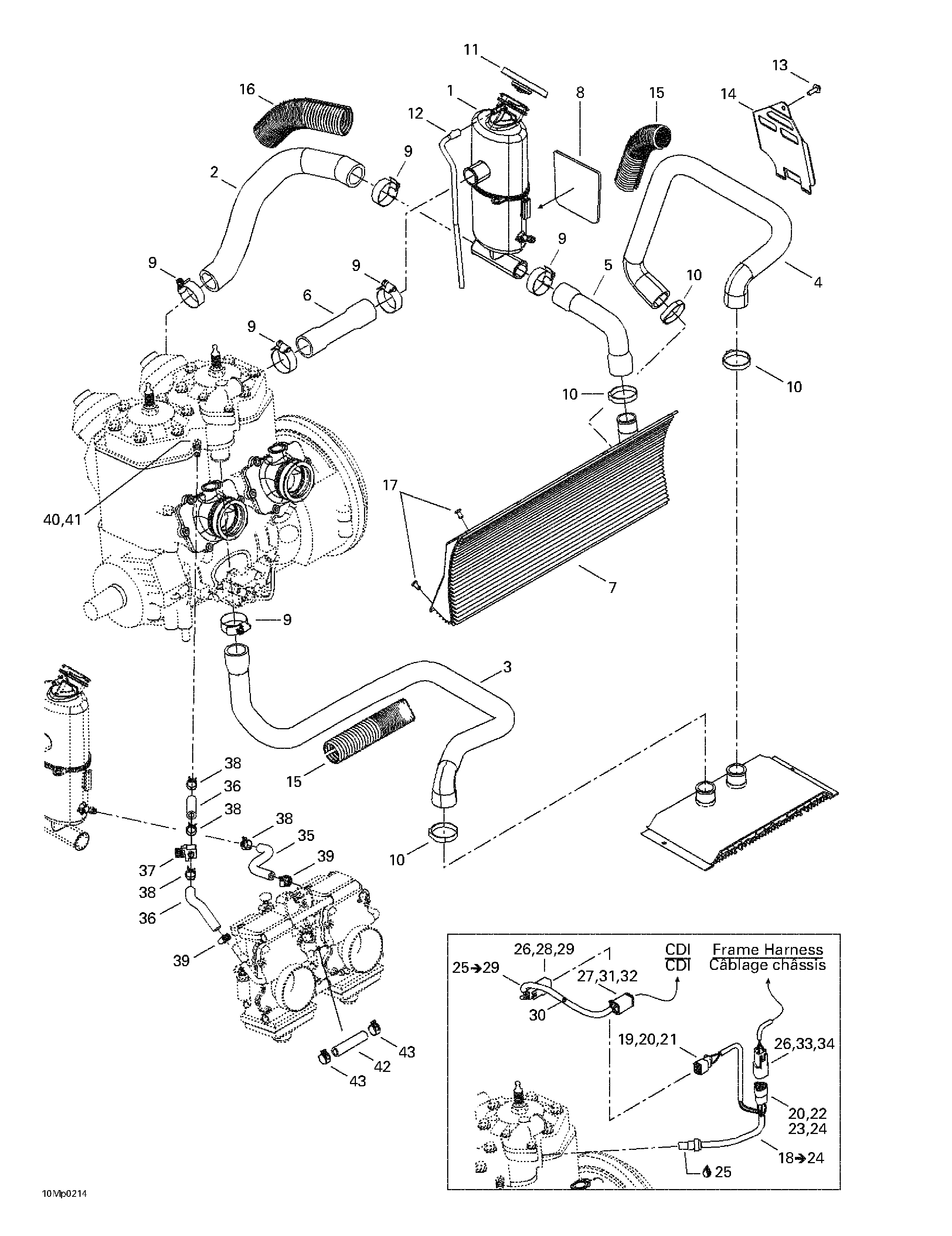

01- Cooling System для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1509000157 Coolant TankCoolant Tank
-
2509000172 Engine Inlet HoseEngine Inlet Hose
-
3509000158 Engine Outlet HoseEngine Outlet Hose
-
4509000159 Radiator Inlet HoseRadiator Inlet Hose
-
5509000160 Radiator Outlet HoseRadiator Outlet Hose
-
6509000161 HoseHose
-
7518322245 Front RadiatorFront Radiator
-
8509000190 Refective SheetRefective Sheet
-
9408800400 Gear ClampGear Clamp
-
10509000181 Gear ClampGear Clamp
-
11414684700 Pressure CapPressure Cap
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13243141680 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
14509000163 DeflectorDeflector
-
15415116600 Protective ShieldProtective Shield
-
16415084700 Protective ShieldProtective Shield
-
17390402200 Rivet 3/16''Rivet 3/16''
-
18515175818 Temperature Sensor. Includes 18 - 24.Temperature Sensor. Includes 18 - 24.
-
19515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
20278000632 Female TerminalFemale Terminal
-
21515175675 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
22515175671 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
23515175676 Female Lock (3 Circuits)Female Lock (3 Circuits)
-
24293000052 PlugPlug
-
25515175822 Sensor Harness. Includes 25 - 29.Sensor Harness. Includes 25 - 29.
-
26278000631 Male TerminalMale Terminal
-
27278000632 Femelle TerminalFemelle Terminal
-
28409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
29515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
30409901300 TubingTubing
-
31515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
32515175678 Female Lock (6 Circuits)Female Lock (6 Circuits)
-
33409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
34515175666 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
35509000171 HoseHose
-
36509000093 Hose 8 mmHose 8 mm
-
37512059324 Valve 5/16''Valve 5/16''
-
38414655700 Spring ClampSpring Clamp
-
39293650128 Hose ClampHose Clamp
-
40293710082 Straight FittingStraight Fitting
-
41293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
42404161956 HoseHose
-
43404161957 ClipClip
