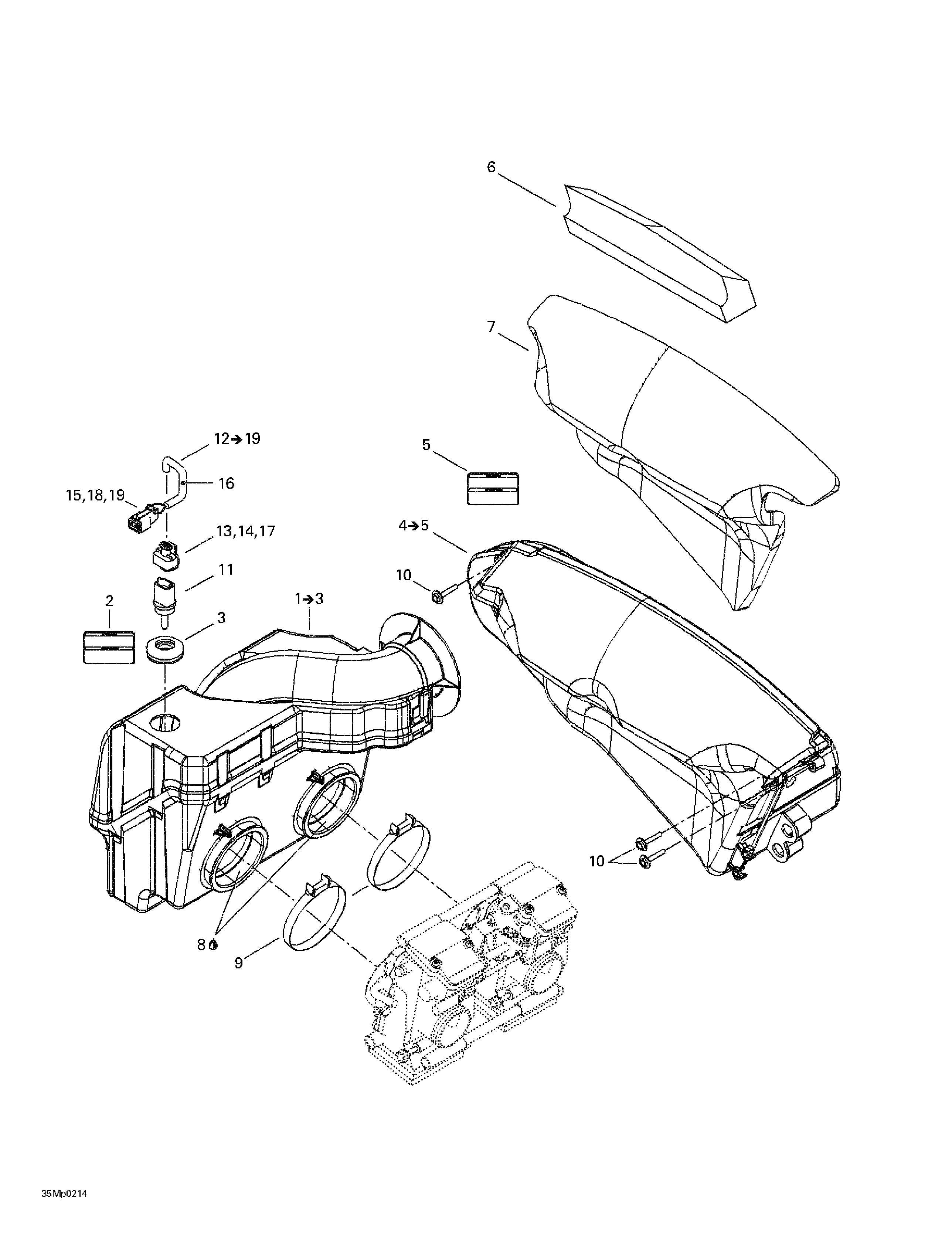

02- Air Intake System для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1508000155 Chamber Ass'y. Includes 1 - 3.Chamber Ass'y. Includes 1 - 3.
-
2516001191 Instruction LabelInstruction Label
-
3570065500 GrommetGrommet
-
4508000264 Chamber Ass'y. Includes 4 - 5.Chamber Ass'y. Includes 4 - 5.
-
5516001191 Instruction LabelInstruction Label
-
6508000147 Air FilterAir Filter
-
7508000282 Lower FoamLower Foam
-
8413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
9508000162 ClampClamp
-
10250000101 Screw M4 x 25Screw M4 x 25
-
11270600000 Air SensorAir Sensor
-
12515175703 Temperature Harness. Includes 12 - 19.Temperature Harness. Includes 12 - 19.
-
13278000998 Female TerminalFemale Terminal
-
14278000999 SealSeal
-
15278000632 Female TerminalFemale Terminal
-
16515175332 TubingTubing
-
17515175588 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
18515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
19515175706 Female Lock (2 Circuits)Female Lock (2 Circuits)
