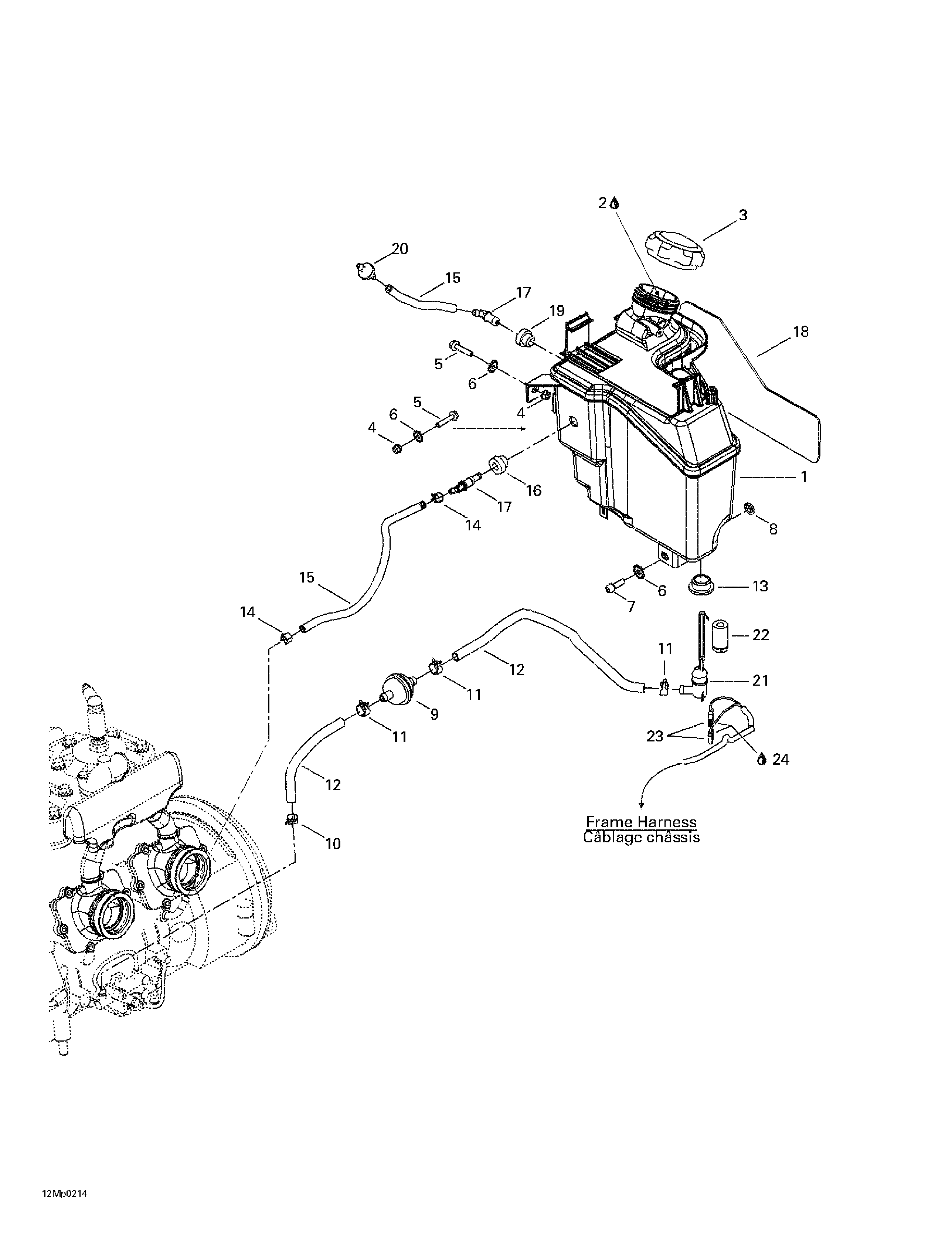

02- Oil Tank для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1519000029 Oil TankOil Tank
-
2413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
3519000033 CapCap
-
4233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
5207663044 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
6250200000 Lock WasherLock Washer
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8732610072 Push NutPush Nut
-
9414536500 FilterFilter
-
10414420700 Spring ClampSpring Clamp
-
11414415200 Spring ClampSpring Clamp
-
12415080700 HoseHose
-
13570023000 Insulated RingInsulated Ring
-
14414554800 Spring ClampSpring Clamp
-
15415080200 HoseHose
-
16570135100 GrommetGrommet
-
17414580700 Elbow Male ConnectorElbow Male Connector
-
18519000054 Reflective SheetReflective Sheet
-
19513032908 GrommetGrommet
-
20275500398 Check ValveCheck Valve
-
21414681800 Level SwitchLevel Switch
-
22414681900 FloatFloat
-
23409010300 Female TerminalFemale Terminal
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
