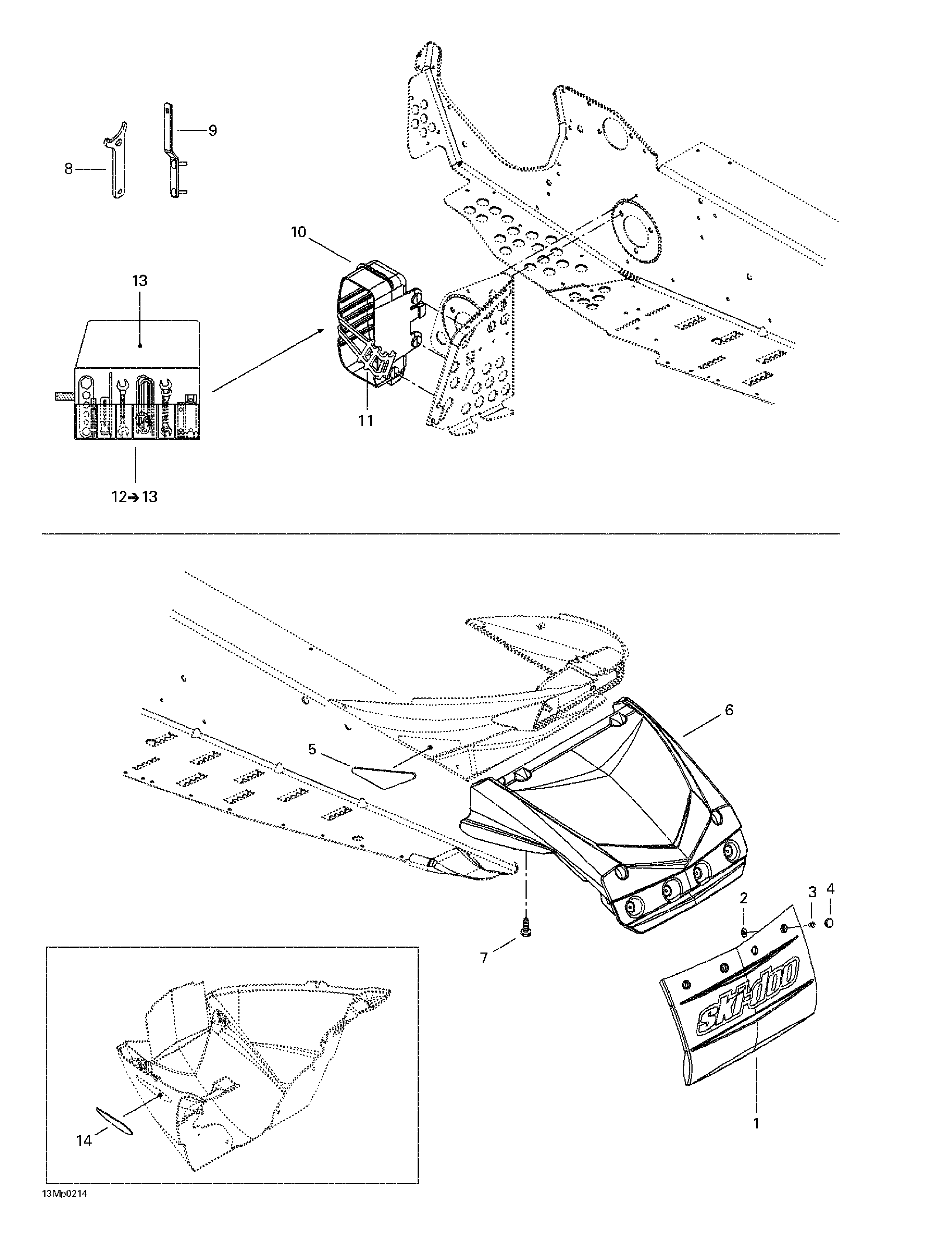

09- Utilities для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1520000239 Snow Guard (Black)Snow Guard (Black)
-
2517225900 Flat WasherFlat Washer
-
3293150087 Rivet 3/16''Rivet 3/16''
-
4277000203 Grip Cap (Black)Grip Cap (Black)
-
5520000237 Rear Reflector (Red)Rear Reflector (Red)
-
6520000243 Snow DeflectorSnow Deflector
-
7365901100 Hex. Screw 12 x 3/4''Hex. Screw 12 x 3/4''
-
8529032900 Wrench AdjusterWrench Adjuster
-
9520000126 Wrench AdjusterWrench Adjuster
-
10520000287 TrunkTrunk
-
11570069700 LatchLatch
-
12529035596 Tool Kit. Includes 12 - 13.Tool Kit. Includes 12 - 13.
-
13520000047 Tool BagTool Bag
-
14516001336 Front ReflectorFront Reflector
