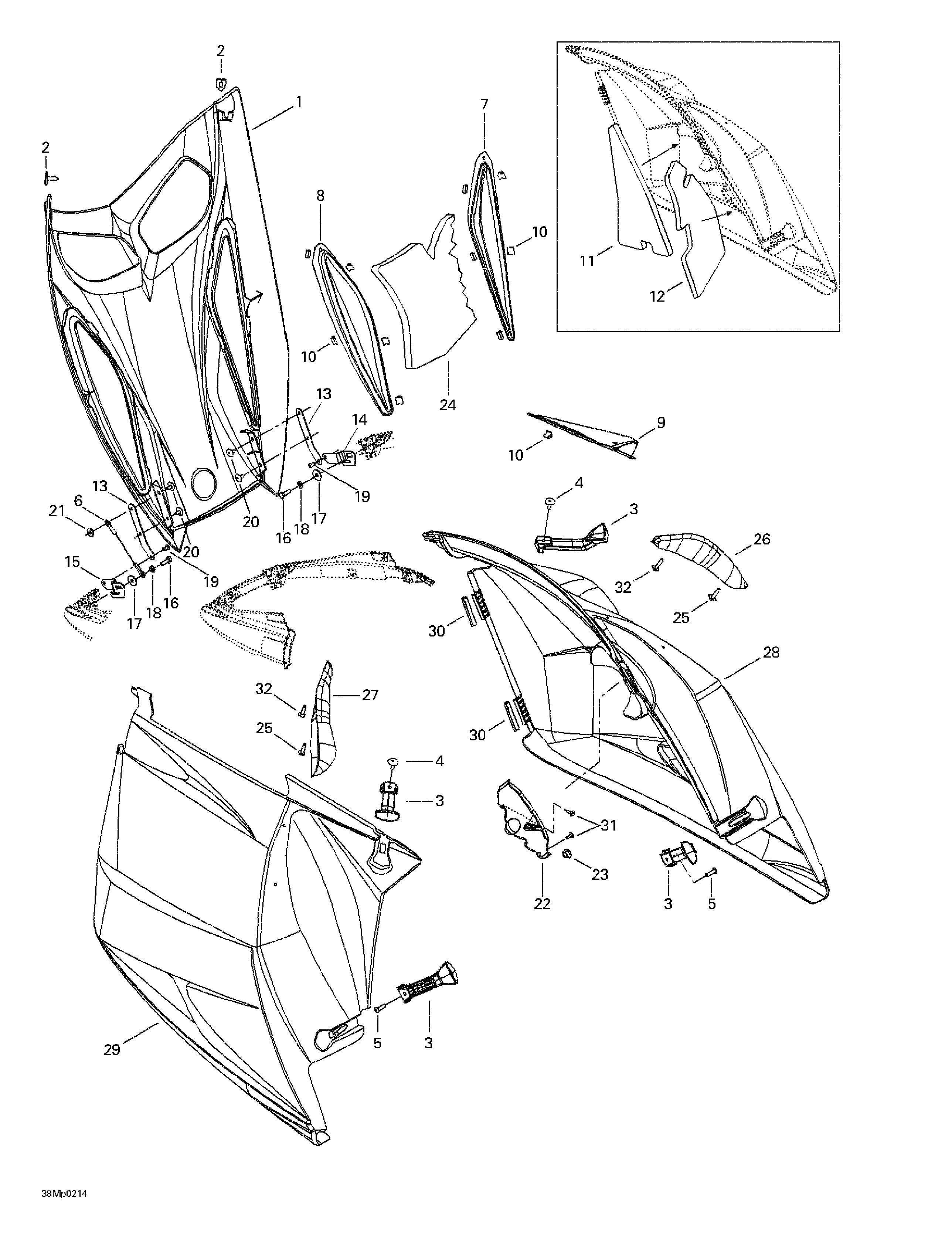

09- Hood для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1517302438 HoodHood
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Rivet 3/16''Rivet 3/16''
-
5390410100 Rivet 3/16''Rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517302453 R.H. Hood GrillR.H. Hood Grill
-
8517302454 L.H. Hood GrillL.H. Hood Grill
-
9517302455 R.H. Panel GrillR.H. Panel Grill
-
10517302674 ClipClip
-
11517302512 Front FoamFront Foam
-
12517302513 Rear FoamRear Foam
-
13517302544 Upper Half-HingeUpper Half-Hinge
-
14517302444 R.H. Lower Half-HingeR.H. Lower Half-Hinge
-
15517302445 L.H. Lower Half-HingeL.H. Lower Half-Hinge
-
16207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19390909200 Avex RivetAvex Rivet
-
20390406500 Rivet 3/16''Rivet 3/16''
-
21517225900 WasherWasher
-
22517302552 R.H. Console. Includes 22 - 23.R.H. Console. Includes 22 - 23.
-
23275500241 PlugPlug
-
24517302557 FoamFoam
-
25250000084 Screw K40 x 16Screw K40 x 16
-
26517302451 R.H. Air DeflectorR.H. Air Deflector
-
27517302452 L.H. Air DeflectorL.H. Air Deflector
-
28517302439 R.H. PanelR.H. Panel
-
29517302440 L.H. PanelL.H. Panel
-
30517302548 Hinge LockHinge Lock
-
31243141680 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
32250000101 Screw M4 x 25Screw M4 x 25
