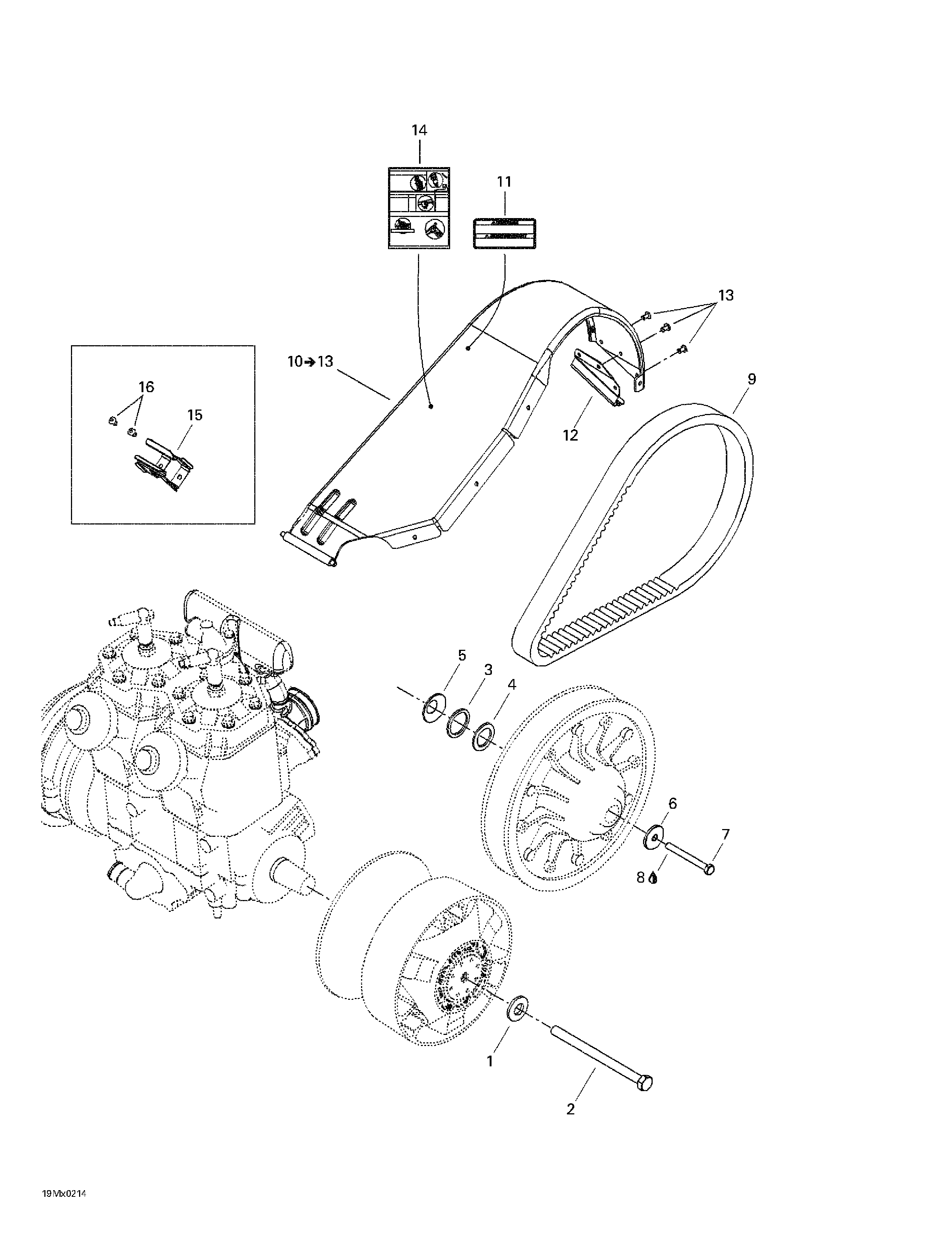

05- Pulleys System для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1250200006 Conical Spring WasherConical Spring Washer
-
2417120000 Drive Pulley BoltDrive Pulley Bolt
-
3504108200 ShimShim
-
504112000 ShimShim
-
417300203 ShimShim
-
4417300054 ShimShim
-
5417300055 ProtectorProtector
-
6517302322 Strength WasherStrength Washer
-
7207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9417300127 Drive BeltDrive Belt
-
10417300144 Belt Guard Ass'y. Includes 10 - 13.Belt Guard Ass'y. Includes 10 - 13.
-
11516001190 Security LabelSecurity Label
-
12417300204 Belt Guard BracketBelt Guard Bracket
-
13390402200 Rivet 3/16''Rivet 3/16''
-
14516000708 Ajustement DecalAjustement Decal
-
15517281905 BracketBracket
-
16390909200 RivetRivet
