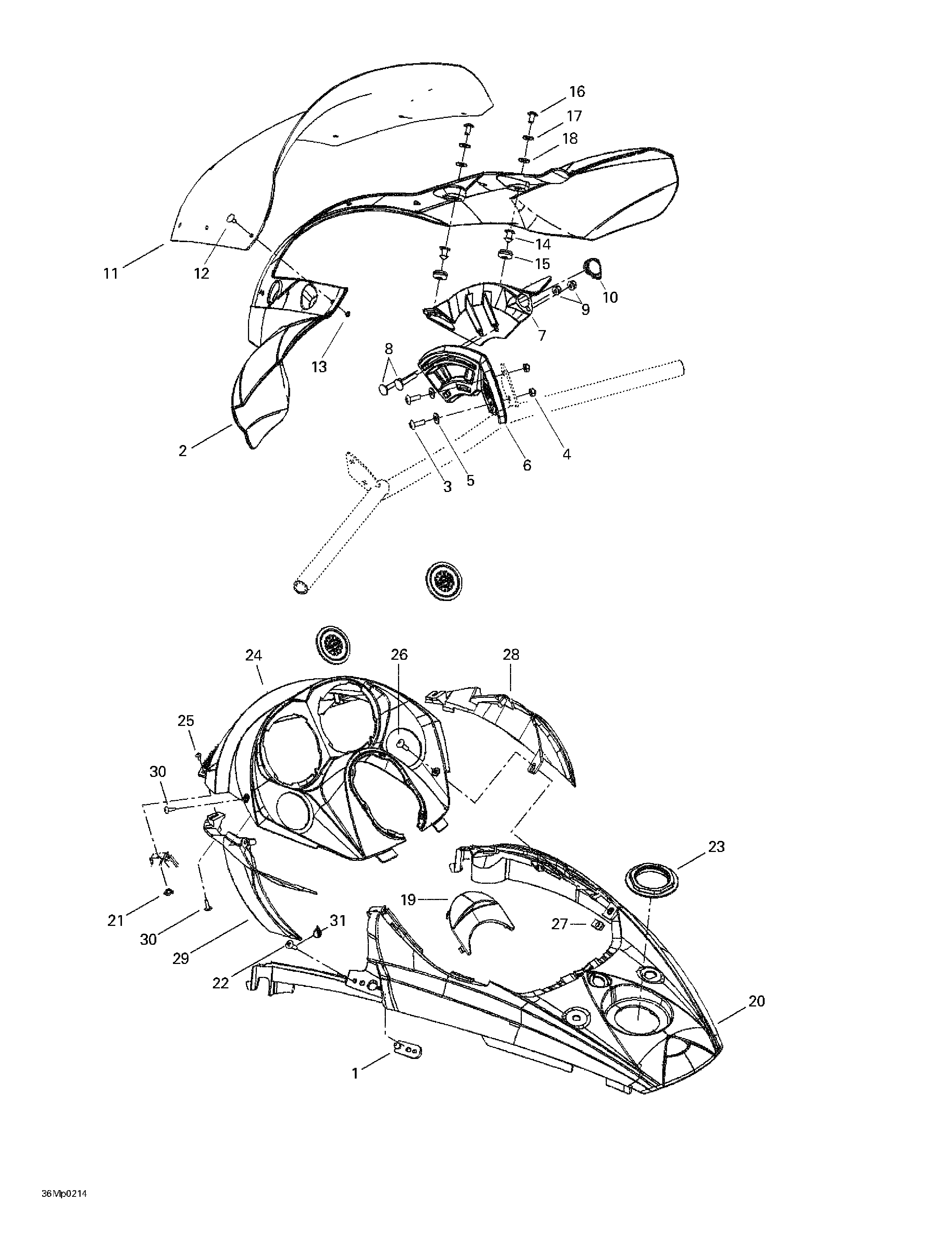

09- Windshield And Console для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517302537 Air Deflector (Medium) BlackAir Deflector (Medium) Black
-
3250000080 Screw M6 x 20Screw M6 x 20
-
4232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
5517302736 Nylon WasherNylon Washer
-
6517302704 R.H. Plate BracketR.H. Plate Bracket
-
517302705 L.H. Plate BracketL.H. Plate Bracket
-
7517302593 R.H. Windshield SupportR.H. Windshield Support
-
517302442 L.H. Windshield SupportL.H. Windshield Support
-
8207763584 Carriage Bolt M6 x 35Carriage Bolt M6 x 35
-
9233261494 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
10517302715 CapCap
-
11517302443 Windshield (Medium)Windshield (Medium)
-
12517302737 DartDart
-
13250100034 Push NutPush Nut
-
14517302719 KnobKnob
-
15414036300 GrommetGrommet
-
16208651481 Screw M5 x 14Screw M5 x 14
-
17250200025 Washer 5 mmWasher 5 mm
-
18250200024 Washer 5 mmWasher 5 mm
-
19517302592 Console CapConsole Cap
-
20517302446 Center Console. Includes 20 - 21.Center Console. Includes 20 - 21.
-
21250100030 T'' Flanged Nut M4```T'' Flanged Nut M4```
-
22250000080 Screw M6 x 20Screw M6 x 20
-
23517302575 Console NutConsole Nut
-
24517302447 SupportSupport
-
25250000078 Screw M4 x 8Screw M4 x 8
-
26250000083 Screw M5 x 20Screw M5 x 20
-
27250000079 Nut M5Nut M5
-
28517302546 R.H. Air DeflectorR.H. Air Deflector
-
29517302547 L.H. Air DeflectorL.H. Air Deflector
-
30250000084 Screw K40 x 16Screw K40 x 16
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
