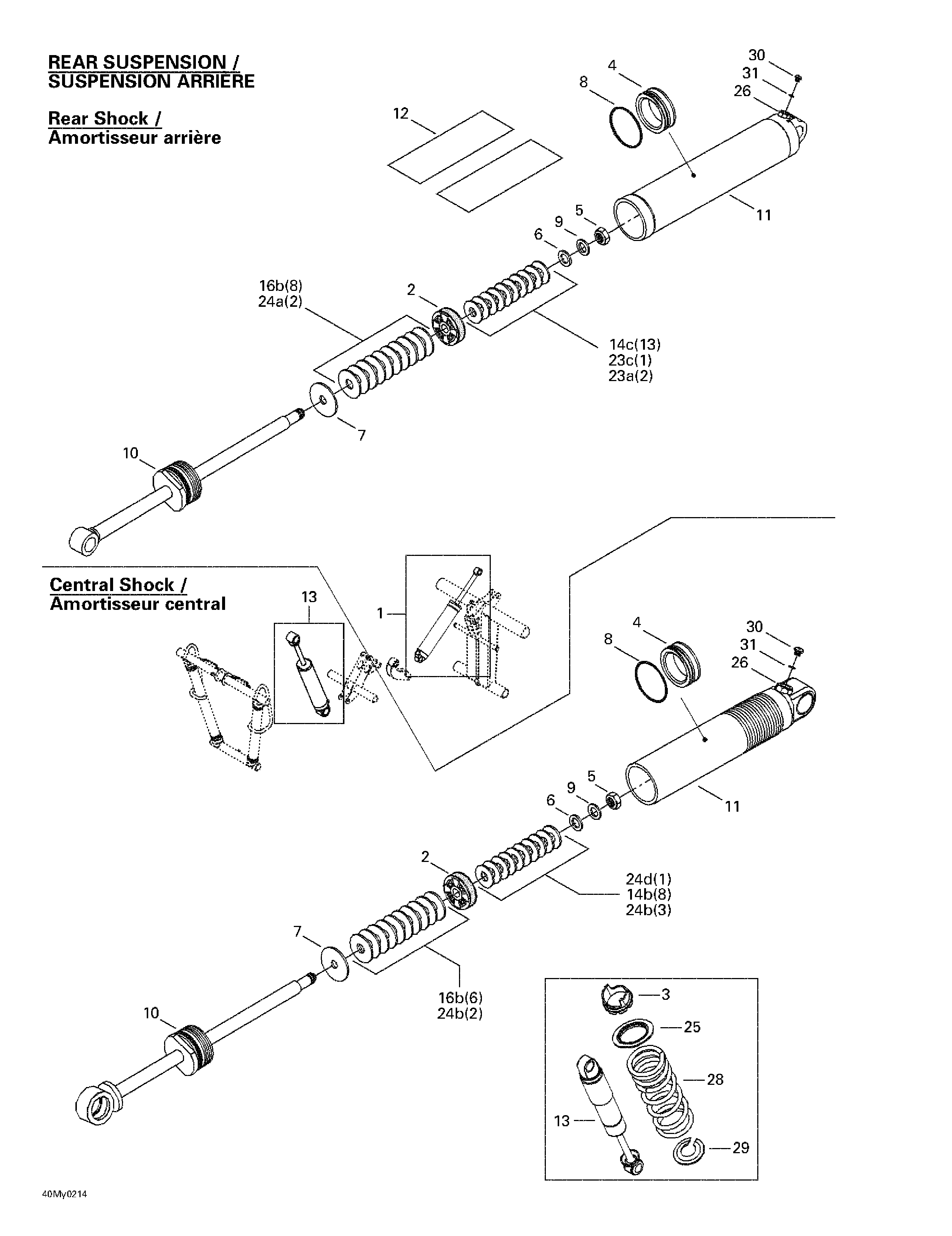

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1503189970 Rear ShockRear Shock
-
3505070150 Adjuster RingAdjuster Ring
-
4415097900 Free PistonFree Piston
-
8414888312 O-RingO-Ring
-
12516000183 Shock DecalShock Decal
-
13503189968 Center ShockCenter Shock
-
14a415039100 Leaf Valve O30 x 0.254 (C36)Leaf Valve O30 x 0.254 (C36)
-
14b414888318 Leaf Valve O30 x 0.203 (C36)Leaf Valve O30 x 0.203 (C36)
-
14c414888319 Leaf Valve O30 x 0.152 (C36)Leaf Valve O30 x 0.152 (C36)
-
15a414888320 Leaf Valve O28 x 0.203 (C36)Leaf Valve O28 x 0.203 (C36)
-
15b414888321 Leaf Valve O28 x 0.152 (C36)Leaf Valve O28 x 0.152 (C36)
-
16a415039000 Leaf Valve O26 x 0.254 (C36)Leaf Valve O26 x 0.254 (C36)
-
16b414888322 Leaf Valve O26 x 0.203 (C36)Leaf Valve O26 x 0.203 (C36)
-
16c414888323 Leaf Valve O26 x 0.152 (C36)Leaf Valve O26 x 0.152 (C36)
-
17a414888324 Leaf Valve O22 x 0.203 (C36)Leaf Valve O22 x 0.203 (C36)
-
17b414888325 Leaf Valve O22 x 0.152 (C36)Leaf Valve O22 x 0.152 (C36)
-
18a414888340 Leaf Valve O21 x 0.114 (C36)Leaf Valve O21 x 0.114 (C36)
-
19a414888326 Leaf Valve O20 x 0.203 (C36)Leaf Valve O20 x 0.203 (C36)
-
19b414888327 Leaf Valve O20 x 0.152 (C36)Leaf Valve O20 x 0.152 (C36)
-
19c414888328 Leaf Valve O20 x 0.114 (C36)Leaf Valve O20 x 0.114 (C36)
-
21a414888329 Leaf Valve O18 x 0.203 (C36)Leaf Valve O18 x 0.203 (C36)
-
21b414888330 Leaf Valve O18 x 0.152 (C36)Leaf Valve O18 x 0.152 (C36)
-
22a414888331 Leaf Valve O16 x 0.254 (C36)Leaf Valve O16 x 0.254 (C36)
-
22b414888332 Leaf Valve O16 x 0.203 (C36)Leaf Valve O16 x 0.203 (C36)
-
22c414888333 Leaf Valve O16 x 0.152 (C36)Leaf Valve O16 x 0.152 (C36)
-
22d415038900 Leaf Valve O16 x 0.114 (C36)Leaf Valve O16 x 0.114 (C36)
-
23a414888334 Leaf Valve O15 x 0.254 (C36)Leaf Valve O15 x 0.254 (C36)
-
23b414888335 Leaf Valve O15 x 0.203 (C36)Leaf Valve O15 x 0.203 (C36)
-
23C414888336 Leaf Valve O15 x 0.152 (C36)Leaf Valve O15 x 0.152 (C36)
-
23D414888337 Leaf Valve O15 x 0.114 (C36)Leaf Valve O15 x 0.114 (C36)
-
24a503189538 Leaf Valve O12 x 0.254 (C36)Leaf Valve O12 x 0.254 (C36)
-
24b414888338 Leaf Valve O12 x 0.203 (C36)Leaf Valve O12 x 0.203 (C36)
-
24c414888339 Leaf Valve O12 x 0.152 (C36)Leaf Valve O12 x 0.152 (C36)
-
24d415038800 Leaf Valve O12 x 0.114 (C36)Leaf Valve O12 x 0.114 (C36)
-
25517184300 Spring GuideSpring Guide
-
26505070398 ValveValve
-
27293600035 Shock Oil (Not Shown)Shock Oil (Not Shown)
-
28503189325 SpringSpring
-
29503189912 Spring StopperSpring Stopper
-
30505070399 ScrewScrew
-
31505070400 O-RingO-Ring
