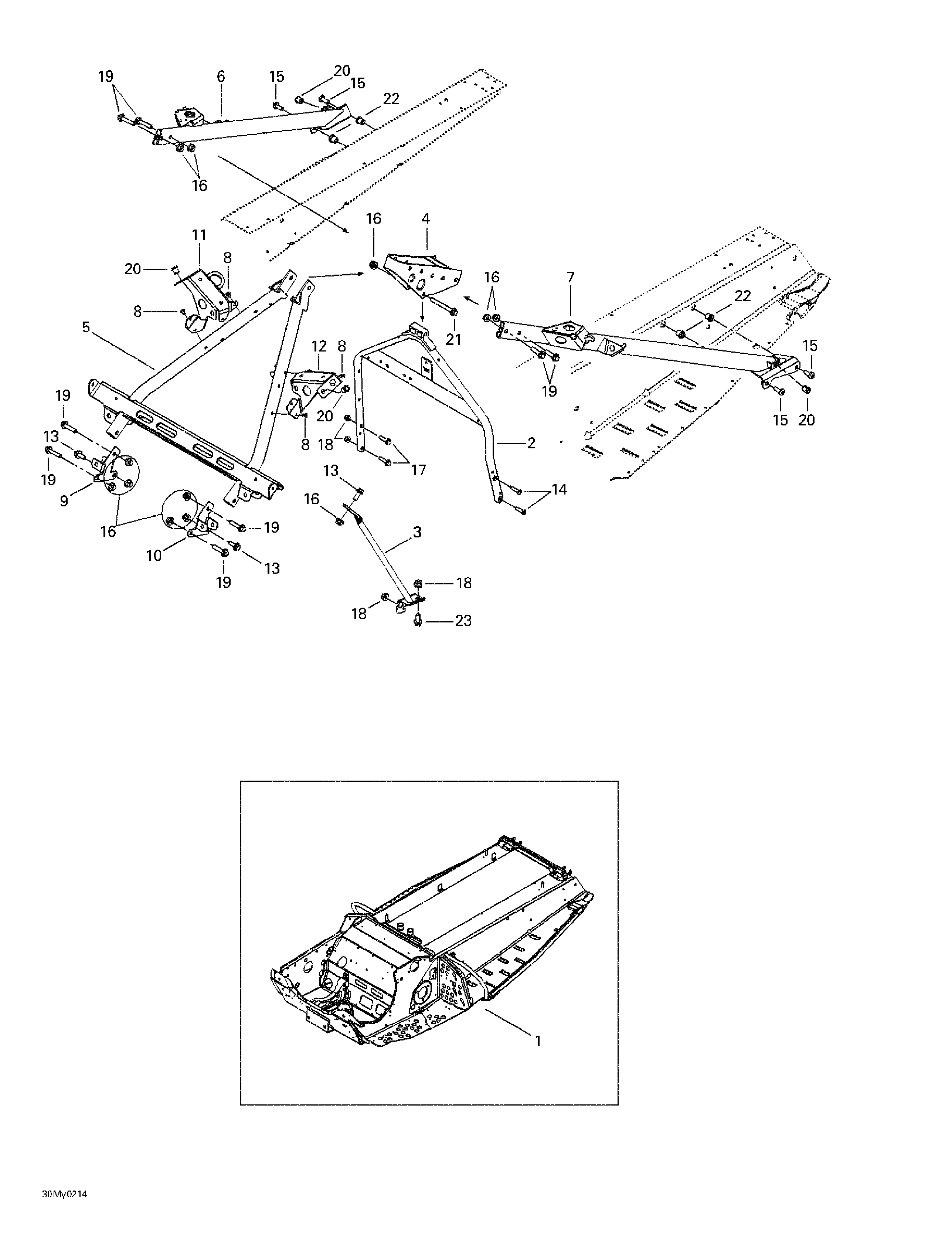

09- Frame - Steering Support для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1518322148 Frame Ass'yFrame Ass'y
-
2518322463 Handle SupportHandle Support
-
3518322219 BraceBrace
-
4518322546 BracketBracket
-
5518322454 Upper Cross-MemberUpper Cross-Member
-
6518322466 R.H. MemberR.H. Member
-
7518322467 L.H. MemberL.H. Member
-
8390909200 Avex RivetAvex Rivet
-
9518322461 R.H. Shock BracketR.H. Shock Bracket
-
10518322462 L.H. Shock BracketL.H. Shock Bracket
-
11518322961 R.H. Console SupportR.H. Console Support
-
12518322962 L.H. Console SupportL.H. Console Support
-
13207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
14205862544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
15236282084 Torx Screw M8 x 20Torx Screw M8 x 20
-
16233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
17207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
18233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
19207683544 Hex. Flanged Screw M8 x 35Hex. Flanged Screw M8 x 35
-
20415107300 InsertInsert
-
21207687044 Hex. Flanged Screw M8 x 70Hex. Flanged Screw M8 x 70
-
22293450166 InsertInsert
-
23207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
