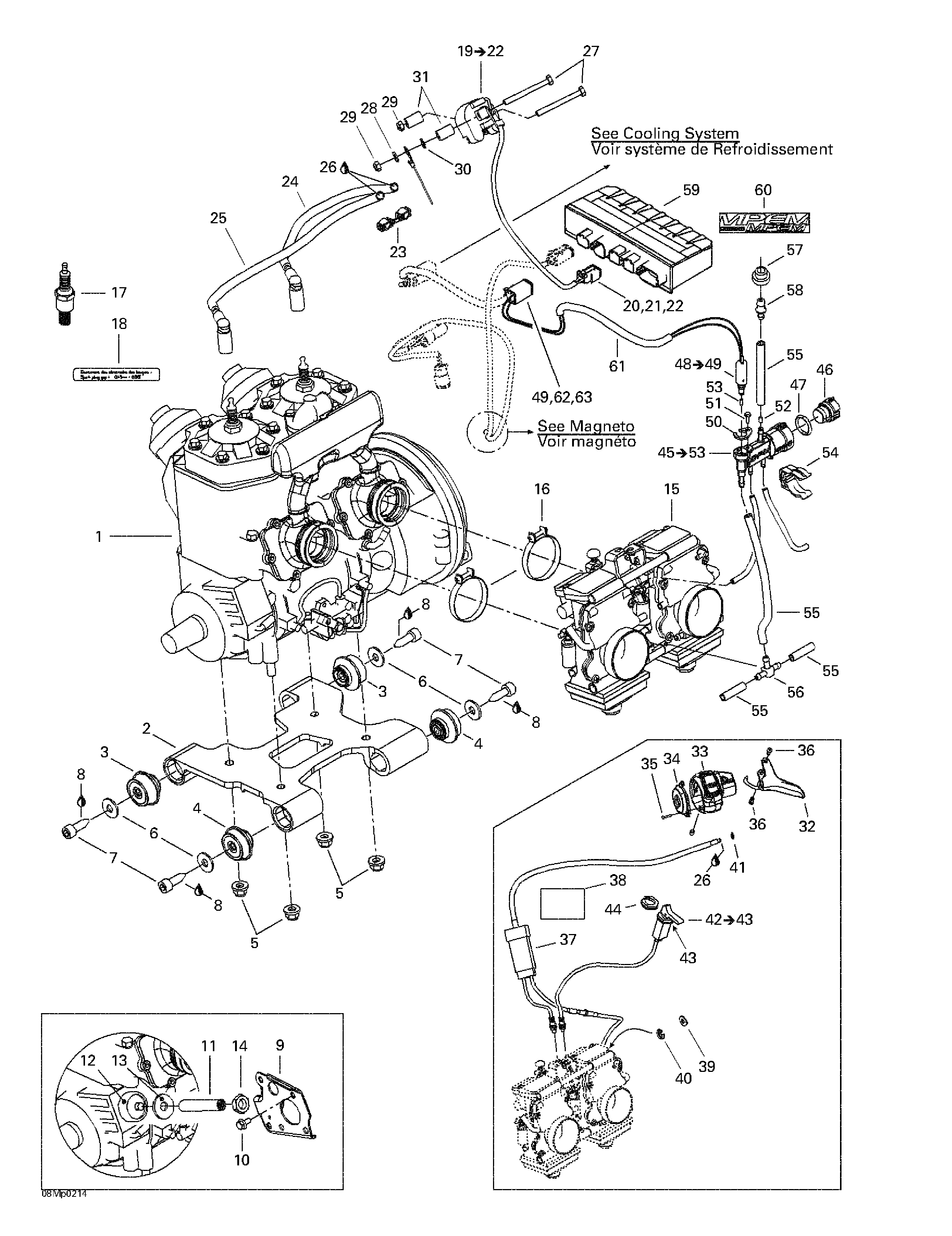

01- Engine для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1400702603 > Engine> Engine
-
2512059282 Engine SupportEngine Support
-
3512059405 Rubber MountRubber Mount
-
4512059712 Rubber MountRubber Mount
-
5233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
6506151251 WasherWasher
-
7250000094 Screw M10 x 30Screw M10 x 30
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9512059585 PlatePlate
-
10207561244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
11250500002 Stopper ScrewStopper Screw
-
12512059610 StopperStopper
-
13512059057 WasherWasher
-
14232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
15403138667 Carburetor Kit TM-40-B184Carburetor Kit TM-40-B184
-
16512059305 ClampClamp
-
17512059552 Spark Plug NGK BR9ECS 0.5mmSpark Plug NGK BR9ECS 0.5mm
-
18516000986 Spark Plug DecalSpark Plug Decal
-
19512059564 Ignition Coil. Includes 19 - 22.Ignition Coil. Includes 19 - 22.
-
20515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
21515175707 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
22278000632 Female TerminalFemale Terminal
-
23410914600 Plastic ClipPlastic Clip
-
24512059485 Cable Ass'y (380 mm)Cable Ass'y (380 mm)
-
25512059486 Cable Ass'y (455 mm)Cable Ass'y (455 mm)
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27207066044 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
28234061410 Flat Washer 6 mmFlat Washer 6 mm
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30394001900 Lock WasherLock Washer
-
31517203200 SpacerSpacer
-
32512059553 Handle Ass'y (28 mm)Handle Ass'y (28 mm)
-
33512059682 Throttle Handle HousingThrottle Handle Housing
-
34512059683 CoverCover
-
35250000098 Screw M2.9 x 16Screw M2.9 x 16
-
36732601143 ScrewScrew
-
37512059265 Throttle CableThrottle Cable
-
38512059611 ProtectorProtector
-
39414753300 WasherWasher
-
40414753500 CirclipCirclip
-
41414274500 CirclipCirclip
-
42512059266 Choke Cable. Includes 42 - 43.Choke Cable. Includes 42 - 43.
-
43394103300 Lock washerLock washer
-
44512059094 Plastic NutPlastic Nut
-
45512059501 Pressure Manifold Ass'y. Includes 45 - 53.Pressure Manifold Ass'y. Includes 45 - 53.
-
46270600009 CapCap
-
47293300042 O-RingO-Ring
-
48515175701 Solenoid Valve. Includes 48 - 49.Solenoid Valve. Includes 48 - 49.
-
49278001665 Female TerminalFemale Terminal
-
50415061600 Solenoid LockSolenoid Lock
-
51241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
53404161825 Starter Jet (2.0)Starter Jet (2.0)
-
54512058919 SupportSupport
-
55415080200 HoseHose
-
56414729300 T FittingT Fitting
-
57513032908 GrommetGrommet
-
58293710035 Straight FittingStraight Fitting
-
59512059273 Calibrated ModuleCalibrated Module
-
60516000245 Electrical Box DecalElectrical Box Decal
-
61409901300 TubingTubing
-
62515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
63515175678 Female Lock (6 Circuits)Female Lock (6 Circuits)
