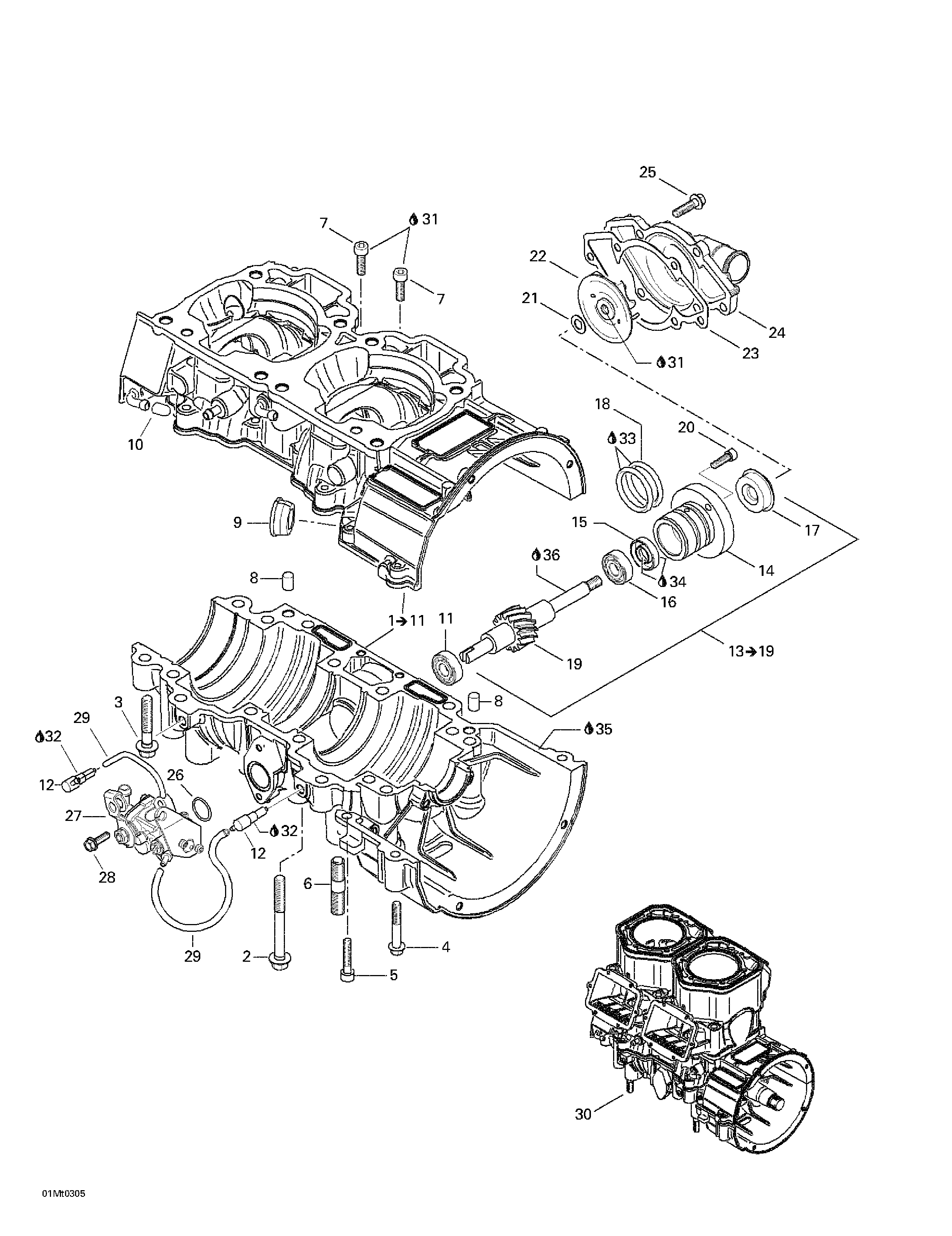

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1420889088 Crankcase ass'y. Includes 1 - 11.Crankcase ass'y. Includes 1 - 11.
-
2420640836 Hex collar screw M8 x 75Hex collar screw M8 x 75
-
3420640431 Hex collar screw M8 x 45Hex collar screw M8 x 45
-
4420640311 Hex collar screw M6 x 45Hex collar screw M6 x 45
-
5205063044 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420641834 Stud M10 x 29Stud M10 x 29
-
7420840401 Socket head screw M6 x 22Socket head screw M6 x 22
-
8290632010 Dowel pinDowel pin
-
9420860965 Cable grommetCable grommet
-
10420960770 CapCap
-
11420232100 Ball BearingBall Bearing
-
12420956510 Check valveCheck valve
-
13420837421 Water pump/oil Pump ass'y. Includes 13 - 19.Water pump/oil Pump ass'y. Includes 13 - 19.
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-ringO-ring
-
20420840511 Socket head screw M5 x 16Socket head screw M5 x 16
-
21420227945 WasherWasher
-
22420222505 Water impellerWater impeller
-
23420931810 GasketGasket
-
24420922630 Water pump housingWater pump housing
-
25420240031 Hex screw M6 x 25Hex screw M6 x 25
-
26420230400 O-ringO-ring
-
27420888770 Oil pump ass'yOil pump ass'y
-
28420941925 Screw M5 x 16Screw M5 x 16
-
29414413800 Oil lineOil line
-
30420079370 Short block ass'yShort block ass'y
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34420899271 Petamo grease, GHY133N, 400 gPetamo grease, GHY133N, 400 g
-
35420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
36413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
