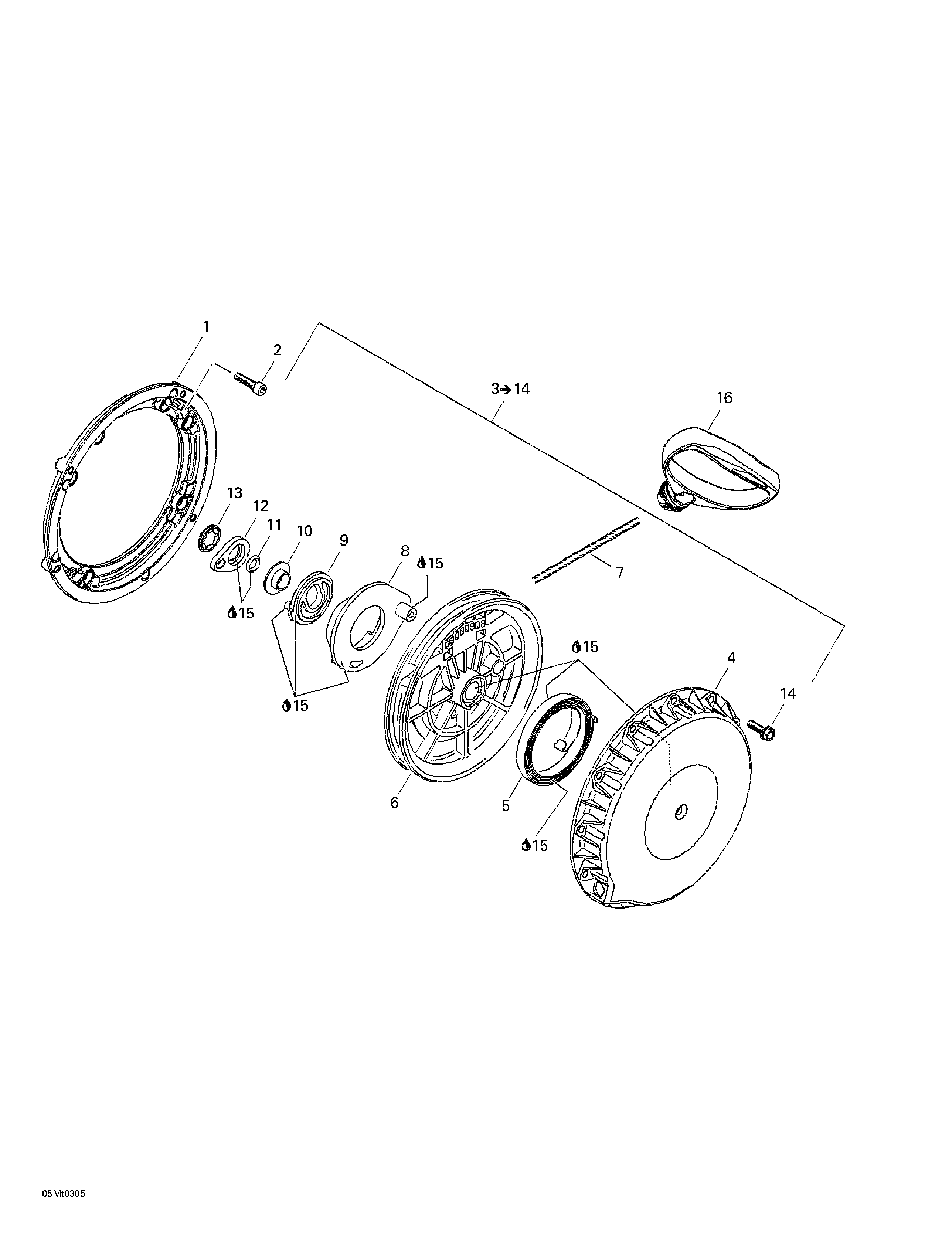

04- Rewind Starter для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1420810867 Connecting flangeConnecting flange
-
2420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
3420889763 Rewind starter. Includes 3 - 14.Rewind starter. Includes 3 - 14.
-
4420811404 Starter housingStarter housing
-
5420939115 Rewind SpringRewind Spring
-
6420852286 Rope sheaveRope sheave
-
7412500200 Starter rope (2200 mm)Starter rope (2200 mm)
-
8420852297 PawlPawl
-
9420852305 Pawl lockPawl lock
-
10420847925 Stage sleeveStage sleeve
-
11420250400 O-ringO-ring
-
12420852520 Lock ringLock ring
-
13420845560 Locking elementLocking element
-
14420941256 Hex collar screw M6 x 30Hex collar screw M6 x 30
-
15420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
16572084400 Starter GripStarter Grip
