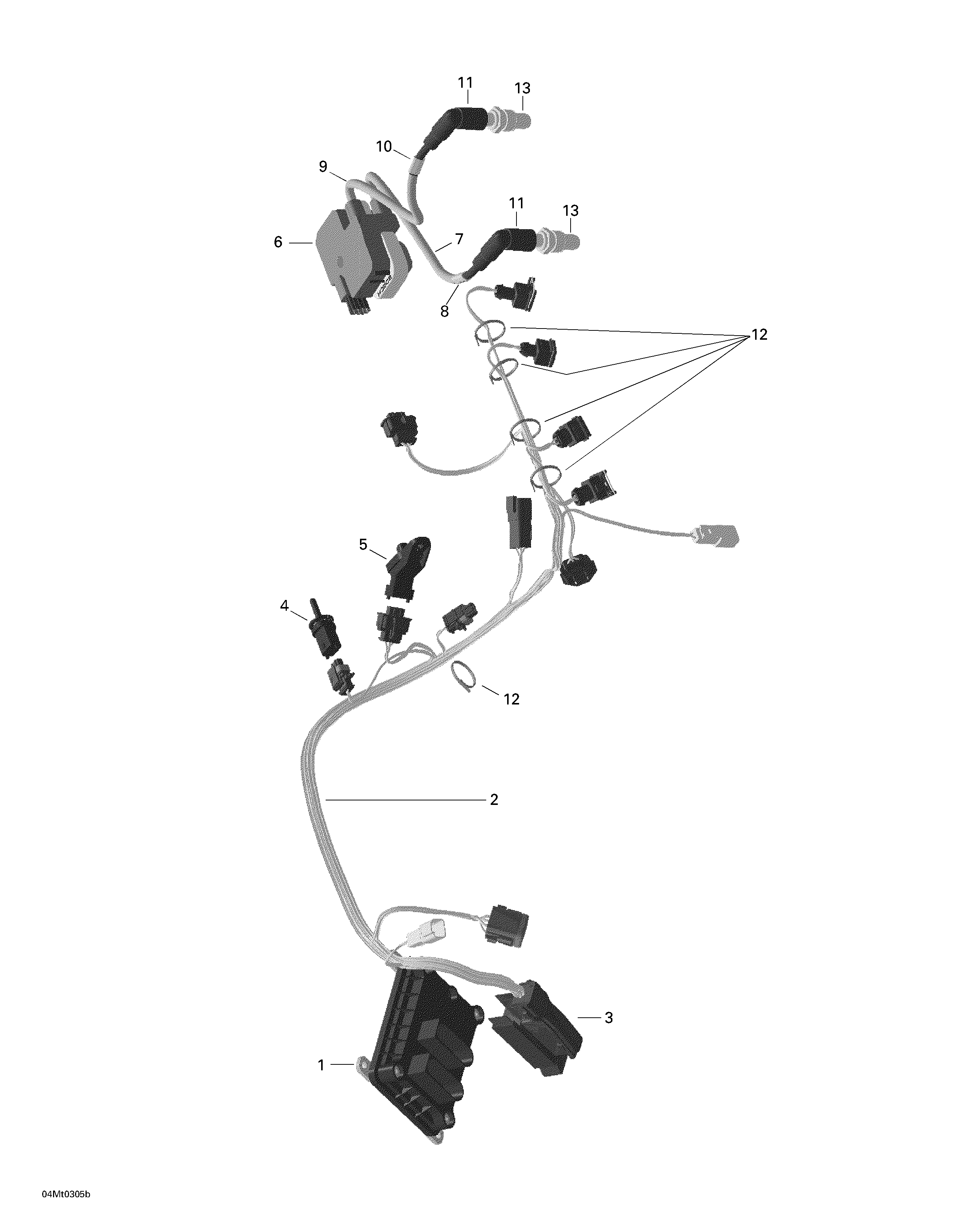

10- Engine Harness, Electronic Box, Ignition Coil для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1420664572 Electronic boxElectronic box
-
2420664310 Engine wiring harnessEngine wiring harness
-
3420664450 Connector housingConnector housing
-
4420966970 Temperature sensorTemperature sensor
-
5420274055 Pressure sensorPressure sensor
-
6420266070 Ignition coilIgnition coil
-
7420664300 Cable ass'y 365 mm MAGCable ass'y 365 mm MAG
-
8420660632 Sleeve MAGSleeve MAG
-
9420664305 Cable ass'y 245 mm PTOCable ass'y 245 mm PTO
-
10420660630 Sleeve PTOSleeve PTO
-
11278000237 Spark plug capSpark plug cap
-
12420866714 Tie rapTie rap
-
13415128524 Spark Plug NGK BR9ECS 0.8mmSpark Plug NGK BR9ECS 0.8mm
