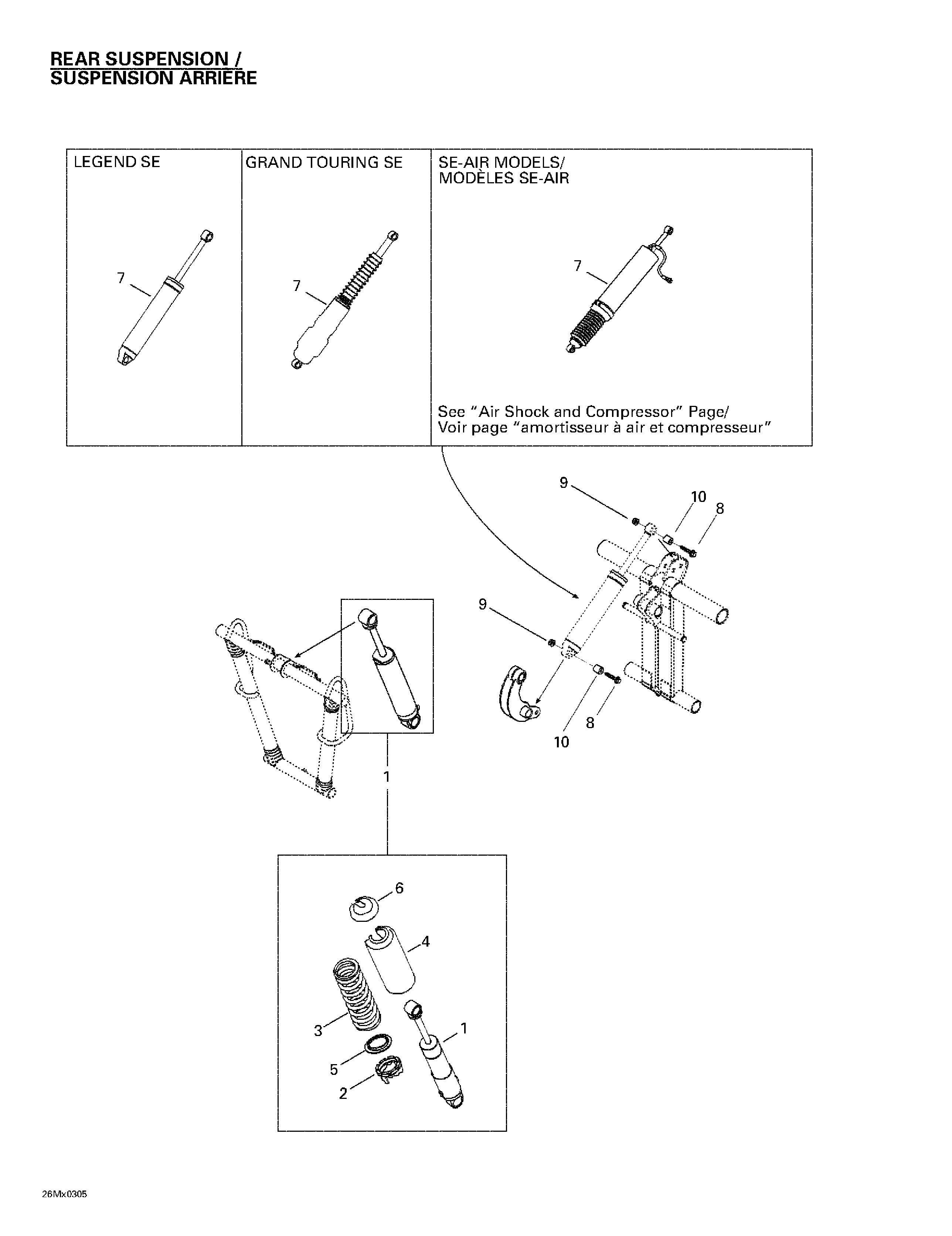

08- Rear Shocks для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1503190026 Center Shock. Grand Touring SE 800 SDI.Center Shock. Grand Touring SE 800 SDI.
-
503189804 Center Shock. Legend SE 800 SDI.Center Shock. Legend SE 800 SDI.
-
2505070150 Cam 45 DegCam 45 Deg
-
3503189659 Spring. Grand Touring SE 800 SDI.Spring. Grand Touring SE 800 SDI.
-
503189325 Spring. Legend SE 800 SDI.Spring. Legend SE 800 SDI.
-
4503188930 ProtectorProtector
-
5517184300 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503190005 Rear Shock (SE). Grand Touring SE 800 SDI.Rear Shock (SE). Grand Touring SE 800 SDI.
-
503190260 Rear Shock (SE). Legend SE 800 SDI.Rear Shock (SE). Legend SE 800 SDI.
-
415128448 Rear Air Shock (SE-AIR). Grand Touring SE 800 SDI.Rear Air Shock (SE-AIR). Grand Touring SE 800 SDI.
-
415128449 Rear Shock (SE-AIR). Legend SE 800 SDI.Rear Shock (SE-AIR). Legend SE 800 SDI.
-
8207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
9233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
10414936000 CushionCushion
