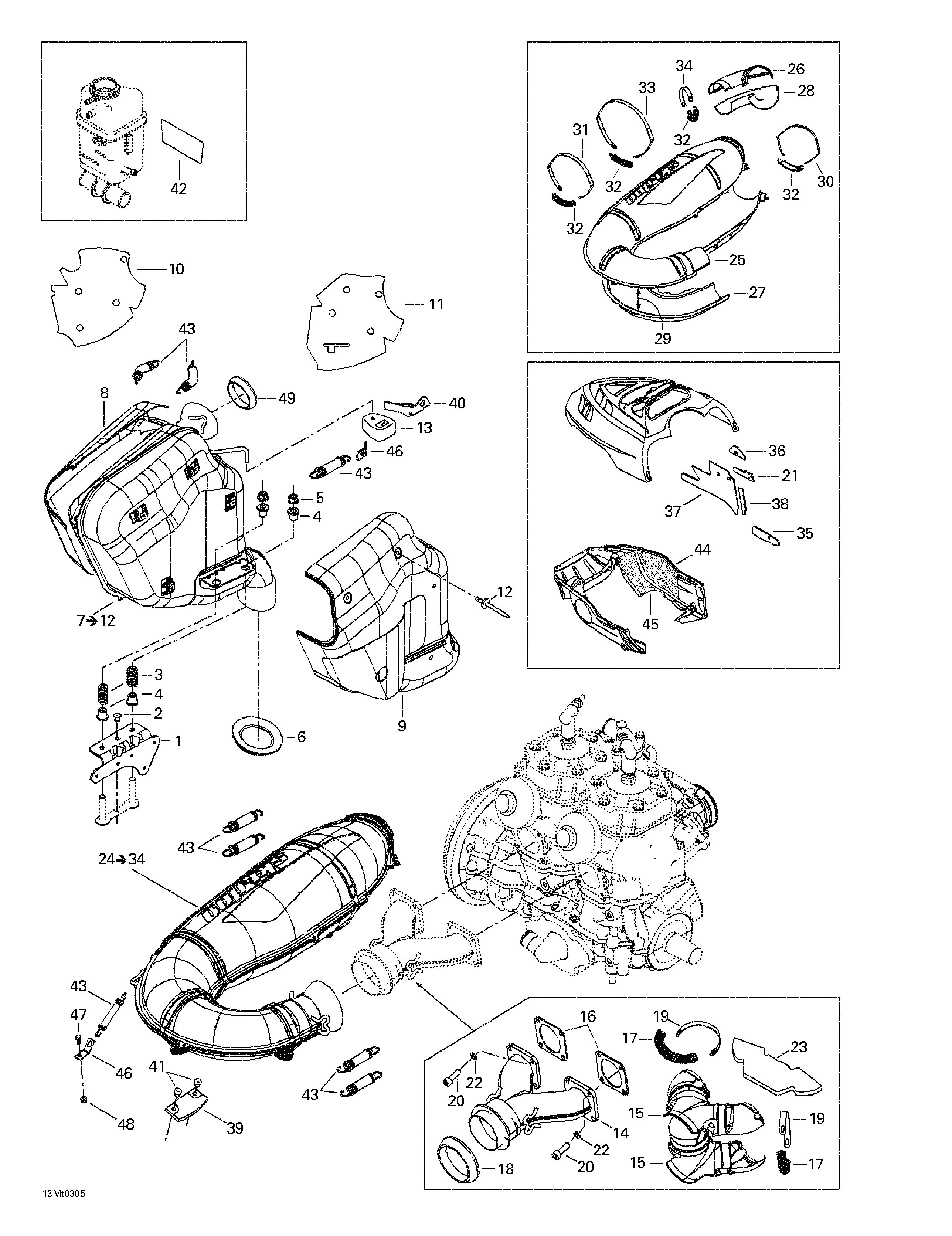

01- Muffler для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1514053263 Muffler bracketMuffler bracket
-
2390402200 Pop rivet 3/16''Pop rivet 3/16''
-
3414913700 SpringSpring
-
4514053343 GuideGuide
-
5233481413 Hex self stop nut M8Hex self stop nut M8
-
6514053064 Exhaust grommetExhaust grommet
-
7514053675 Muffler. Includes 7 - 12.Muffler. Includes 7 - 12.
-
8514053694 R.H. Heat ShieldR.H. Heat Shield
-
9514053680 L.H. Heat ShieldL.H. Heat Shield
-
10514053681 R.h. insulating woolR.h. insulating wool
-
11514053682 L.h. Insulating woolL.h. Insulating wool
-
12390910000 Pop rivet 3/16''Pop rivet 3/16''
-
13514052704 Rubber bumperRubber bumper
-
14420673245 Exhaust manifoldExhaust manifold
-
15514053593 Exhaust manifold envelopeExhaust manifold envelope
-
16420931850 GasketGasket
-
17514053643 SpringSpring
-
18514053487 Exhaust gasketExhaust gasket
-
19514053603 Retaining StrapRetaining Strap
-
20205062044 Socket screw M6 x 20Socket screw M6 x 20
-
21514053391 Reflective sheet (All Grand Tourings). Grand Touring SE 800 SDI.Reflective sheet (All Grand Tourings). Grand Touring SE 800 SDI.
-
514053391 Reflective sheet (Legend 2-Tones Only). Legend SE 800 SDI.Reflective sheet (Legend 2-Tones Only). Legend SE 800 SDI.
-
22234161471 Lock washer M6Lock washer M6
-
23514053588 Insulating woolInsulating wool
-
24514053697 Tuned Pipe ass'y. Includes 24 - 34.Tuned Pipe ass'y. Includes 24 - 34.
-
25514053690 Upper envelopeUpper envelope
-
26514053313 Rear upper envelopeRear upper envelope
-
27514053691 Lower envelopeLower envelope
-
28514053314 Rear lower envelopeRear lower envelope
-
29514053696 Insulating woolInsulating wool
-
30514053500 Retaining strapRetaining strap
-
31514053512 Retaining strapRetaining strap
-
32514053643 SpringSpring
-
33514053540 Retaining strapRetaining strap
-
34514053492 Retaining strapRetaining strap
-
35514053435 Reflective sheet (Black Cab). Legend SE 800 SDI.Reflective sheet (Black Cab). Legend SE 800 SDI.
-
36514053446 Reflective sheet (Black Cab). Legend SE 800 SDI.Reflective sheet (Black Cab). Legend SE 800 SDI.
-
37514053624 Reflective sheetReflective sheet
-
38514053450 Reflective sheetReflective sheet
-
39570044100 Rubber padRubber pad
-
40514053442 Engine suportEngine suport
-
41293150103 Pop rivet 3/16''Pop rivet 3/16''
-
42514053399 Reflective sheetReflective sheet
-
43415107100 SpringSpring
-
44514052718 Reflective sheetReflective sheet
-
45514053390 Reflective sheetReflective sheet
-
46514053436 Spring bracketSpring bracket
-
47207151244 Hex screw M5 x 12Hex screw M5 x 12
-
48233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
49514053677 Exhaust GasketExhaust Gasket
