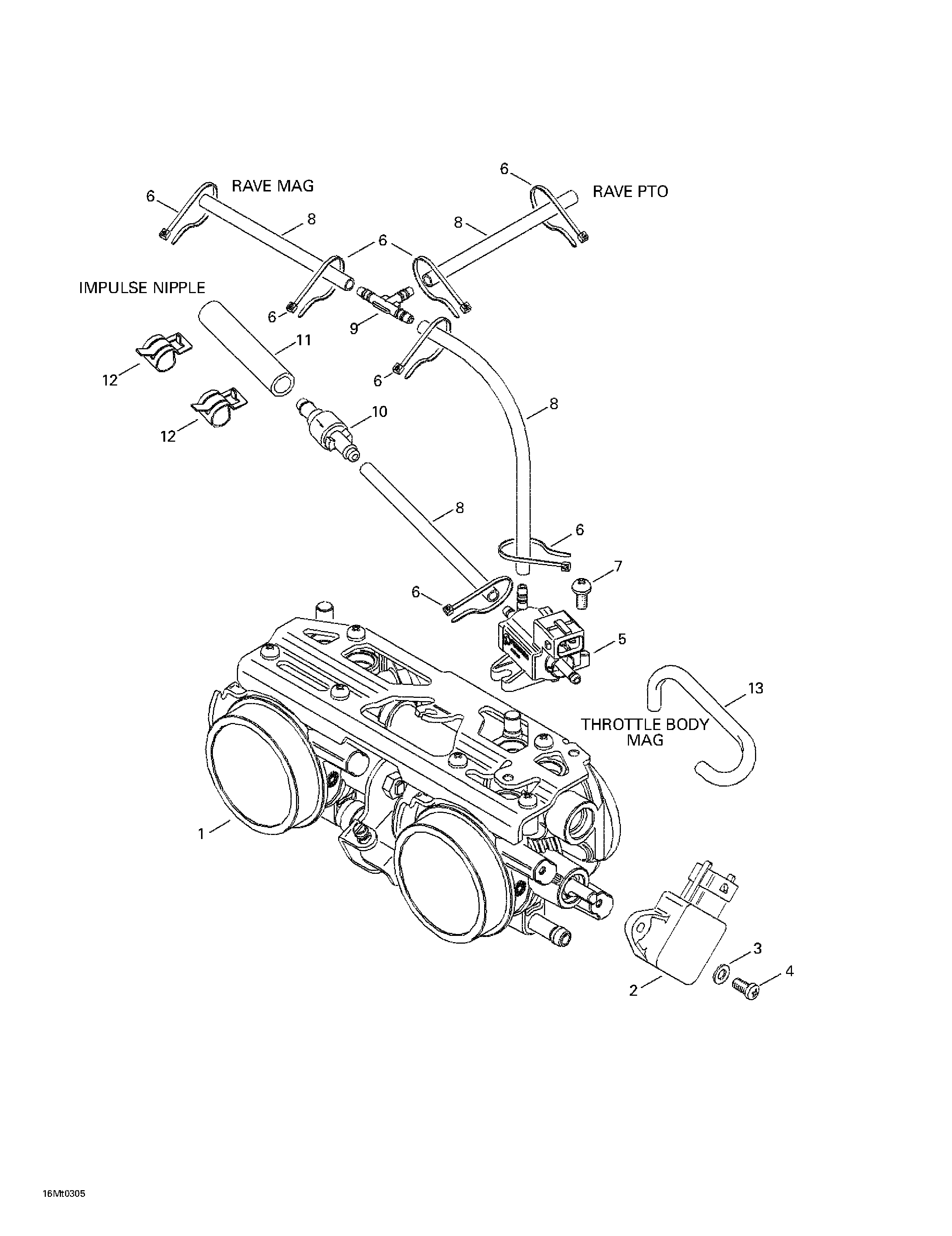

02- Throttle Body для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1420889190 Throttle bodyThrottle body
-
2270000251 Position SensorPosition Sensor
-
3234041600 Flat washer 4 mmFlat washer 4 mm
-
4208641660 Screw phillips M4 x 16Screw phillips M4 x 16
-
5420664630 Soleno‹d valveSoleno‹d valve
-
6420866718 Tie rapTie rap
-
7420940011 Screw M5 x 10Screw M5 x 10
-
8420660571 High pressure air hose 180 mmHigh pressure air hose 180 mm
-
9420660550 T-FittingT-Fitting
-
10420660540 Check valveCheck valve
-
11420660561 High pressure air hose 50 mmHigh pressure air hose 50 mm
-
12420853510 ClampClamp
-
13420660990 Formed hoseFormed hose
