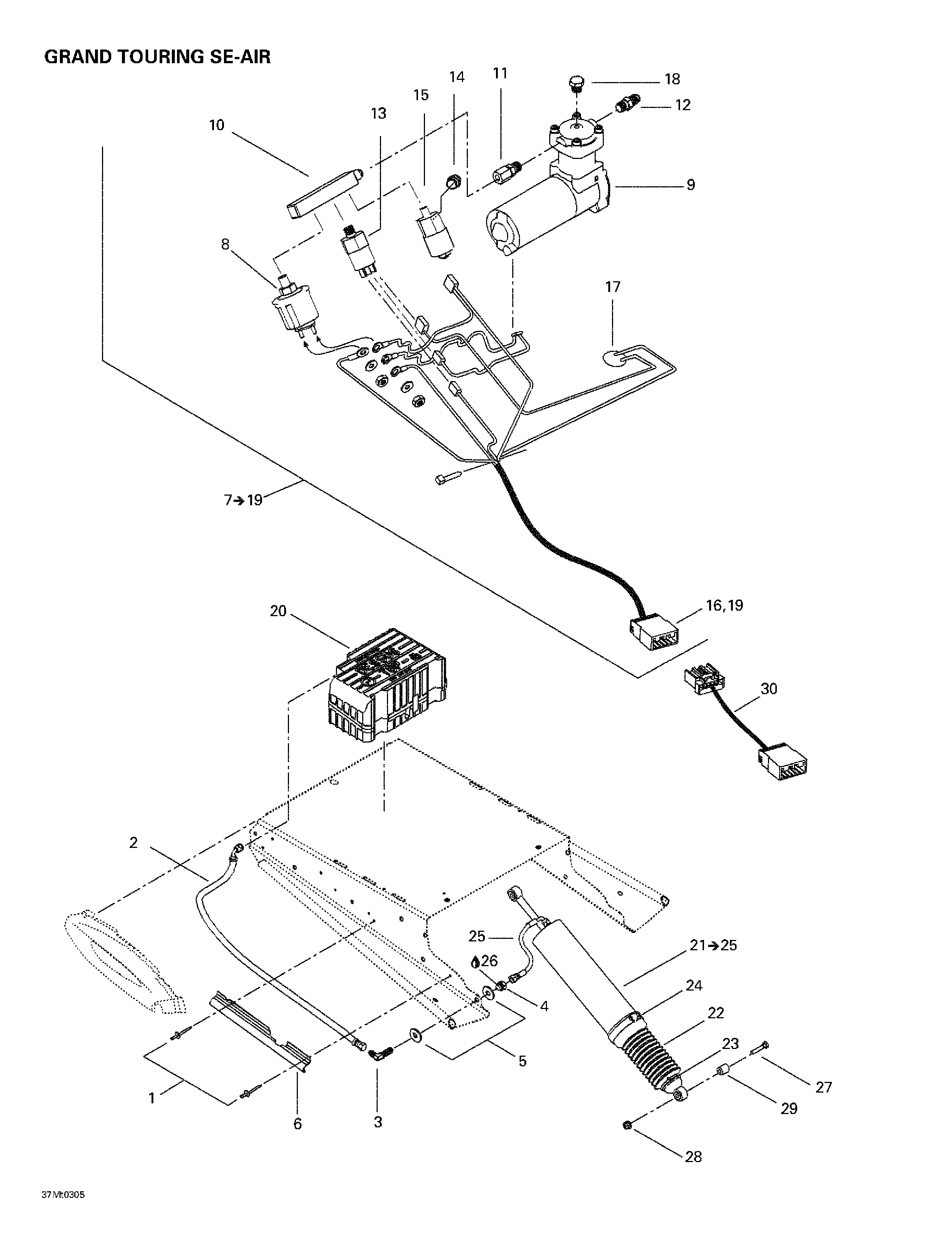

08- Air Shock And Compressor, Grand Touring (SE-Air) для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1390402200 Pop Rivet 3/16''. Grand Touring SE 800 SDI.Pop Rivet 3/16''. Grand Touring SE 800 SDI.
-
2503189758 Pneumatic Line. Grand Touring SE 800 SDI.Pneumatic Line. Grand Touring SE 800 SDI.
-
3503189756 Pneumatic Junction. Grand Touring SE 800 SDI.Pneumatic Junction. Grand Touring SE 800 SDI.
-
4503189846 Junction Nut. Grand Touring SE 800 SDI.Junction Nut. Grand Touring SE 800 SDI.
-
5503189264 Washer. Grand Touring SE 800 SDI.Washer. Grand Touring SE 800 SDI.
-
6503190318 Protector. Grand Touring SE 800 SDI.Protector. Grand Touring SE 800 SDI.
-
7503190274 Compressor Ass'y. Includes 7 - 19. Grand Touring SE 800 SDI.Compressor Ass'y. Includes 7 - 19. Grand Touring SE 800 SDI.
-
8415043600 Pressure Sender. Grand Touring SE 800 SDI.Pressure Sender. Grand Touring SE 800 SDI.
-
9503189096 Air Compressor. Grand Touring SE 800 SDI.Air Compressor. Grand Touring SE 800 SDI.
-
10503189761 Pneumatic Adaptor. Grand Touring SE 800 SDI.Pneumatic Adaptor. Grand Touring SE 800 SDI.
-
11503189762 Pneumatic Adaptor. Grand Touring SE 800 SDI.Pneumatic Adaptor. Grand Touring SE 800 SDI.
-
12414893900 Adaptor. Grand Touring SE 800 SDI.Adaptor. Grand Touring SE 800 SDI.
-
13503189212 Valve. Grand Touring SE 800 SDI.Valve. Grand Touring SE 800 SDI.
-
14415099200 Pressure Regulator. Grand Touring SE 800 SDI.Pressure Regulator. Grand Touring SE 800 SDI.
-
15503189824 Soleno‹d. Grand Touring SE 800 SDI.Soleno‹d. Grand Touring SE 800 SDI.
-
16515175232 Male Terminal. Grand Touring SE 800 SDI.Male Terminal. Grand Touring SE 800 SDI.
-
17503189825 Resettable Fuse. Grand Touring SE 800 SDI.Resettable Fuse. Grand Touring SE 800 SDI.
-
18504151921 PLug Taper. Grand Touring SE 800 SDI.PLug Taper. Grand Touring SE 800 SDI.
-
19515175662 Male Terminal Housing. Grand Touring SE 800 SDI.Male Terminal Housing. Grand Touring SE 800 SDI.
-
20503189760 Compressor Box. Grand Touring SE 800 SDI.Compressor Box. Grand Touring SE 800 SDI.
-
21415128448 Air Shock Ass'y. Includes 21 - 25. Grand Touring SE 800 SDI.Air Shock Ass'y. Includes 21 - 25. Grand Touring SE 800 SDI.
-
22570278300 Protection Boot. Grand Touring SE 800 SDI.Protection Boot. Grand Touring SE 800 SDI.
-
23414115200 Tie Rap 180 mm. Grand Touring SE 800 SDI.Tie Rap 180 mm. Grand Touring SE 800 SDI.
-
24408803300 Tridon Gear Clamp. Grand Touring SE 800 SDI.Tridon Gear Clamp. Grand Touring SE 800 SDI.
-
25503190267 Pneumatic Line. Grand Touring SE 800 SDI.Pneumatic Line. Grand Touring SE 800 SDI.
-
26293800060 Loctite 243, 10 ml. Grand Touring SE 800 SDI.Loctite 243, 10 ml. Grand Touring SE 800 SDI.
-
27207684044 Hex. Flanged Screw M8 x 40. Grand Touring SE 800 SDI.Hex. Flanged Screw M8 x 40. Grand Touring SE 800 SDI.
-
28233281414 Elastic Flanged Stop Nut M8. Grand Touring SE 800 SDI.Elastic Flanged Stop Nut M8. Grand Touring SE 800 SDI.
-
29414936000 Cushion. Grand Touring SE 800 SDI.Cushion. Grand Touring SE 800 SDI.
-
30515175875 Compressor Harness. Grand Touring SE 800 SDI.Compressor Harness. Grand Touring SE 800 SDI.
