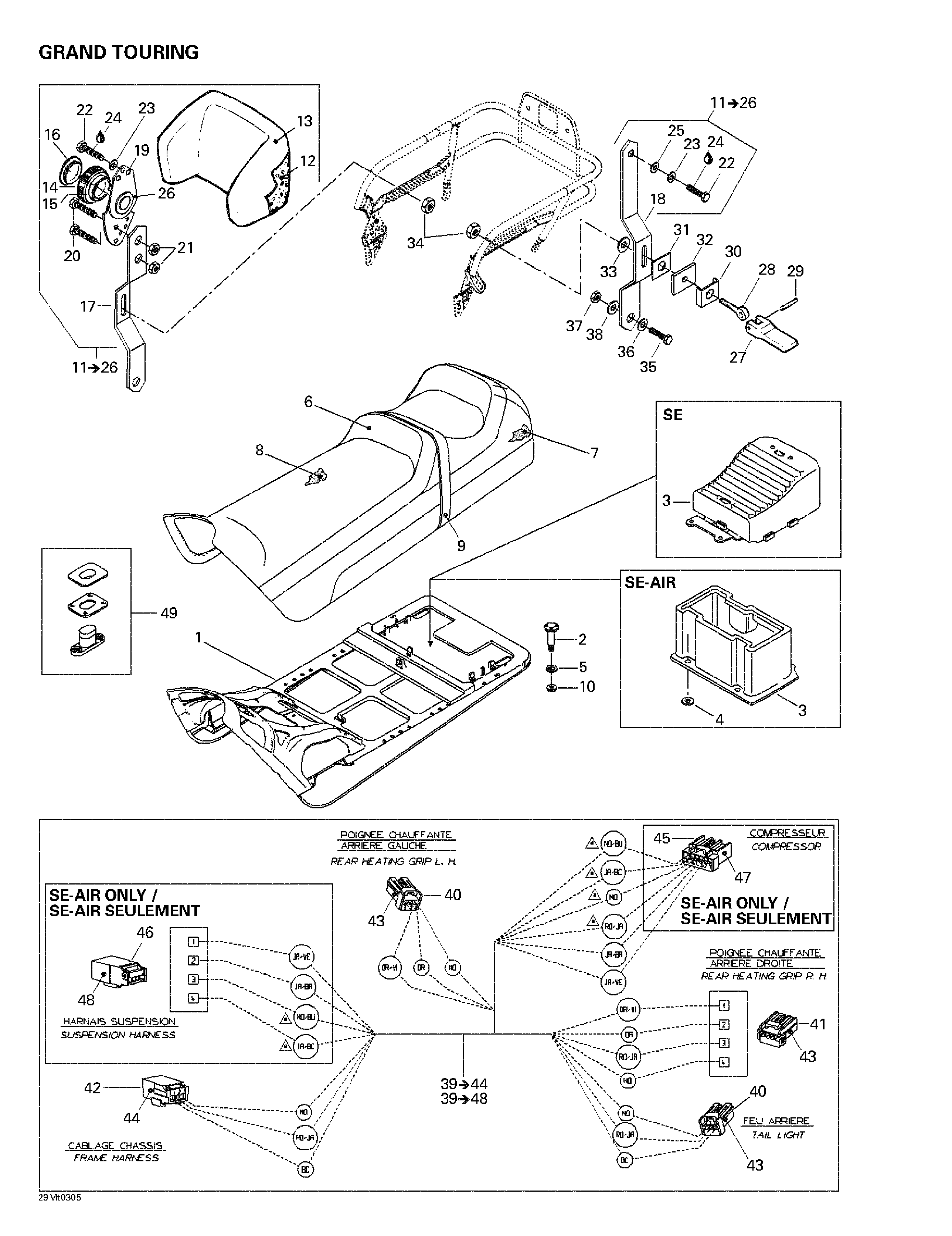

09- Seat (Grand Touring) для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1510003739 Sub-Seat (SE). Grand Touring SE 800 SDI.Sub-Seat (SE). Grand Touring SE 800 SDI.
-
510003972 Sub-Seat (SE-AIR). Grand Touring SE 800 SDI.Sub-Seat (SE-AIR). Grand Touring SE 800 SDI.
-
2732601221 > Bolt. Grand Touring SE 800 SDI.> Bolt. Grand Touring SE 800 SDI.
-
3510003751 Rear Trunk (SE). Grand Touring SE 800 SDI.Rear Trunk (SE). Grand Touring SE 800 SDI.
-
572106300 Rear Trunk (SE-AIR). Grand Touring SE 800 SDI.Rear Trunk (SE-AIR). Grand Touring SE 800 SDI.
-
4517297900 Flat Washer (SE-AIR). Grand Touring SE 800 SDI.Flat Washer (SE-AIR). Grand Touring SE 800 SDI.
-
5732610072 Push Nut. Grand Touring SE 800 SDI.Push Nut. Grand Touring SE 800 SDI.
-
6510004086 Seat Cover (Black) (SE). Grand Touring SE 800 SDI.Seat Cover (Black) (SE). Grand Touring SE 800 SDI.
-
510004092 Seat Cover (Autumn Red) (SE). Grand Touring SE 800 SDI.Seat Cover (Autumn Red) (SE). Grand Touring SE 800 SDI.
-
510004090 Seat Cover (Black) (SE-AIR). Grand Touring SE 800 SDI.Seat Cover (Black) (SE-AIR). Grand Touring SE 800 SDI.
-
510004088 Seat Cover (Autumn Red) (SE-AIR). Grand Touring SE 800 SDI.Seat Cover (Autumn Red) (SE-AIR). Grand Touring SE 800 SDI.
-
7510003741 Seat Foam (Side). Grand Touring SE 800 SDI.Seat Foam (Side). Grand Touring SE 800 SDI.
-
8510003752 Seat Foam (Top) (SE). Grand Touring SE 800 SDI.Seat Foam (Top) (SE). Grand Touring SE 800 SDI.
-
510003982 Seat Foam (Top) (SE-AIR). Grand Touring SE 800 SDI.Seat Foam (Top) (SE-AIR). Grand Touring SE 800 SDI.
-
9510003753 Seat Belt. Grand Touring SE 800 SDI.Seat Belt. Grand Touring SE 800 SDI.
-
10233261414 Elastic Flanged Stop Nut M6. Grand Touring SE 800 SDI.Elastic Flanged Stop Nut M6. Grand Touring SE 800 SDI.
-
11510004093 Backrest Ass'y. Includes 11 - 26. Grand Touring SE 800 SDI.Backrest Ass'y. Includes 11 - 26. Grand Touring SE 800 SDI.
-
12414821200 Backrest Foam. Grand Touring SE 800 SDI.Backrest Foam. Grand Touring SE 800 SDI.
-
13510004094 Backrest Cover. Grand Touring SE 800 SDI.Backrest Cover. Grand Touring SE 800 SDI.
-
14414820900 Tiller Handle. Grand Touring SE 800 SDI.Tiller Handle. Grand Touring SE 800 SDI.
-
15415015500 Strip. Grand Touring SE 800 SDI.Strip. Grand Touring SE 800 SDI.
-
16414821000 Cap. Grand Touring SE 800 SDI.Cap. Grand Touring SE 800 SDI.
-
17517296400 R.H. Arm. Grand Touring SE 800 SDI.R.H. Arm. Grand Touring SE 800 SDI.
-
18517296500 L.H. Arm. Grand Touring SE 800 SDI.L.H. Arm. Grand Touring SE 800 SDI.
-
19414813300 Recliner. Grand Touring SE 800 SDI.Recliner. Grand Touring SE 800 SDI.
-
20207182544 Hex Screw M8 x 25. Grand Touring SE 800 SDI.Hex Screw M8 x 25. Grand Touring SE 800 SDI.
-
21232581414 Elastic Stop Nut M8. Grand Touring SE 800 SDI.Elastic Stop Nut M8. Grand Touring SE 800 SDI.
-
22207182044 Hex Screw M8 x 20. Grand Touring SE 800 SDI.Hex Screw M8 x 20. Grand Touring SE 800 SDI.
-
23234181401 Lock Washer 8 mm. Grand Touring SE 800 SDI.Lock Washer 8 mm. Grand Touring SE 800 SDI.
-
24293800060 Loctite 243, 10 ml. Grand Touring SE 800 SDI.Loctite 243, 10 ml. Grand Touring SE 800 SDI.
-
25224081201 Flat Washer. Grand Touring SE 800 SDI.Flat Washer. Grand Touring SE 800 SDI.
-
26517250500 Cap. Grand Touring SE 800 SDI.Cap. Grand Touring SE 800 SDI.
-
27572038200 Lock Lever. Grand Touring SE 800 SDI.Lock Lever. Grand Touring SE 800 SDI.
-
28517250100 Eye Bolt. Grand Touring SE 800 SDI.Eye Bolt. Grand Touring SE 800 SDI.
-
29414821400 Pin. Grand Touring SE 800 SDI.Pin. Grand Touring SE 800 SDI.
-
30517257300 Guide. Grand Touring SE 800 SDI.Guide. Grand Touring SE 800 SDI.
-
31517251300 Spacer. Grand Touring SE 800 SDI.Spacer. Grand Touring SE 800 SDI.
-
32570027400 Rubber Shim. Grand Touring SE 800 SDI.Rubber Shim. Grand Touring SE 800 SDI.
-
33414819500 Washer. Grand Touring SE 800 SDI.Washer. Grand Touring SE 800 SDI.
-
34517250000 Nut. Grand Touring SE 800 SDI.Nut. Grand Touring SE 800 SDI.
-
35207182584 Screw M8 x 25. Grand Touring SE 800 SDI.Screw M8 x 25. Grand Touring SE 800 SDI.
-
36234081670 Washer 8 mm. Grand Touring SE 800 SDI.Washer 8 mm. Grand Touring SE 800 SDI.
-
37232581414 Elastic Stop Nut M8. Grand Touring SE 800 SDI.Elastic Stop Nut M8. Grand Touring SE 800 SDI.
-
38414819600 Washer. Grand Touring SE 800 SDI.Washer. Grand Touring SE 800 SDI.
-
40515175495 Female Terminal Housing (3 Circuits). Grand Touring SE 800 SDI.Female Terminal Housing (3 Circuits). Grand Touring SE 800 SDI.
-
42515175494 Male Terminal Housing (3 Circuits). Grand Touring SE 800 SDI.Male Terminal Housing (3 Circuits). Grand Touring SE 800 SDI.
-
43515175231 Female Terminal. Grand Touring SE 800 SDI.Female Terminal. Grand Touring SE 800 SDI.
-
44515175232 Male Terminal. Grand Touring SE 800 SDI.Male Terminal. Grand Touring SE 800 SDI.
-
45515175543 Female Terminal Housing (6. Legend SE 800 SDI.Female Terminal Housing (6. Legend SE 800 SDI.
-
46515175846 Male Terminal Housing (4. Legend SE 800 SDI.Male Terminal Housing (4. Legend SE 800 SDI.
-
47515175231 Female Terminal. Legend SE 800 SDI.Female Terminal. Legend SE 800 SDI.
-
48515175232 Male Terminal. Legend SE 800 SDI.Male Terminal. Legend SE 800 SDI.
-
49414728000 Seat Buckle. Grand Touring SE 800 SDI.Seat Buckle. Grand Touring SE 800 SDI.
