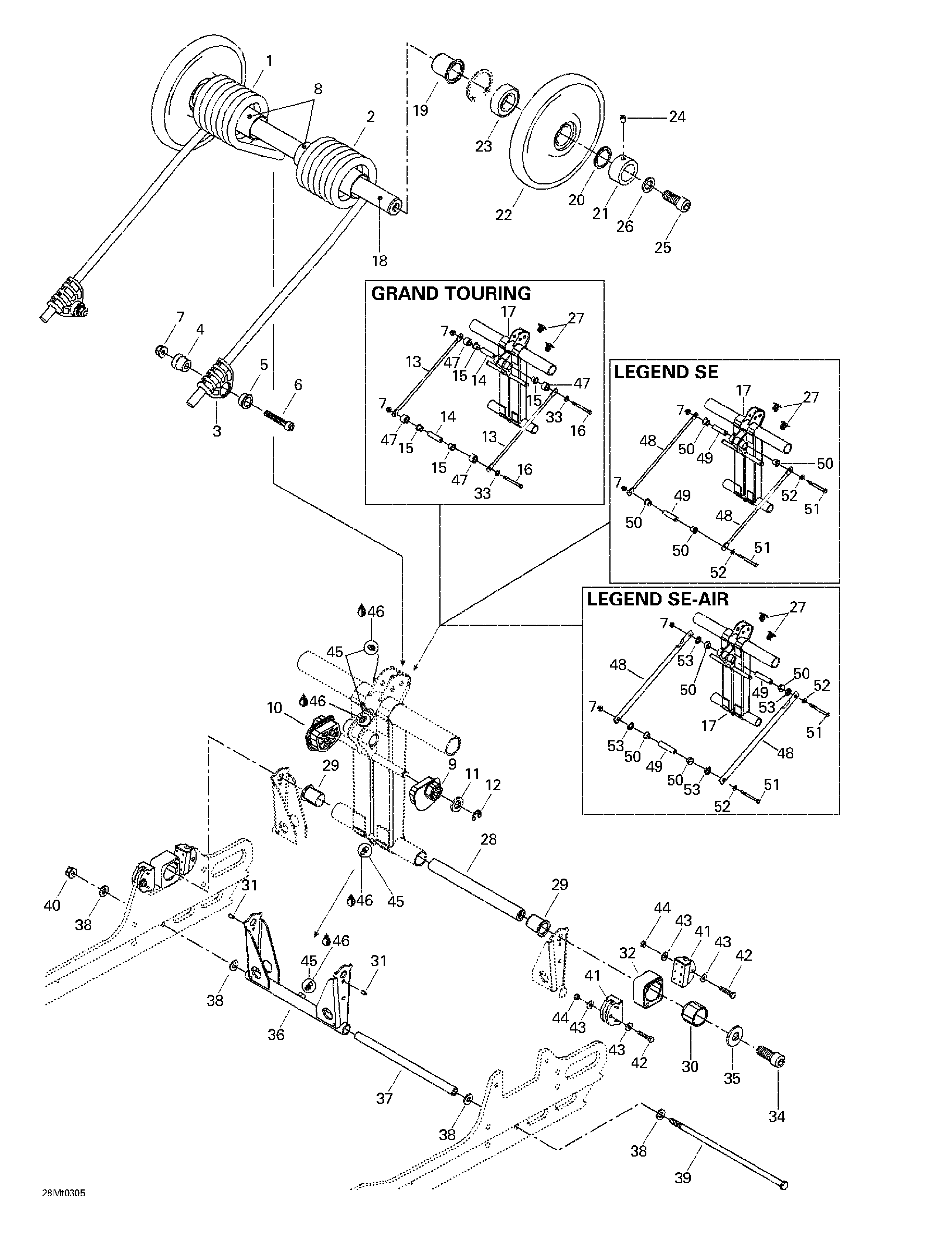

08- Rear Arm для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1503189902 R.H. Spring (SE)R.H. Spring (SE)
-
503189522 R.H. Spring (SE-AIR). Grand Touring SE 800 SDI.R.H. Spring (SE-AIR). Grand Touring SE 800 SDI.
-
503189947 R.H. Spring (SE-AIR). Legend SE 800 SDI.R.H. Spring (SE-AIR). Legend SE 800 SDI.
-
2503189904 L.H. Spring (SE)L.H. Spring (SE)
-
503189524 L.H. Spring (SE-AIR). Grand Touring SE 800 SDI.L.H. Spring (SE-AIR). Grand Touring SE 800 SDI.
-
503189948 L.H. Spring (SE-AIR). Legend SE 800 SDI.L.H. Spring (SE-AIR). Legend SE 800 SDI.
-
3503189657 Spring SupportSpring Support
-
4503188934 Axle-Spring GuideAxle-Spring Guide
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
7233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503190023 L.H. Cam AdjusterL.H. Cam Adjuster
-
10503190022 R.H. Cam AdjusterR.H. Cam Adjuster
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 CirclipCirclip
-
13503190111 Tie Rod. Grand Touring SE 800 SDI.Tie Rod. Grand Touring SE 800 SDI.
-
14503190113 Axle bar. Grand Touring SE 800 SDI.Axle bar. Grand Touring SE 800 SDI.
-
15506150200 Cushion. Grand Touring SE 800 SDI.Cushion. Grand Touring SE 800 SDI.
-
16230083044 Hex screw M8 x 130. Grand Touring SE 800 SDI.Hex screw M8 x 130. Grand Touring SE 800 SDI.
-
17503190110 Rear armRear arm
-
18503189412 Upper axleUpper axle
-
19503189288 CushionCushion
-
20503189146 Axle springAxle spring
-
21503189147 Retainer ringRetainer ring
-
22503190269 Wheel 165 ass'y. Includes 22 - 23.Wheel 165 ass'y. Includes 22 - 23.
-
23405404500 Ball bearing 6205Ball bearing 6205
-
24206260844 Socket head set screw M6 x 8Socket head set screw M6 x 8
-
25205523544 Socket screw M12 x 35 (Scotch Grip)Socket screw M12 x 35 (Scotch Grip)
-
26503189276 WasherWasher
-
27414644300 DartDart
-
28503189413 Rear lower axleRear lower axle
-
29503189286 CushionCushion
-
30503189488 Block guideBlock guide
-
31250400005 Dowel pin 4 x 8 mmDowel pin 4 x 8 mm
-
32503189152 L.h. blockL.h. block
-
503189170 R.h. blockR.h. block
-
33224081201 Flat washer. Grand Touring SE 800 SDI.Flat washer. Grand Touring SE 800 SDI.
-
34205523544 Socket screw M12 x 35 (scotch grip)Socket screw M12 x 35 (scotch grip)
-
35503189276 Flat washer 12 mmFlat washer 12 mm
-
36503189819 Pivot armPivot arm
-
37503189156 Pivot arm axlePivot arm axle
-
38503189157 WasherWasher
-
39732601198 Long bolt M8Long bolt M8
-
40233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
41503189608 Block stopperBlock stopper
-
42207053044 Hex screw M5 x 30Hex screw M5 x 30
-
43250200016 Flat washer 5 mmFlat washer 5 mm
-
44232551414 Elastic stop nut M5Elastic stop nut M5
-
45408200700 Grease fittingGrease fitting
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
47503190114 Spacer. Grand Touring SE 800 SDI.Spacer. Grand Touring SE 800 SDI.
-
48503189726 Throttle Rod (SE). Legend SE 800 SDI.Throttle Rod (SE). Legend SE 800 SDI.
-
503190200 Throttle Rod (SE-AIR). Legend SE 800 SDI.Throttle Rod (SE-AIR). Legend SE 800 SDI.
-
49503189815 Axle-Bar (SE). Legend SE 800 SDI.Axle-Bar (SE). Legend SE 800 SDI.
-
503190162 Axle-Bar (SE-AIR). Legend SE 800 SDI.Axle-Bar (SE-AIR). Legend SE 800 SDI.
-
50506150200 Swivel Bushing. Legend SE 800 SDI.Swivel Bushing. Legend SE 800 SDI.
-
51207088544 Hex. Screw M8 x 85 (SE). Legend SE 800 SDI.Hex. Screw M8 x 85 (SE). Legend SE 800 SDI.
-
230080044 Hex. Screw M8 x 100 (SE-AIR). Legend SE 800 SDI.Hex. Screw M8 x 100 (SE-AIR). Legend SE 800 SDI.
-
52224081201 Flat Washer. Legend SE 800 SDI.Flat Washer. Legend SE 800 SDI.
-
53503190161 Spacer (SE-AIR). Legend SE 800 SDI.Spacer (SE-AIR). Legend SE 800 SDI.
