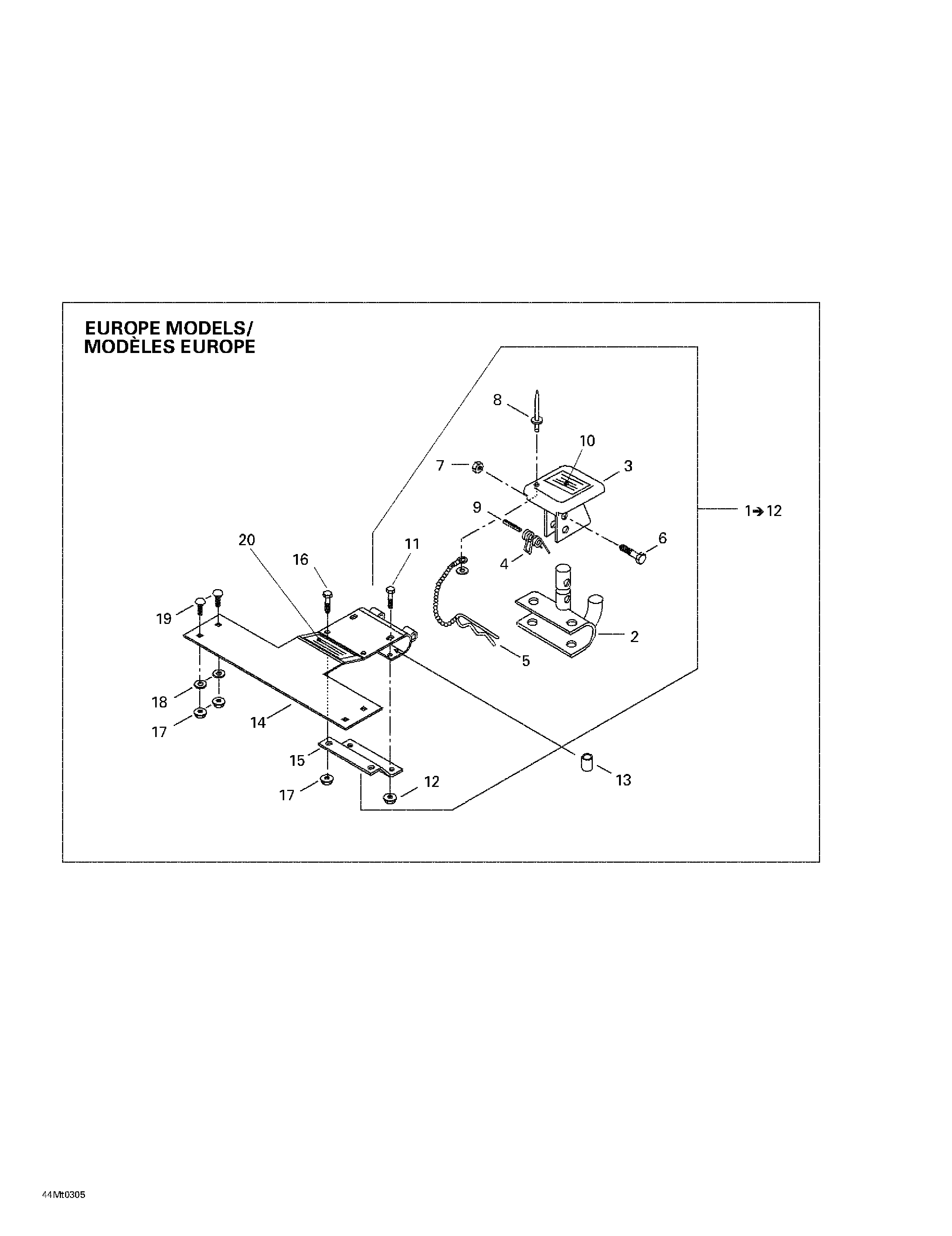

09- Hitch (Europe) для BRP Ski-Doo Legend SE 800 SDI - 2003
-
№АртикулНазвание
-
1861778700 Hitch ass'y Kit (EUROPE ONLY). Includes 1 - 12. Grand Touring SE 800 SDI.Hitch ass'y Kit (EUROPE ONLY). Includes 1 - 12. Grand Touring SE 800 SDI.
-
2517199300 Hitch. Grand Touring SE 800 SDI.Hitch. Grand Touring SE 800 SDI.
-
3517152700 Hitch protector. Grand Touring SE 800 SDI.Hitch protector. Grand Touring SE 800 SDI.
-
4517152800 Spring. Grand Touring SE 800 SDI.Spring. Grand Touring SE 800 SDI.
-
5114045200 Hair pin. Grand Touring SE 800 SDI.Hair pin. Grand Touring SE 800 SDI.
-
6207063044 Hex screw M6 x 30. Grand Touring SE 800 SDI.Hex screw M6 x 30. Grand Touring SE 800 SDI.
-
7232561414 Hex elastic nut M6. Grand Touring SE 800 SDI.Hex elastic nut M6. Grand Touring SE 800 SDI.
-
8390409400 Pop rivet 5/32''. Grand Touring SE 800 SDI.Pop rivet 5/32''. Grand Touring SE 800 SDI.
-
9732804000 Spring pin M3 x 24. Grand Touring SE 800 SDI.Spring pin M3 x 24. Grand Touring SE 800 SDI.
-
10516001243 Hitch security label. Grand Touring SE 800 SDI.Hitch security label. Grand Touring SE 800 SDI.
-
11207065044 Hex screw M6 x 50. Grand Touring SE 800 SDI.Hex screw M6 x 50. Grand Touring SE 800 SDI.
-
12233261414 Hex flanged elastic nut M6. Grand Touring SE 800 SDI.Hex flanged elastic nut M6. Grand Touring SE 800 SDI.
-
13517191700 Spacer. Grand Touring SE 800 SDI.Spacer. Grand Touring SE 800 SDI.
-
14511000217 Fixation. Grand Touring SE 800 SDI.Fixation. Grand Touring SE 800 SDI.
-
15517223500 Reinforcement. Grand Touring SE 800 SDI.Reinforcement. Grand Touring SE 800 SDI.
-
16207162044 Hex screw M6 x 20. Grand Touring SE 800 SDI.Hex screw M6 x 20. Grand Touring SE 800 SDI.
-
17233261414 Hex flanged elastic nut M6. Grand Touring SE 800 SDI.Hex flanged elastic nut M6. Grand Touring SE 800 SDI.
-
18224061201 Flat washer. Grand Touring SE 800 SDI.Flat washer. Grand Touring SE 800 SDI.
-
19207762044 Carriage bolt M6 x 20. Grand Touring SE 800 SDI.Carriage bolt M6 x 20. Grand Touring SE 800 SDI.
-
20516001709 Hitch security label (Europe). Grand Touring SE 800 SDI.Hitch security label (Europe). Grand Touring SE 800 SDI.
